FassadenClip®

A secret-fix solution that enhances timber’s durability through increased ventilation; designed for open rainscreen cladding arrangements using Russwood’s RW014 profile.

SIHGA FassadenClip®
FassadenClip®

1 – FassadenClip®

A mock up animated photo of SIHGA FassadenClip® being used on a piece of timber.

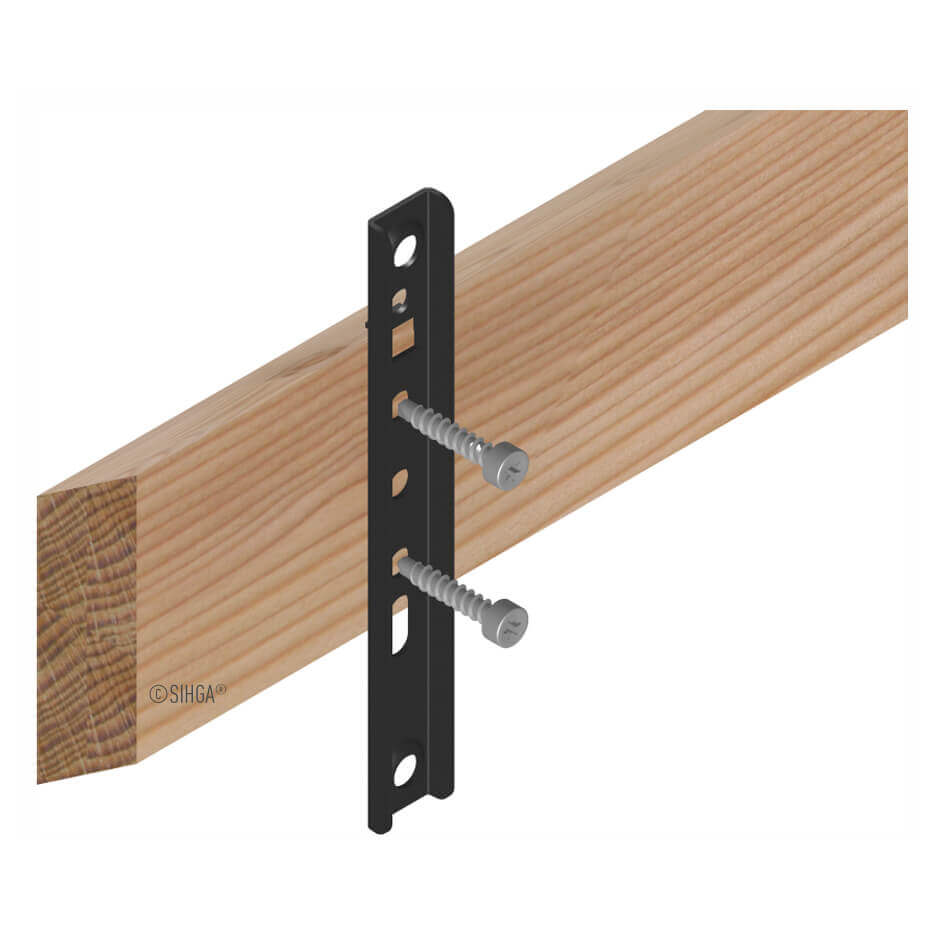

2 – Using the integrated alignment lug, fasten the FassadenClip® to the back of the board using the enclosed Bohr-Fix screws

2 – Using the integrated alignment lug, fasten the FassadenClip® to the back of the board using the enclosed Bohr-Fix screws

A mock up animated image of SIHGA FassadenClip® on two pieces of timber.
3 – Subsequent boards are fixed at an offset

3 – Subsequent boards are fixed at an offset

A close up animated photo of SIHGA FassadenClip®
4 – Boards are fastened to the battens with enclosed L-BohrFix® FB screws

Justifix supports with Symbiofix® aluminium rail system, Russwood Thermopine decking with Senofix®

A close up animated image of SIHGA FassadenClip®
5 – Optimum gap width is automatically achieved by the enclosed L-BohrFix®FB screws

Justifix supports with Symbiofix® aluminium rail system, Russwood Thermopine decking with Senofix®

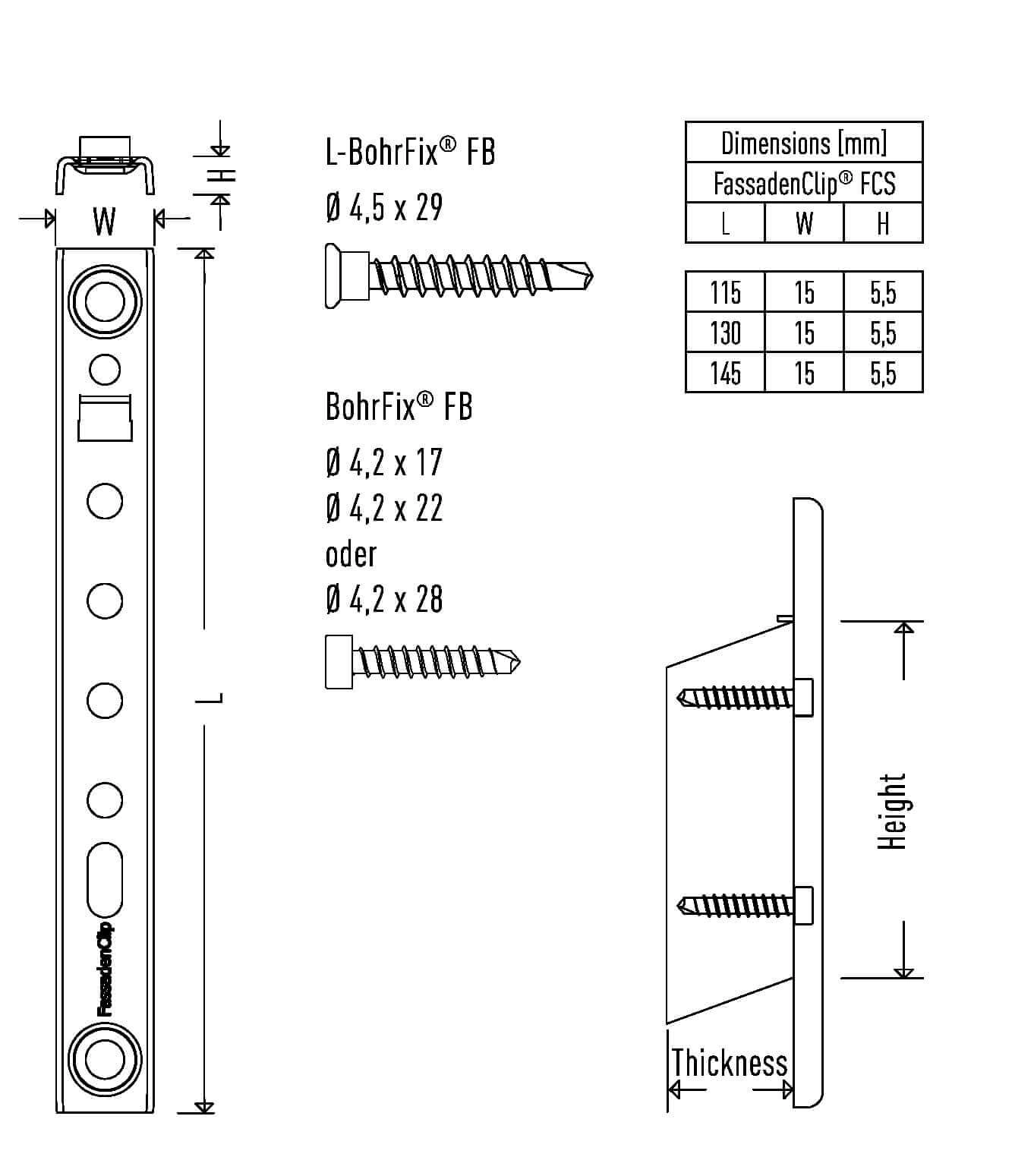

A sketch of SIHGA FassadenClip®
FassadenClip®

Justifix supports with Symbiofix® aluminium rail system, Russwood Thermopine decking with Senofix®

The FassadenClip® is an innovative solution for architects looking to specify a secret-fix system for cladding. It has been developed specifically for the open rainscreen profile RW014 in widths from 57mm up to 95mm. With an open shadow gap, the FassadenClip® provides a clean and contemporary fixing option.

The FassadenClip® creates a free flow of air between the back face of the cladding board and the vertical batten, enhancing ventilation and thereby improving the performance of timber. By secret fixing, the front faces of the façade boards are left fully intact which enhances longevity of a coated finish.

The FassadenClip® fixing is available in 3 sizes, making it suitable for boards measuring 57-95mm wide. FassadenClip® is fixed using precision engineered L-BohrFix®FB stainless-steel screws which are supplied together with the clip. The head geometry of the L-BohrFix®FB screw permits easy fastening resulting in 8mm gaps between boards recommended for sufficient ventilation.

Buy FassadenClip®

Summary

  • Enhances durability through increased ventilation
  • For refined aesthetic secret-fixing of open rainscreen RW014 profiles in overall width of 57-95 mm
  • 3 clip sizes available depending on width of board selected

Full technical information available on request. Please get in touch for assistance with detailing and installation advice, and quantifying of the system requirements.
