Abodo® Vulcan
Vertical Grain exterior cladding
Abodo Vulcan Vertical Grain (VG) is a high-performance cladding that delivers on both sustainability and appearance. It has a refined straight grain, is free from knots and comes in standard and custom dimensions.

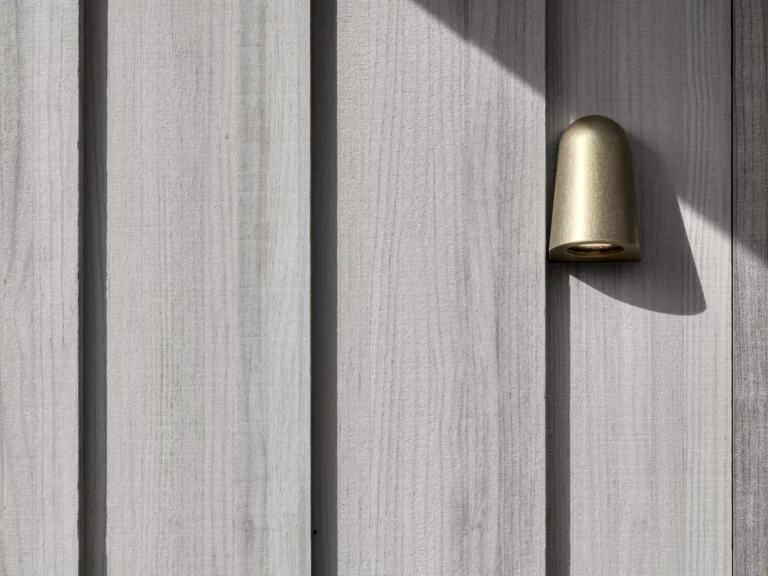

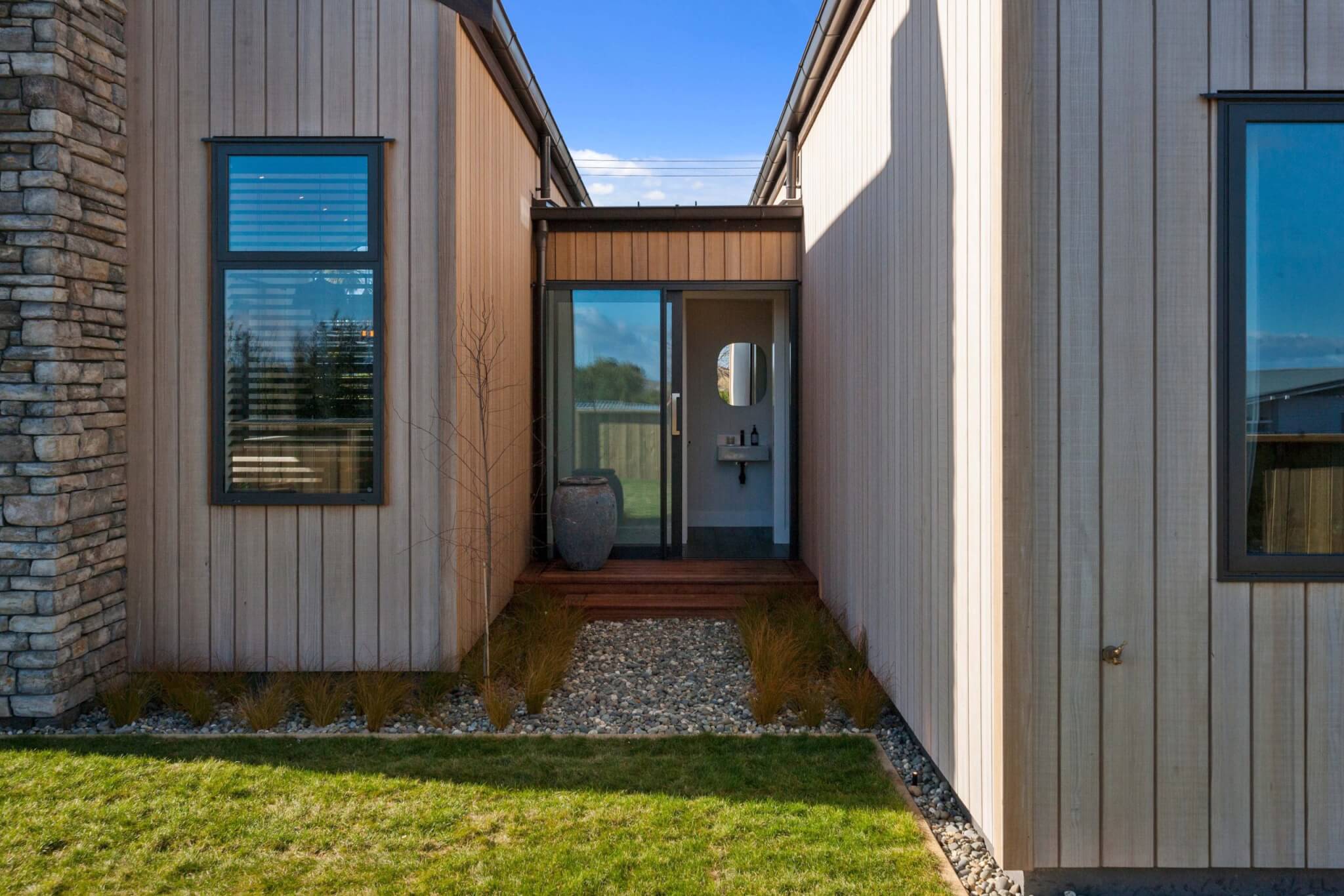

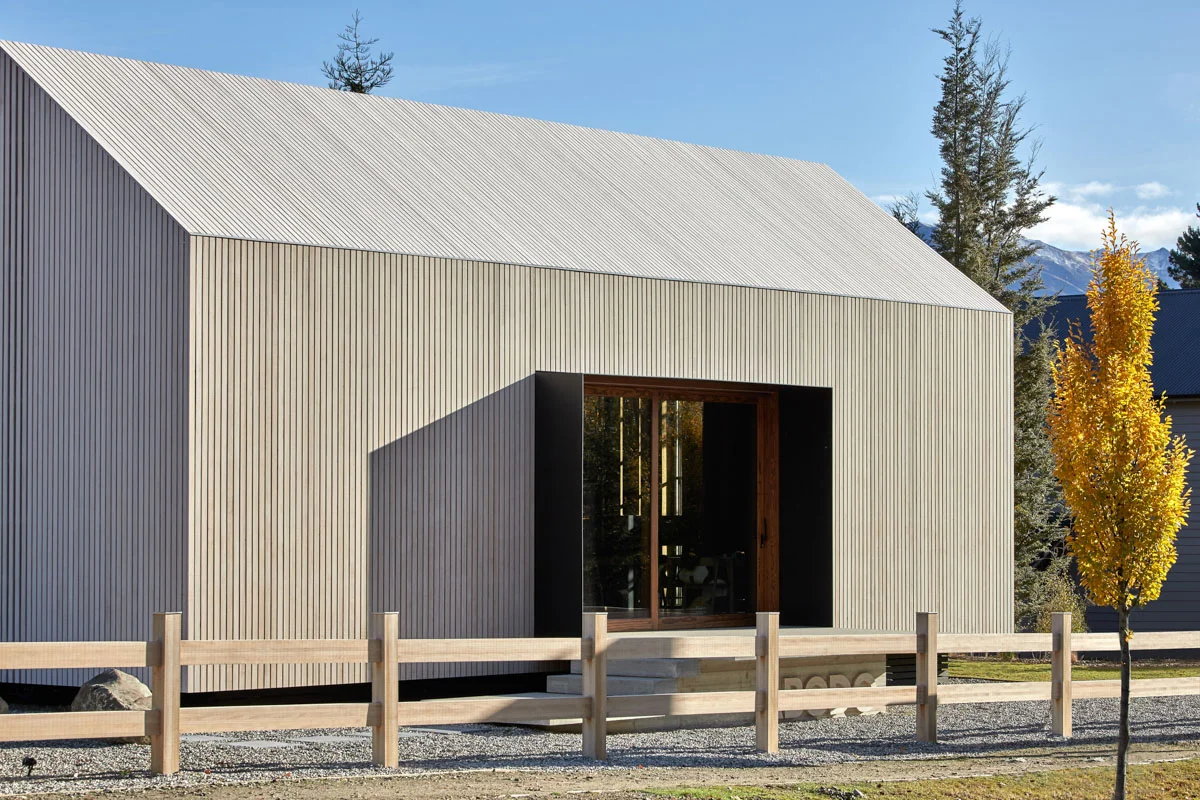

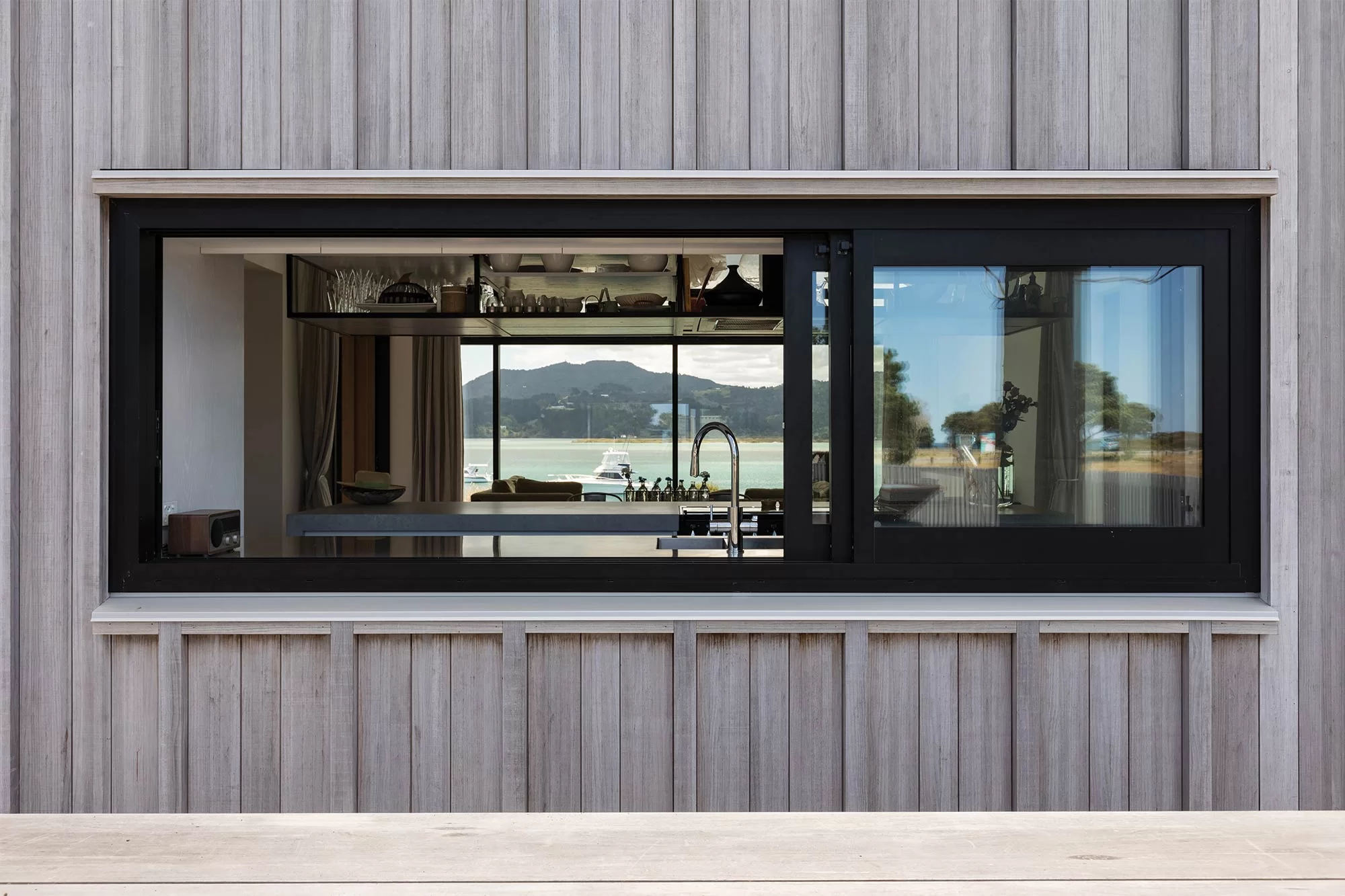

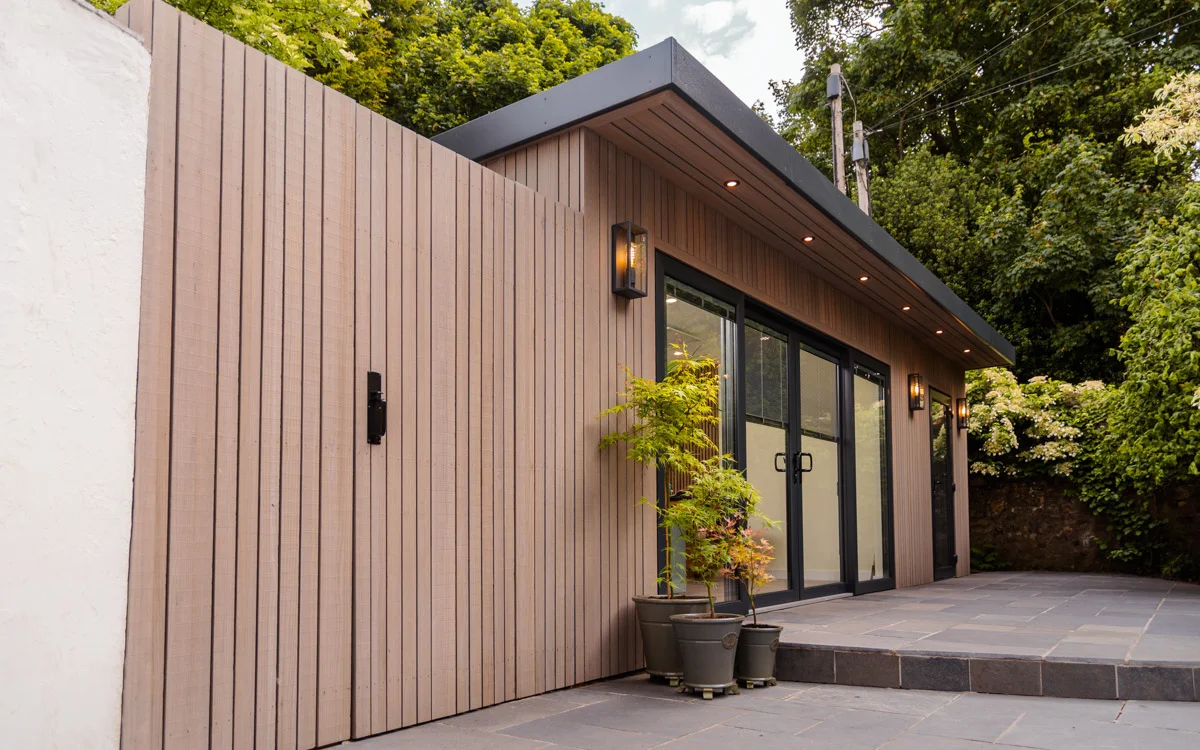

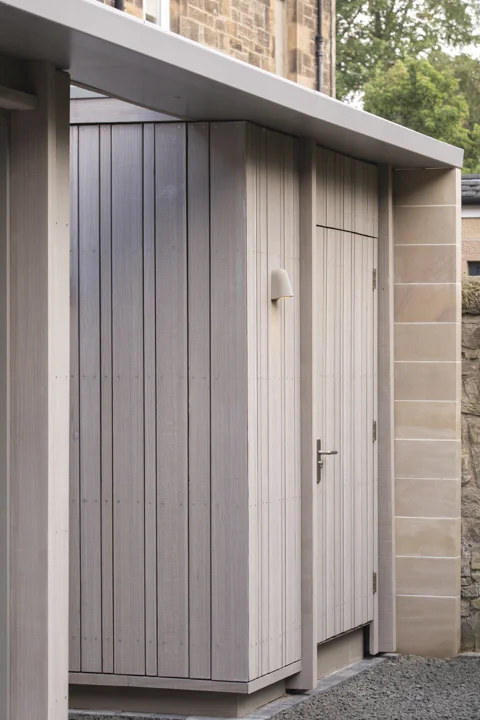

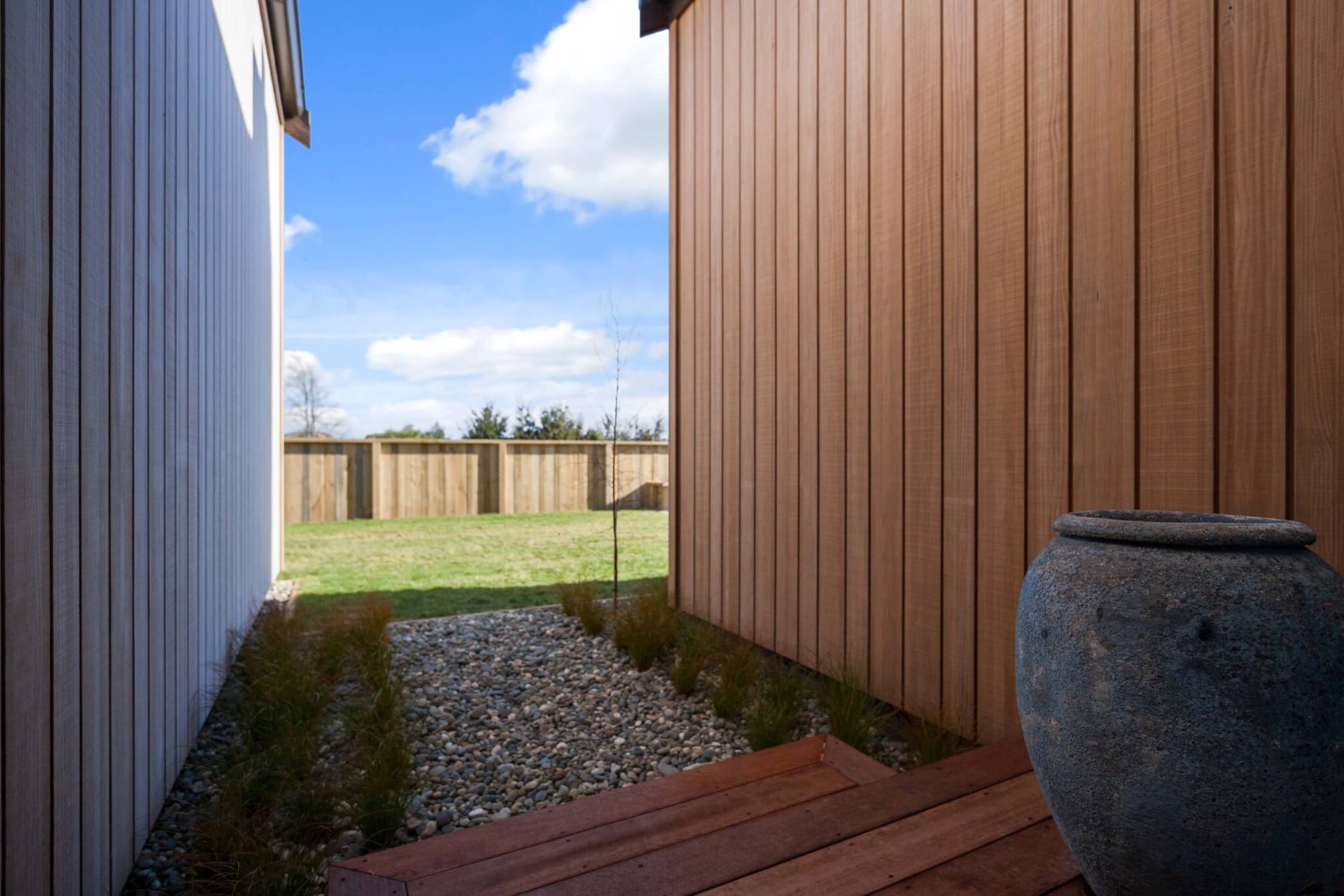

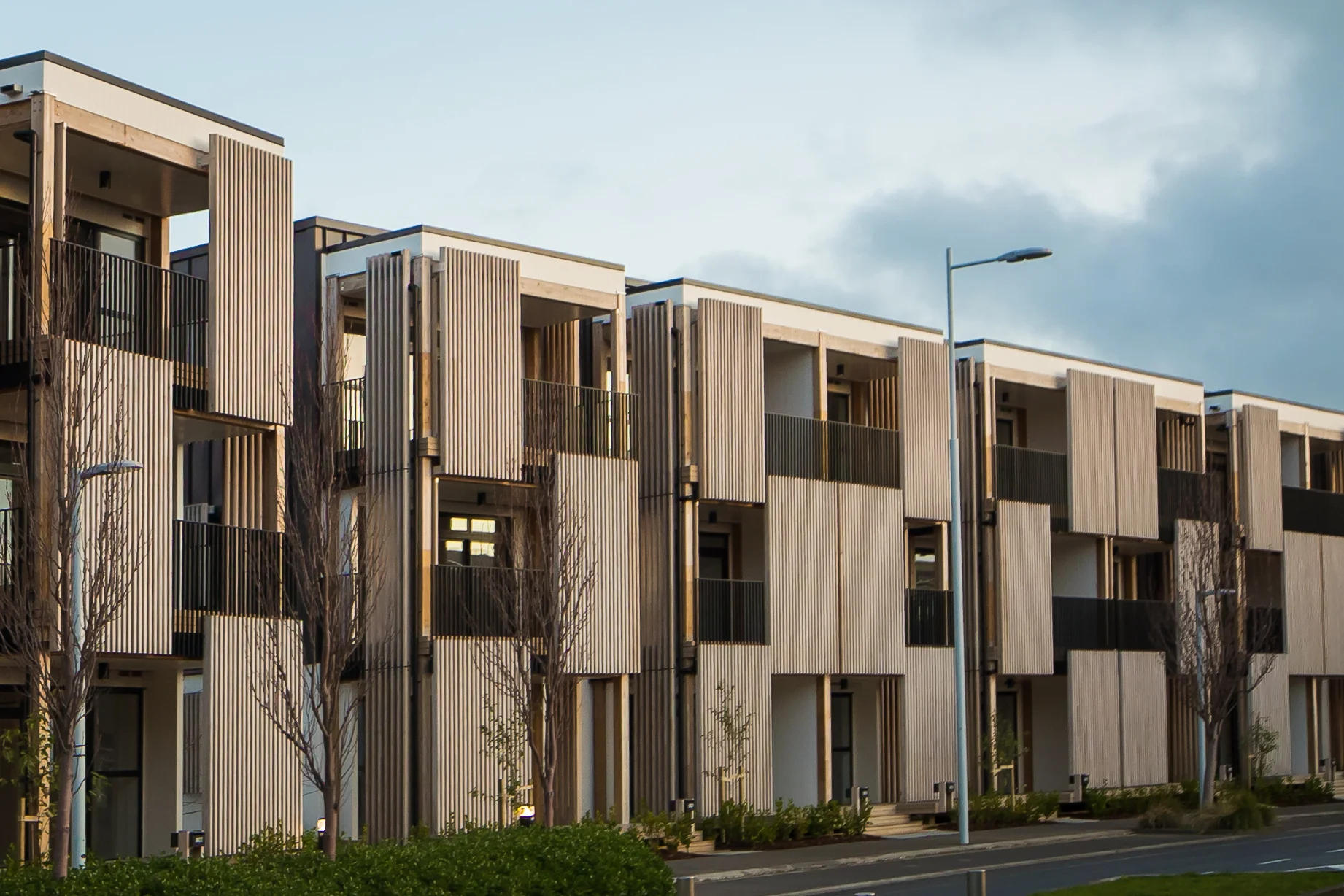

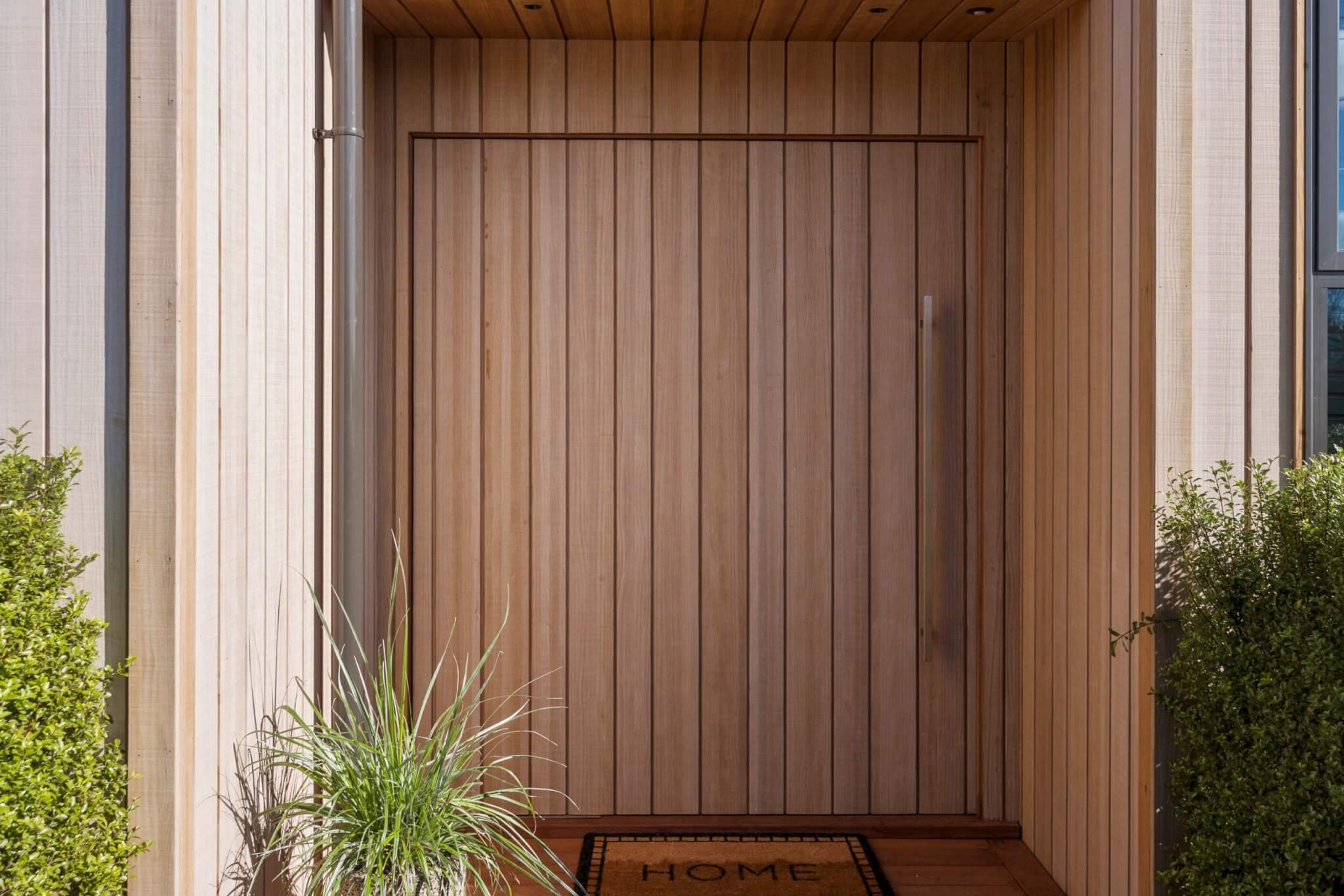

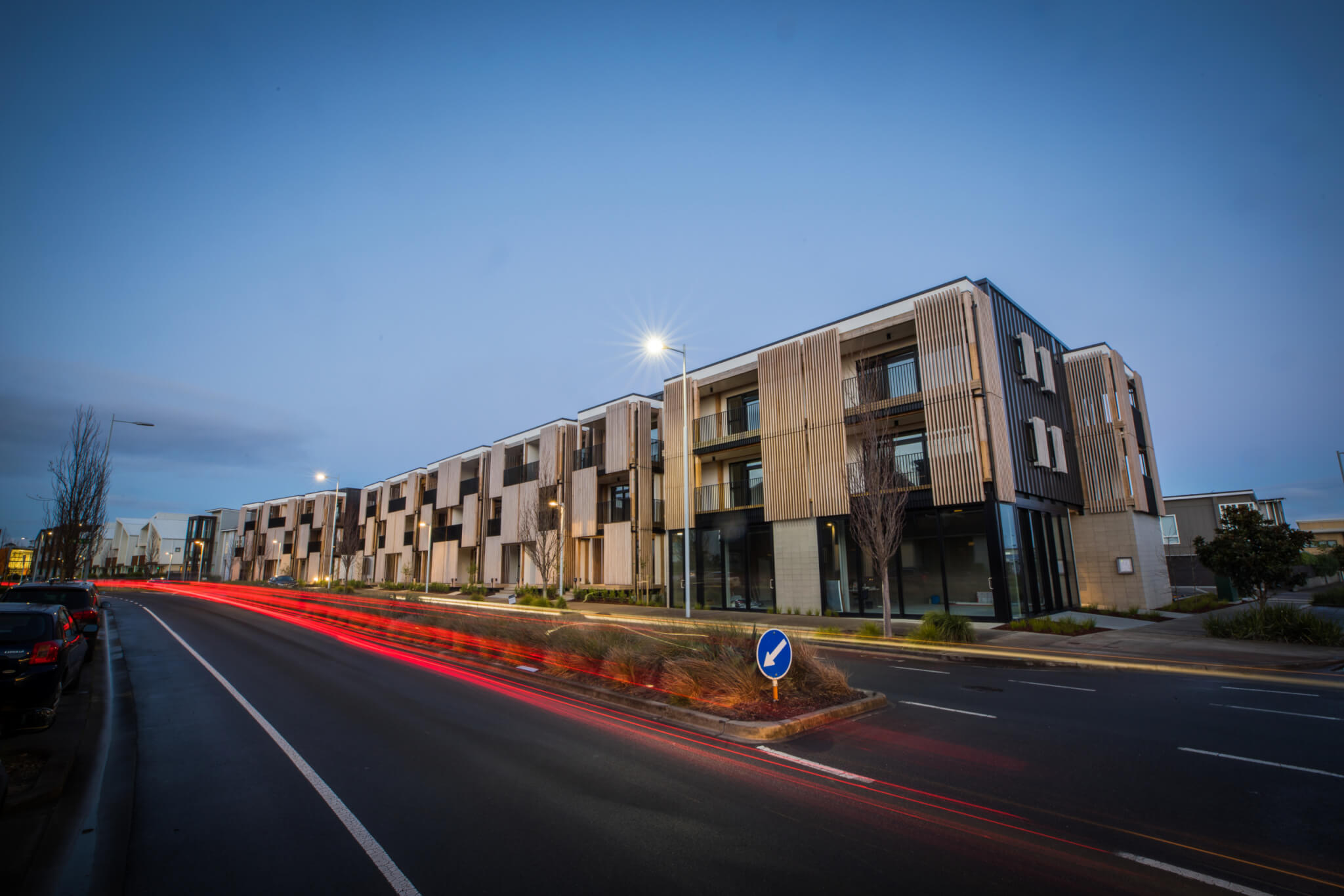

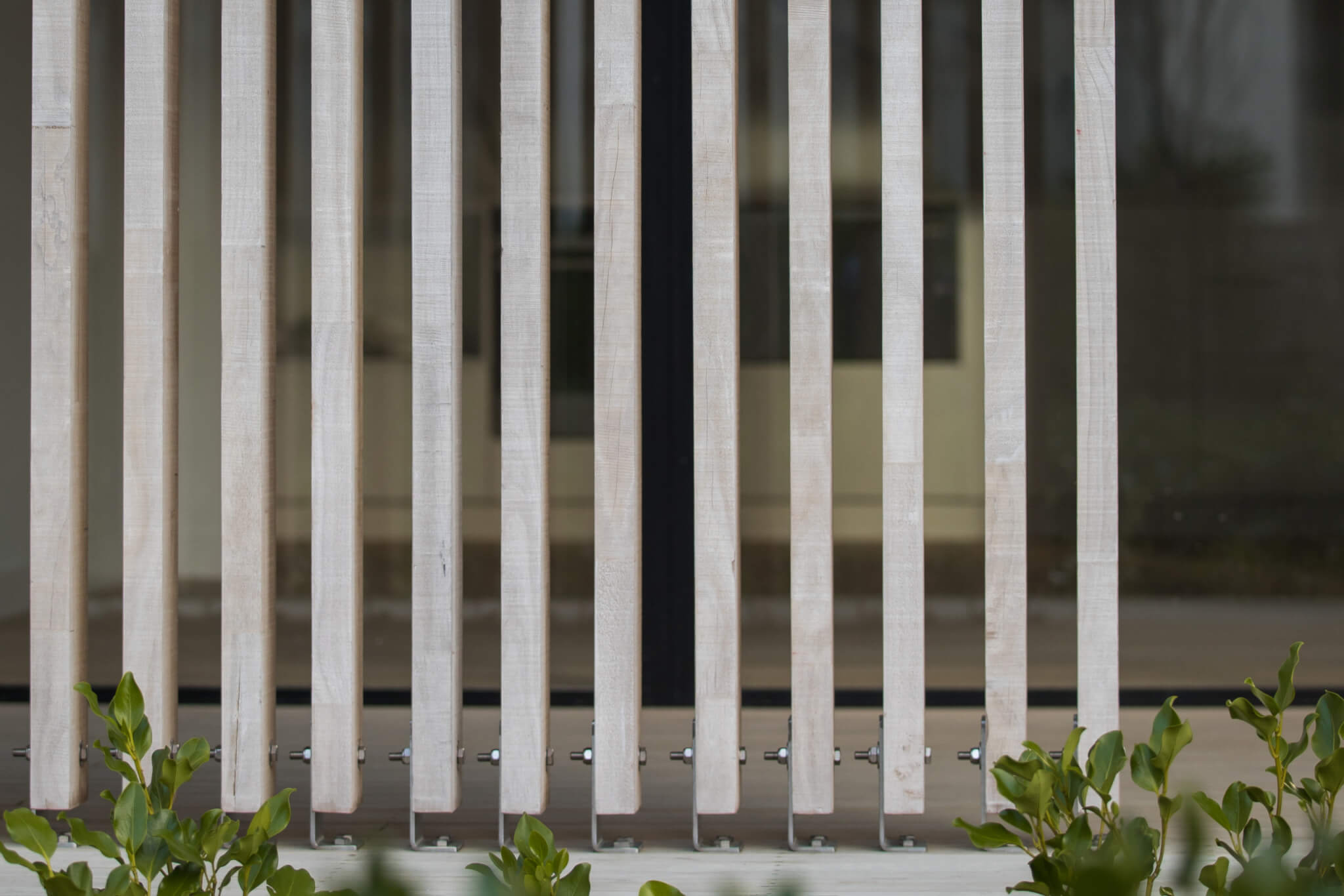

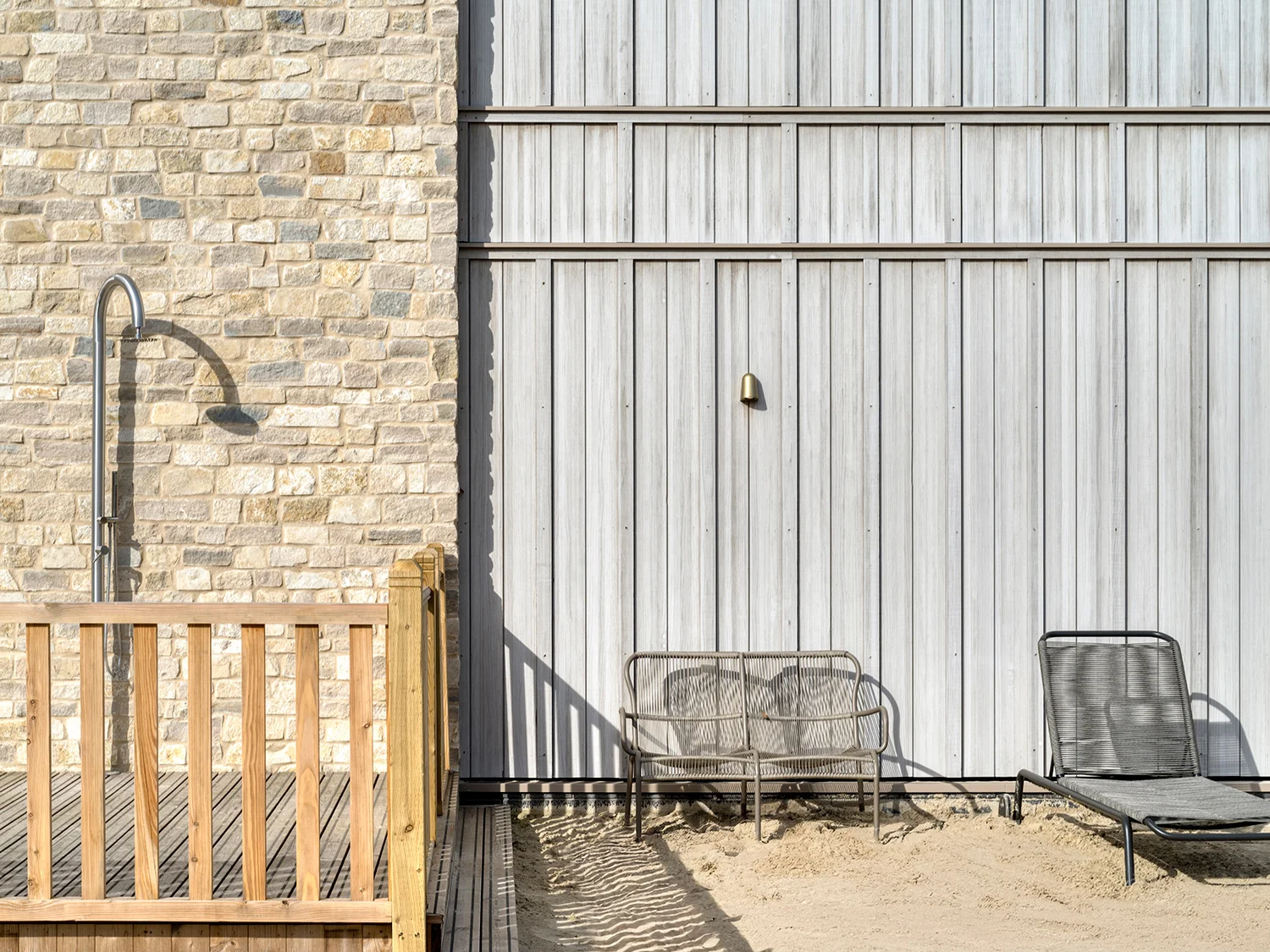

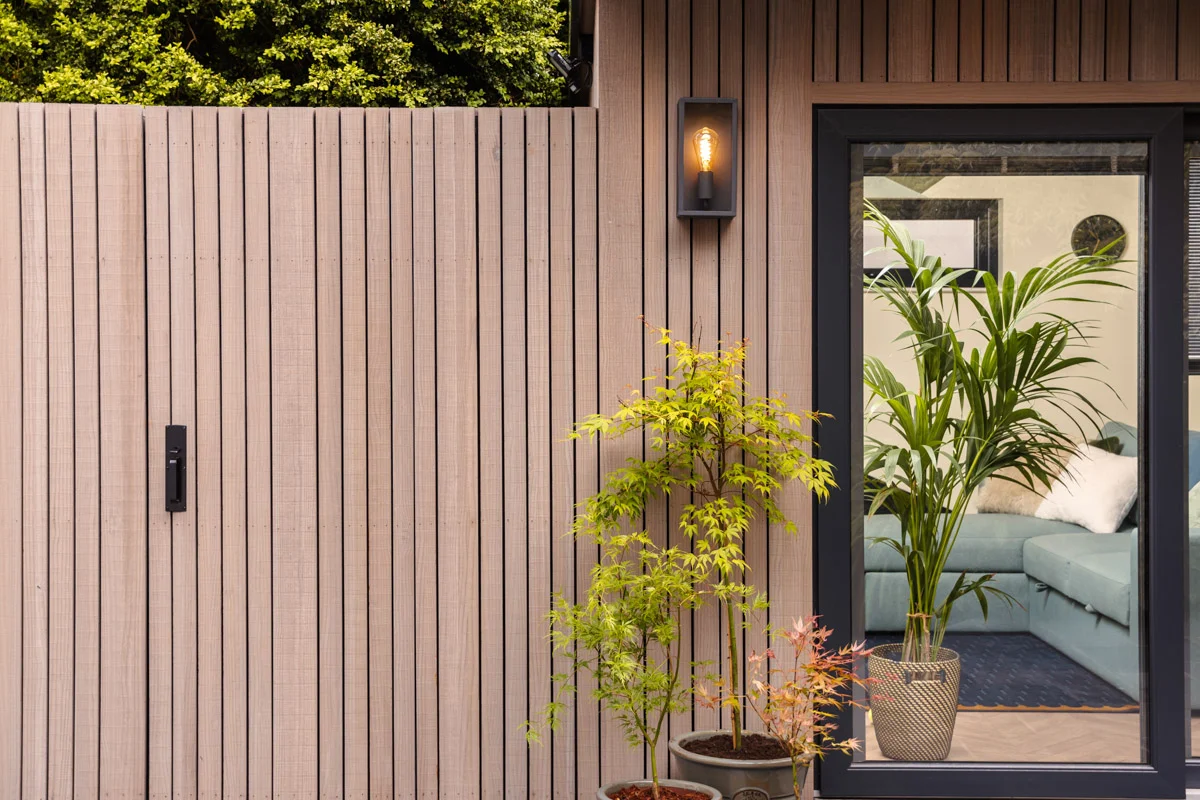

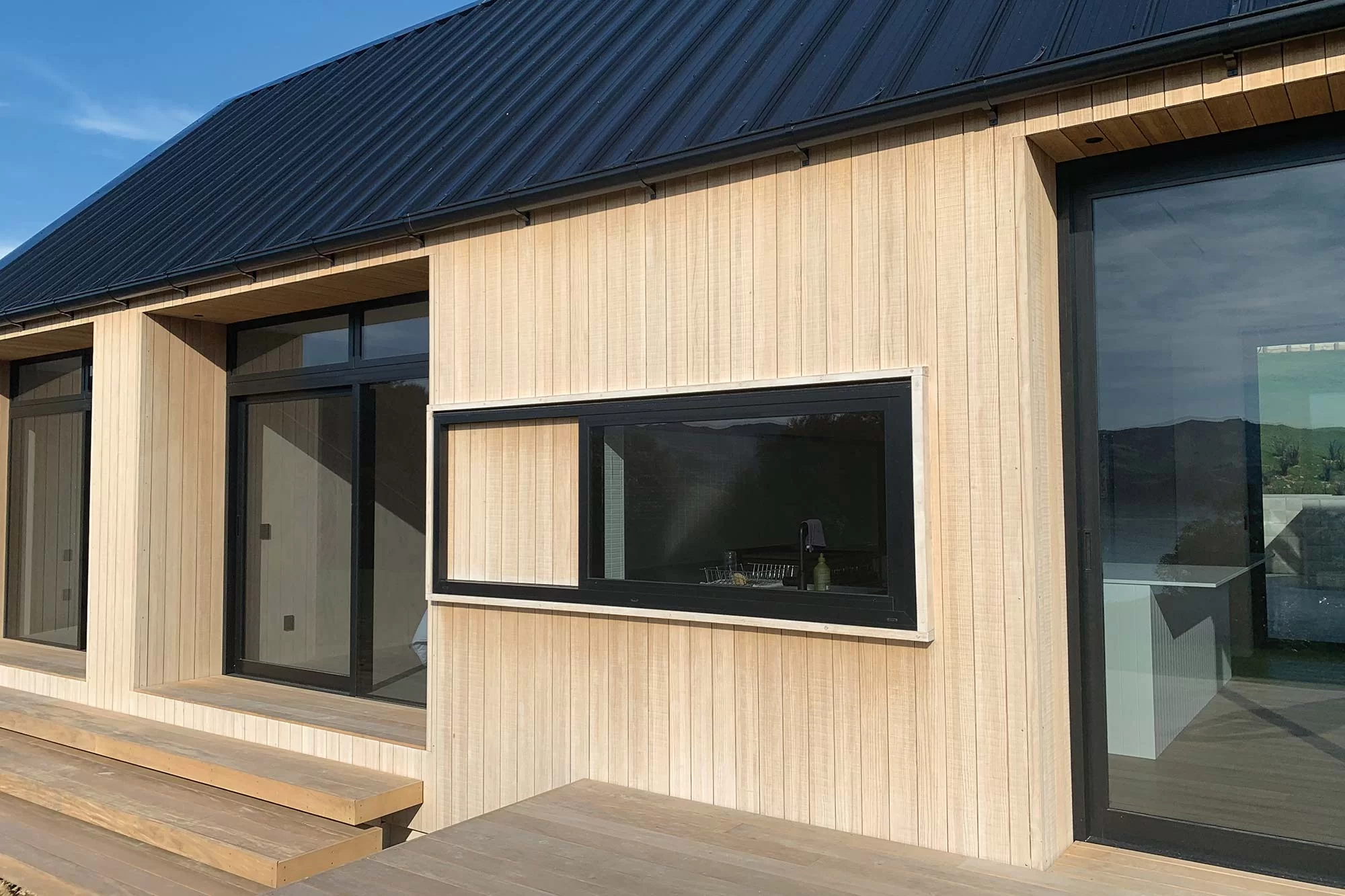

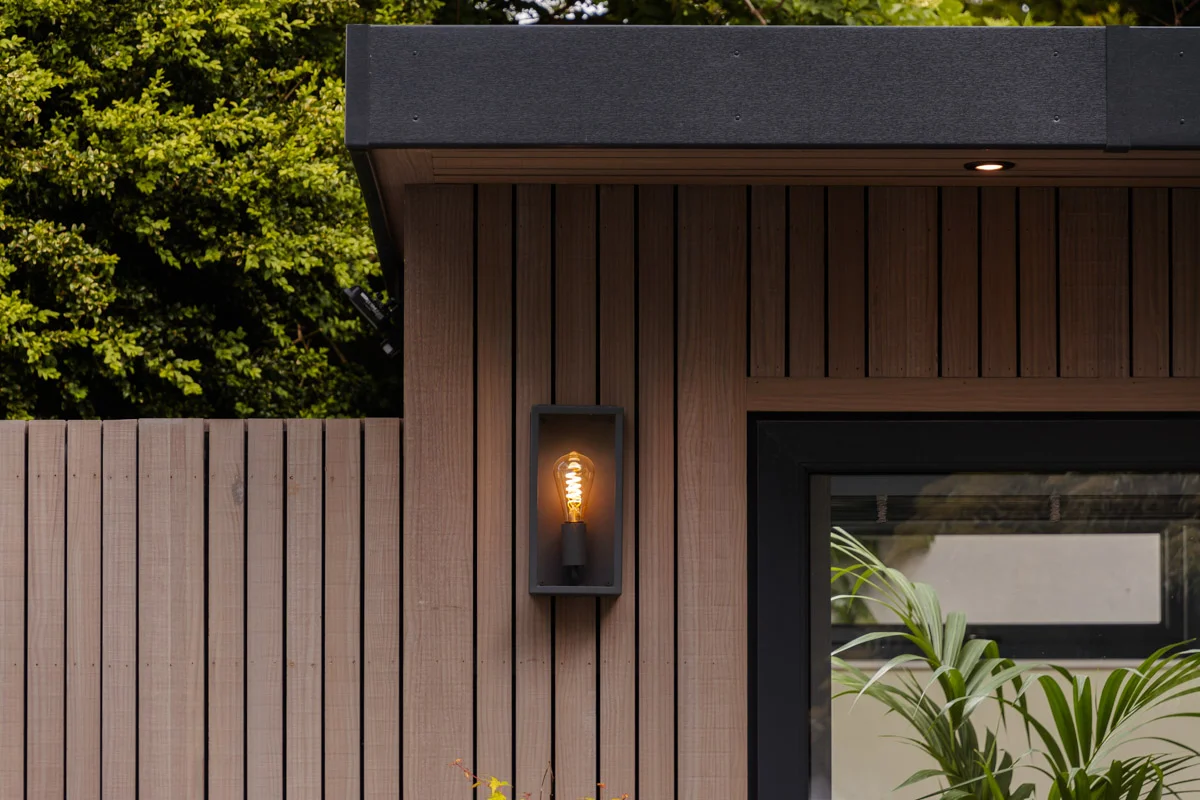

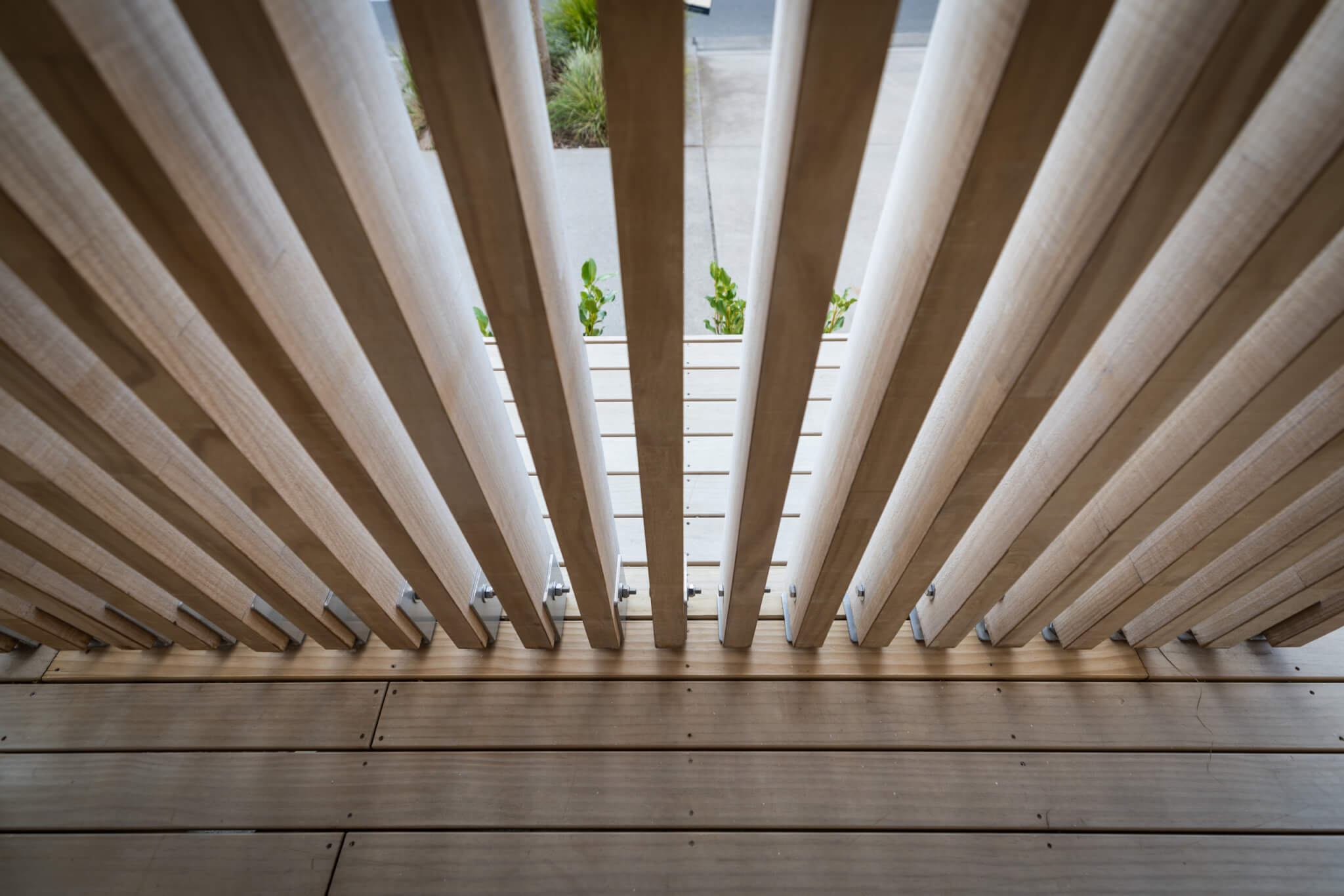

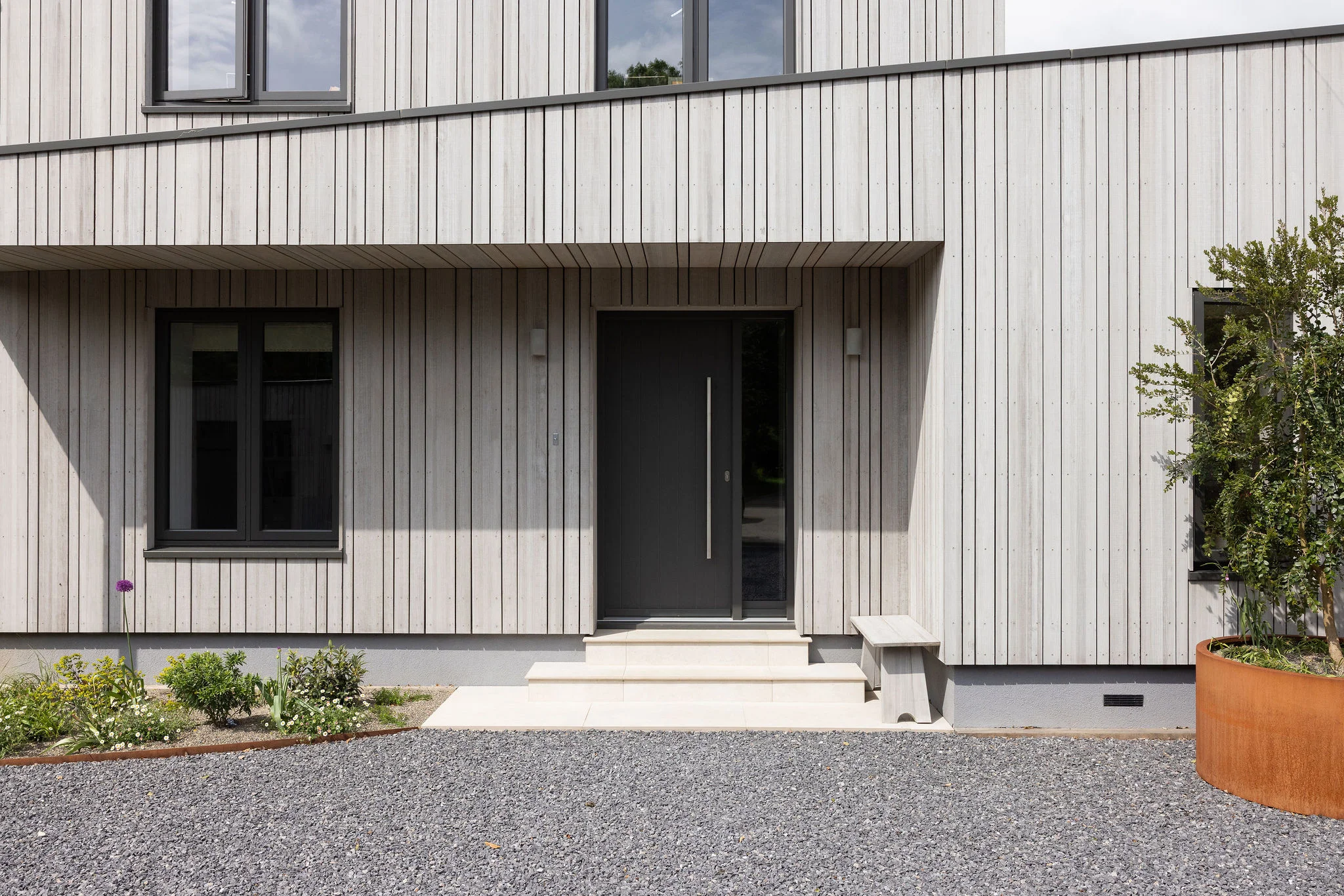

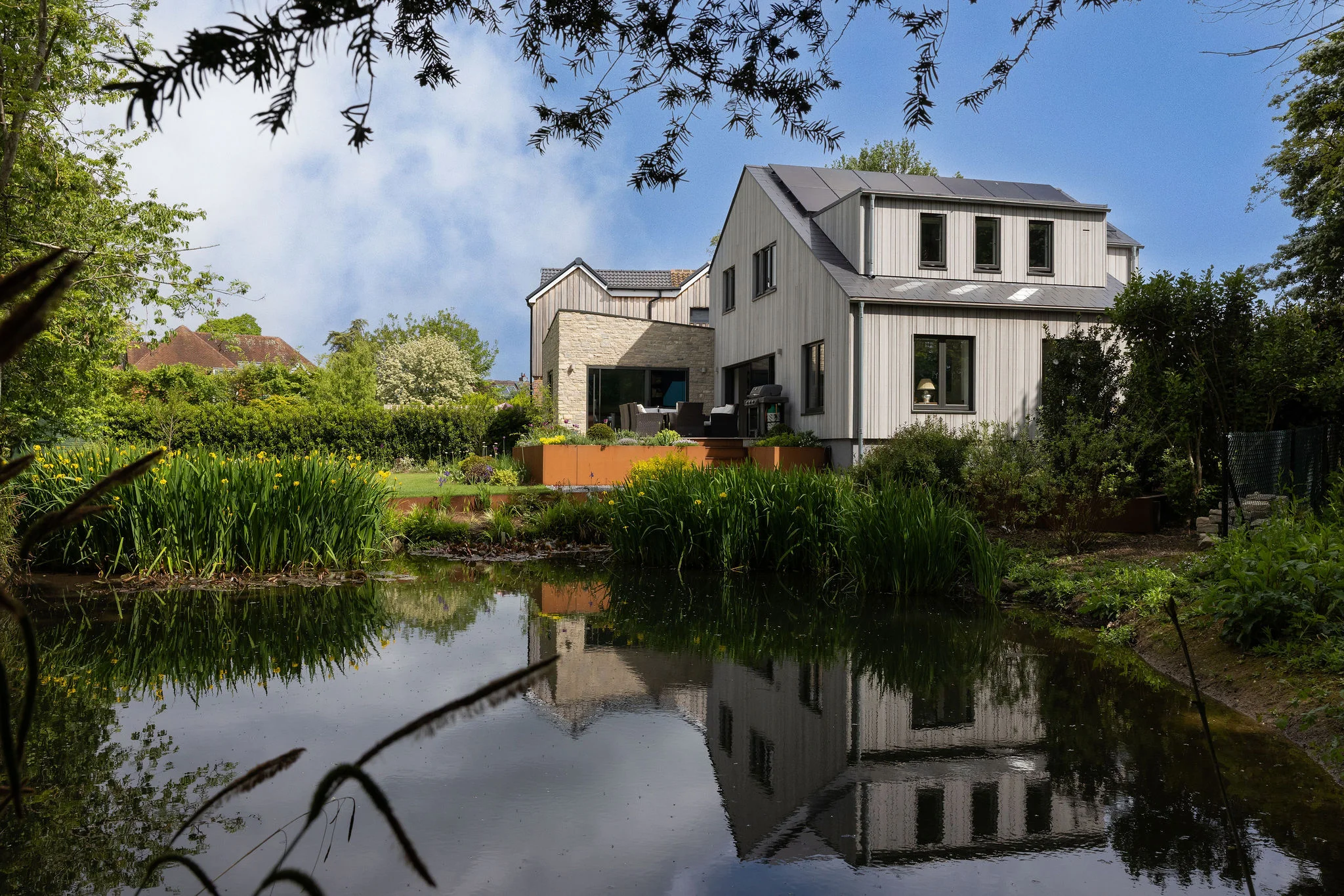

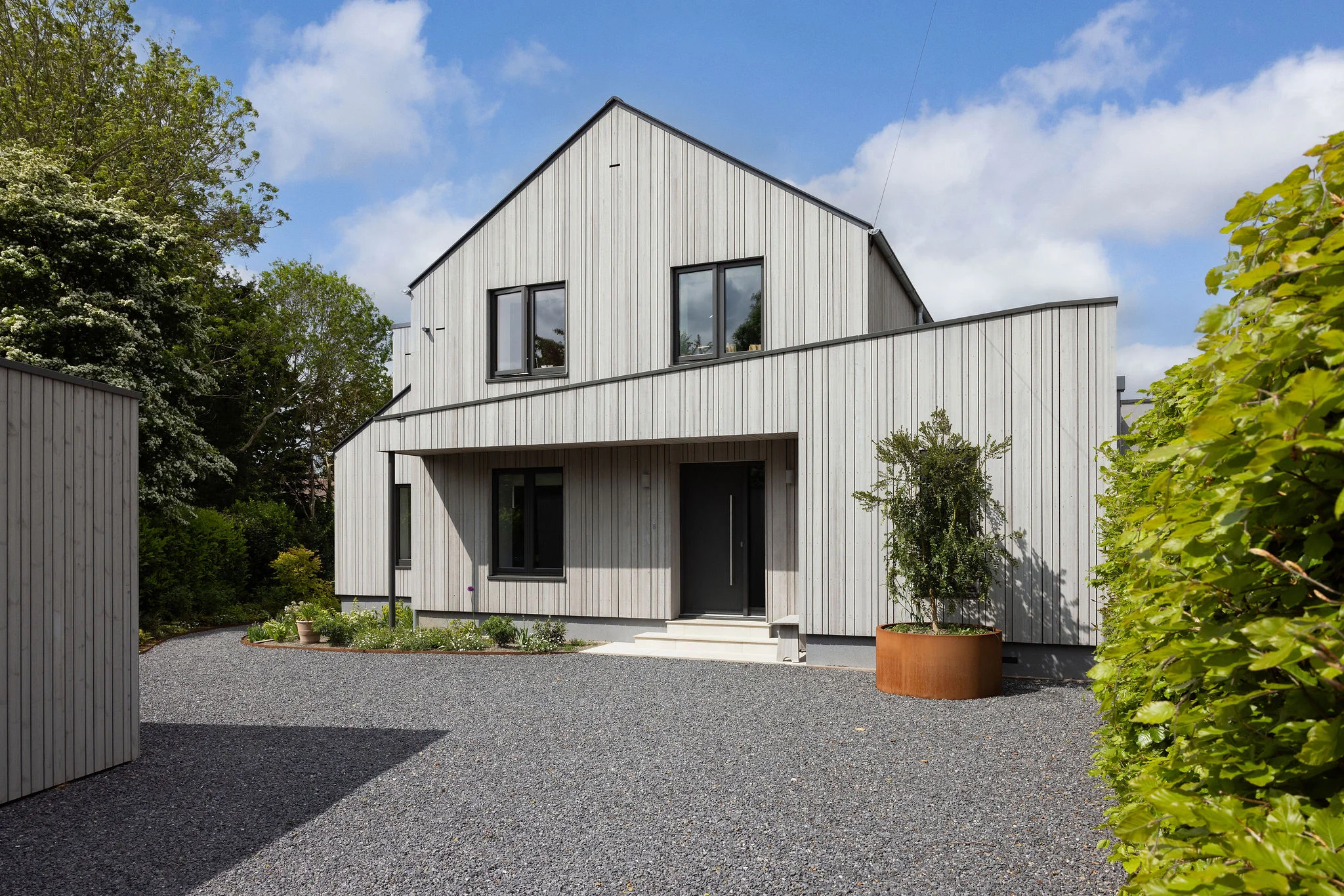

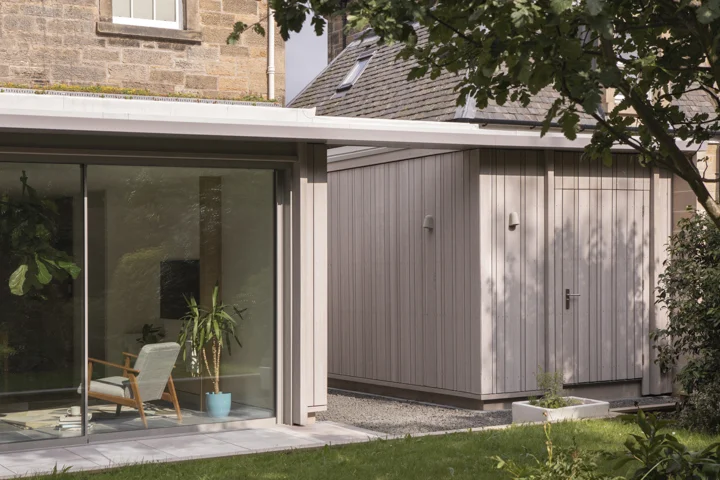

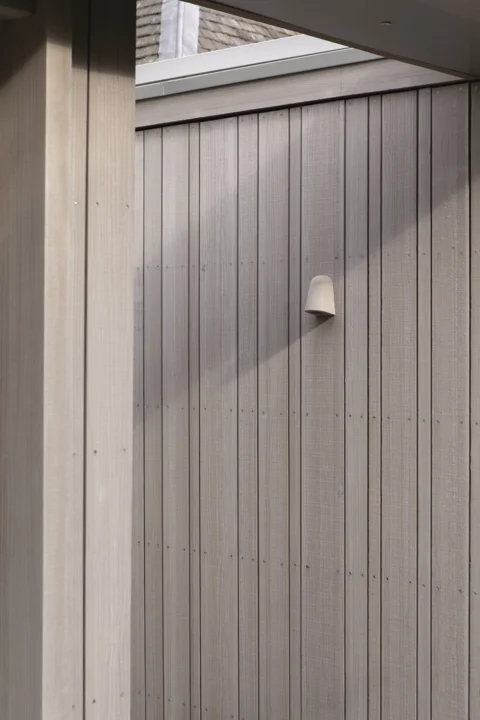

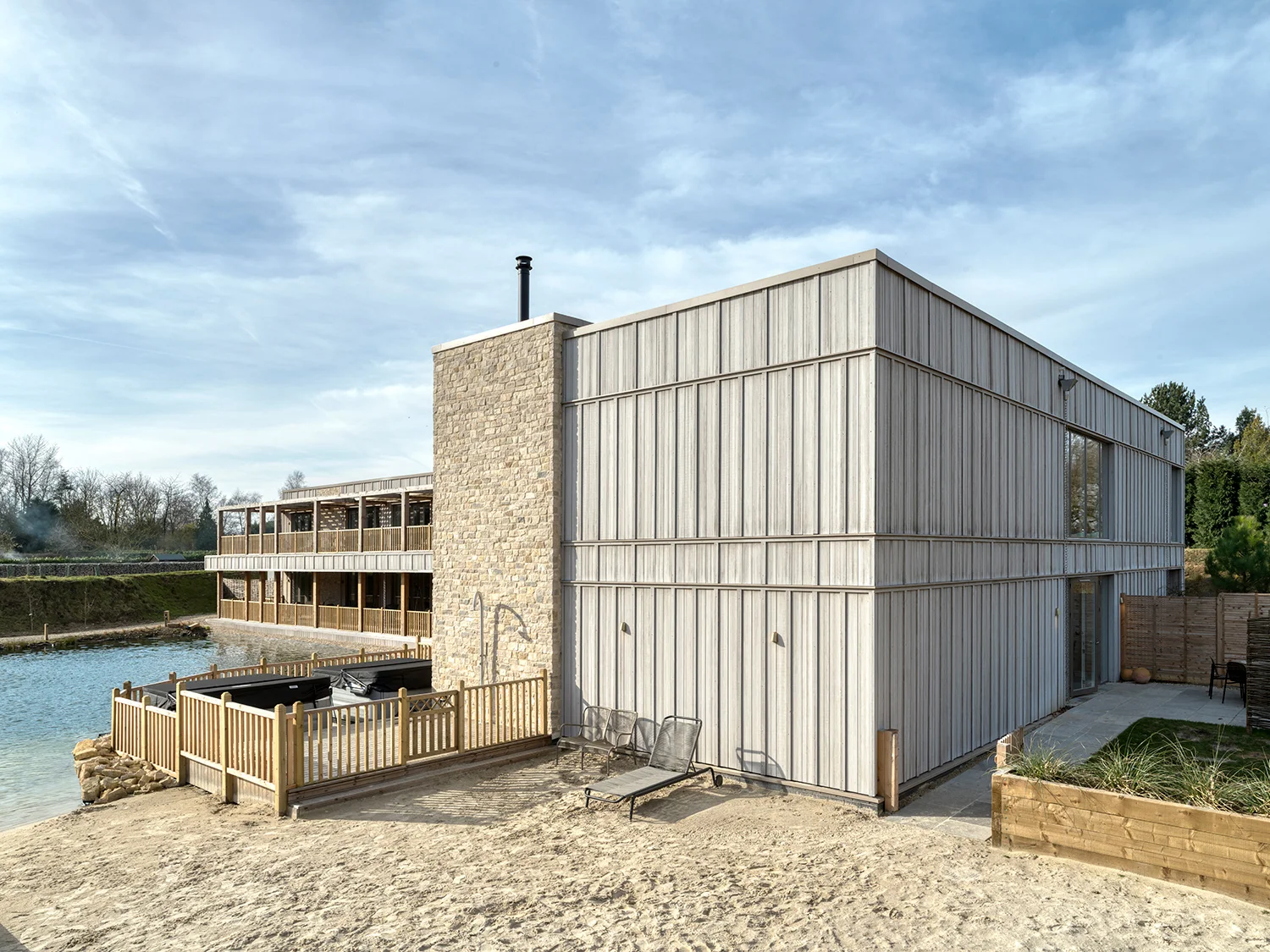

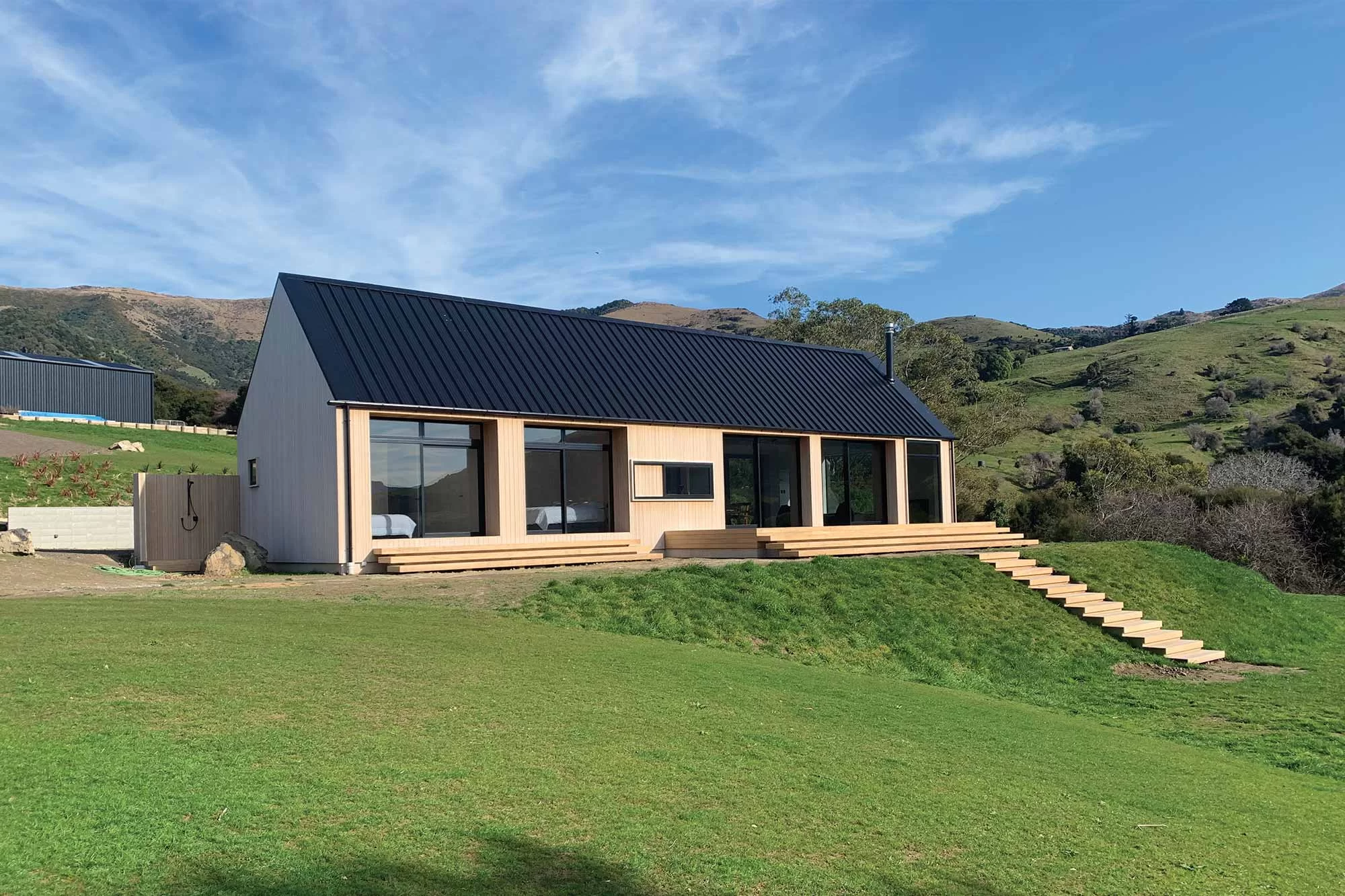

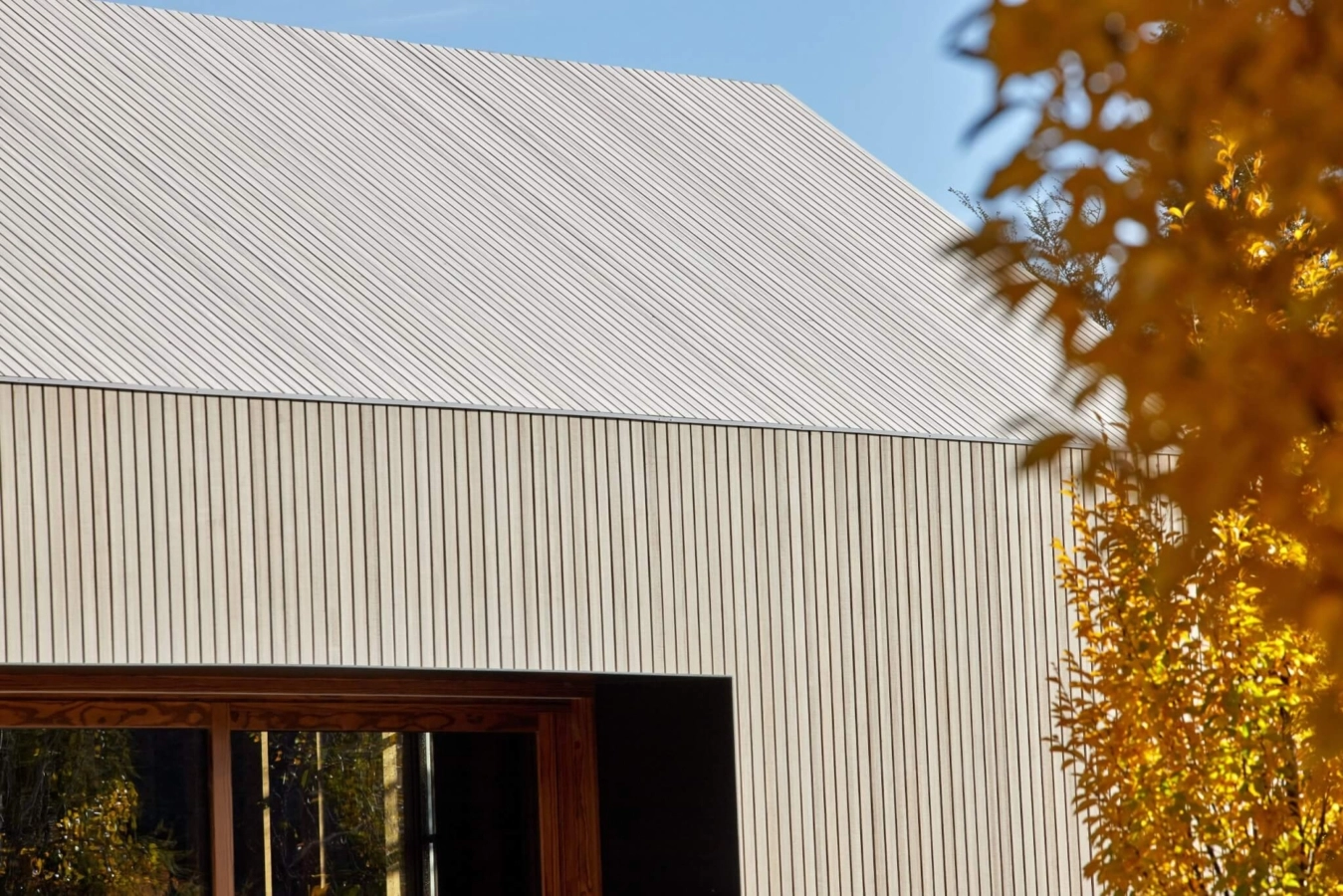

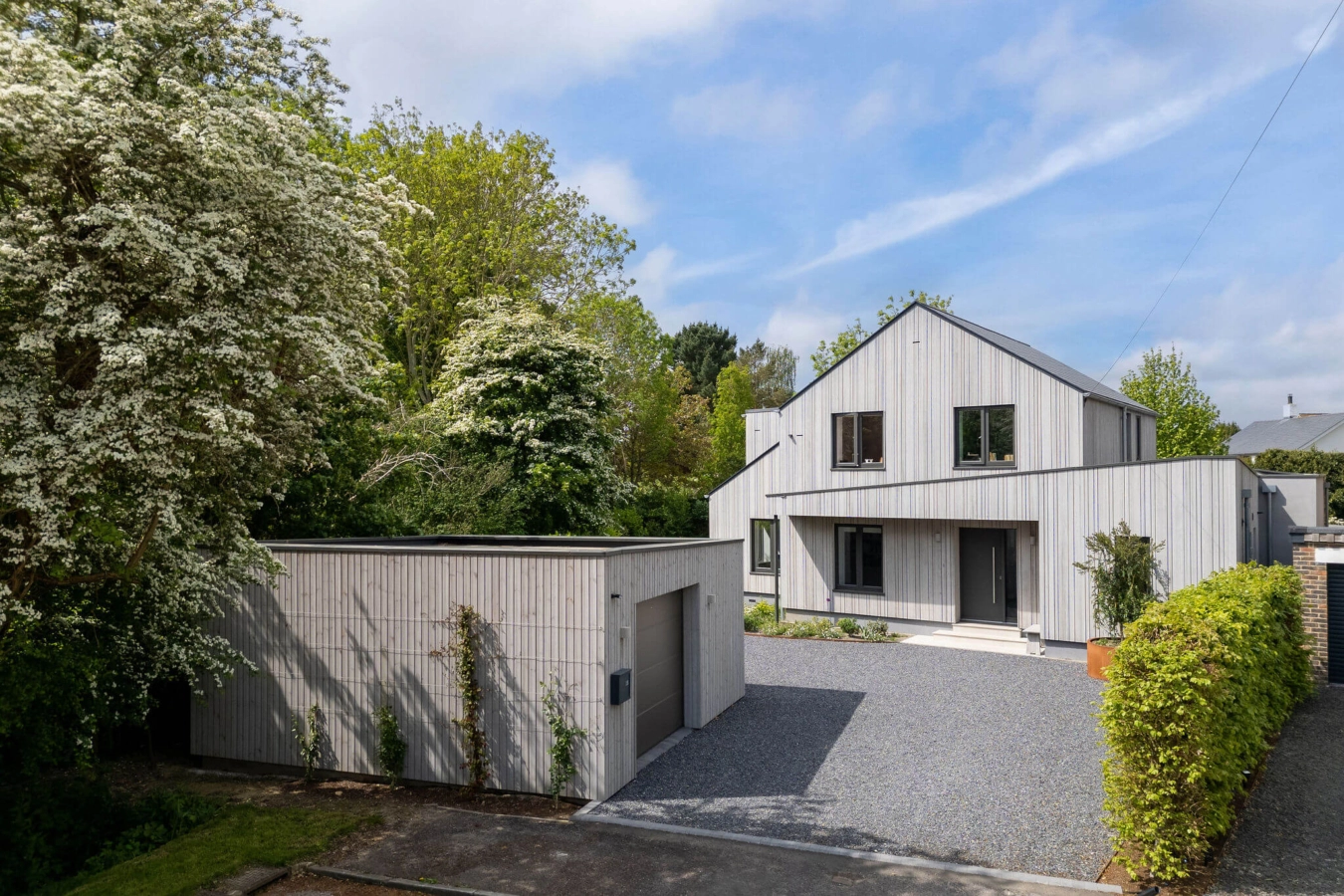

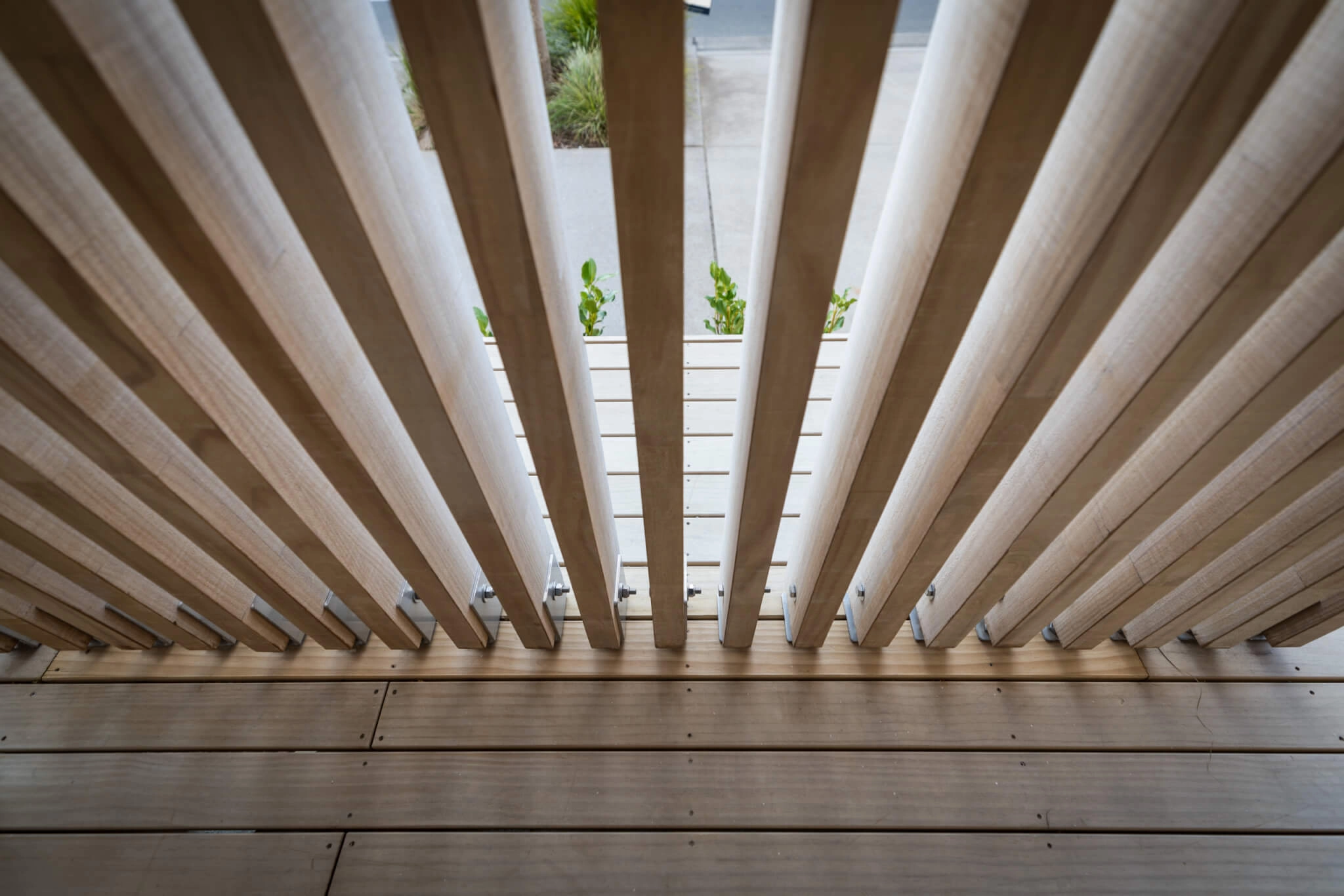

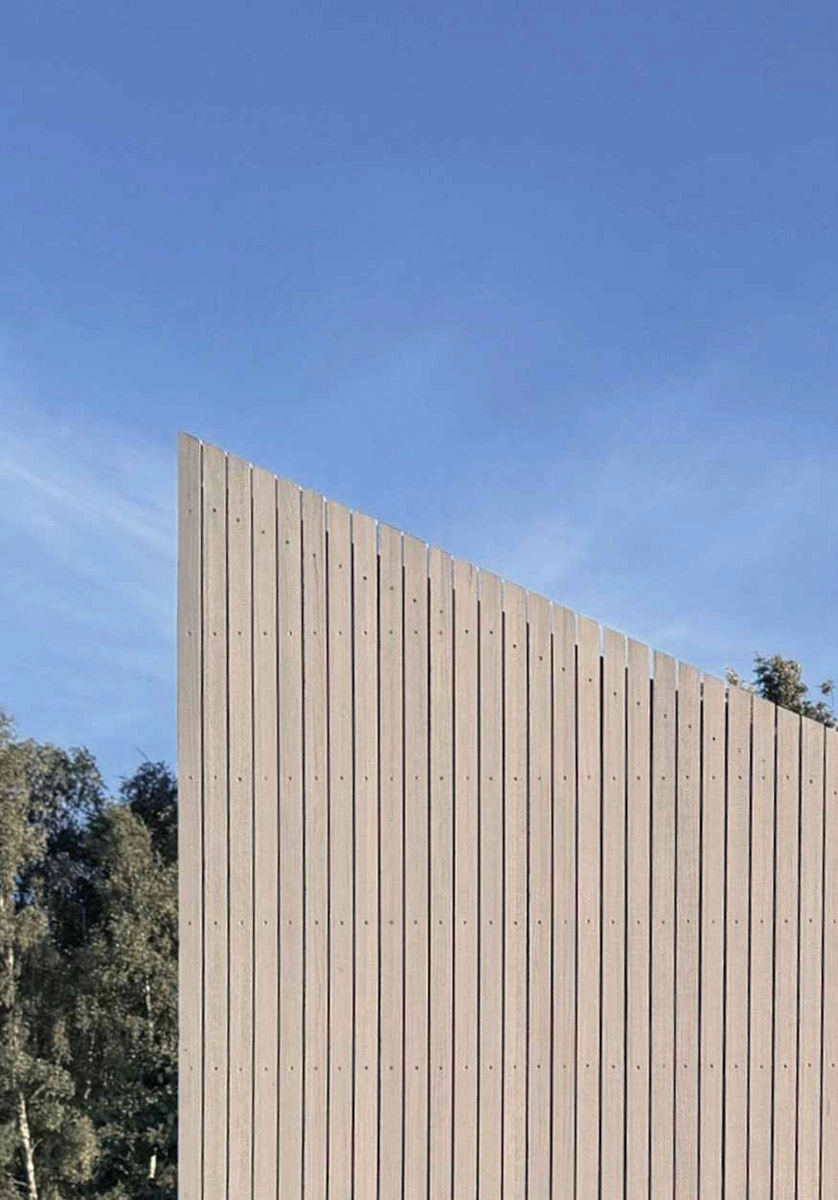

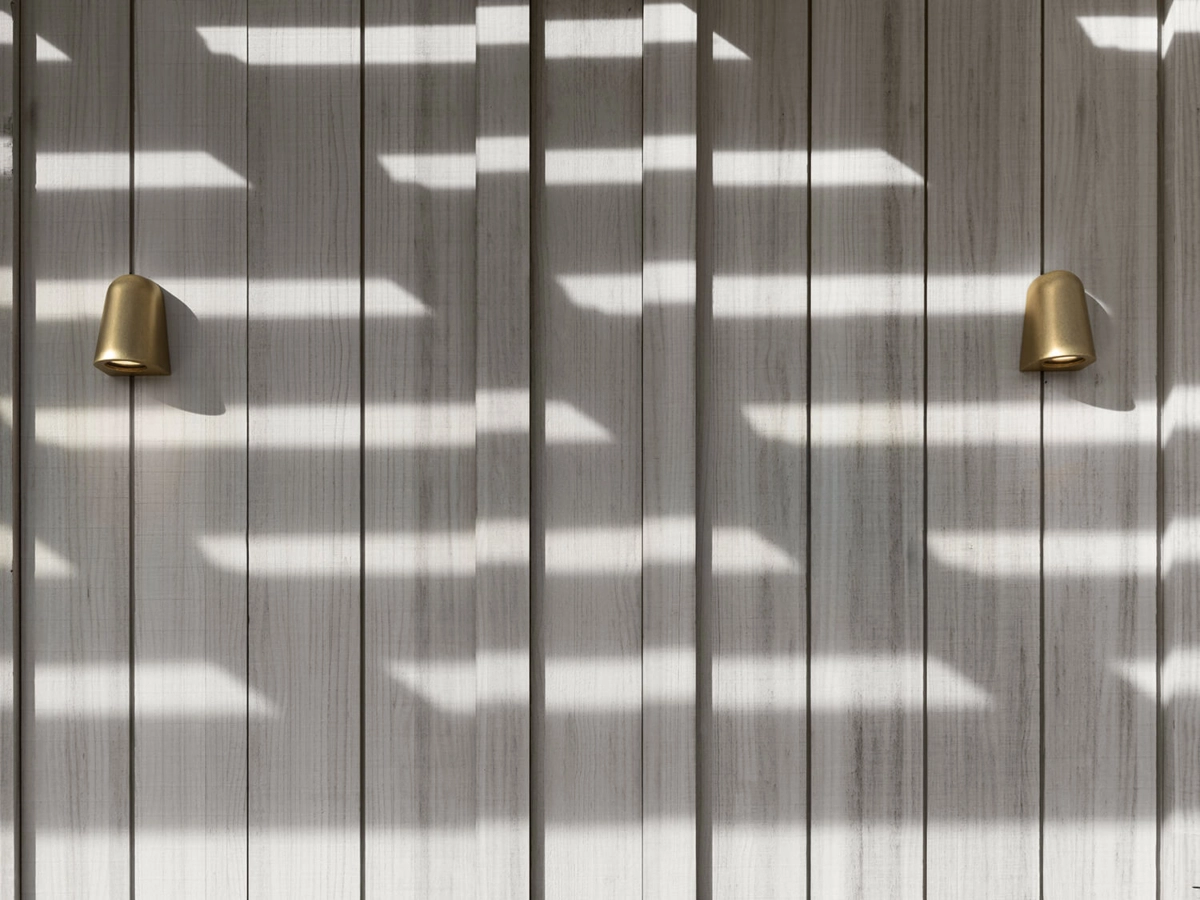

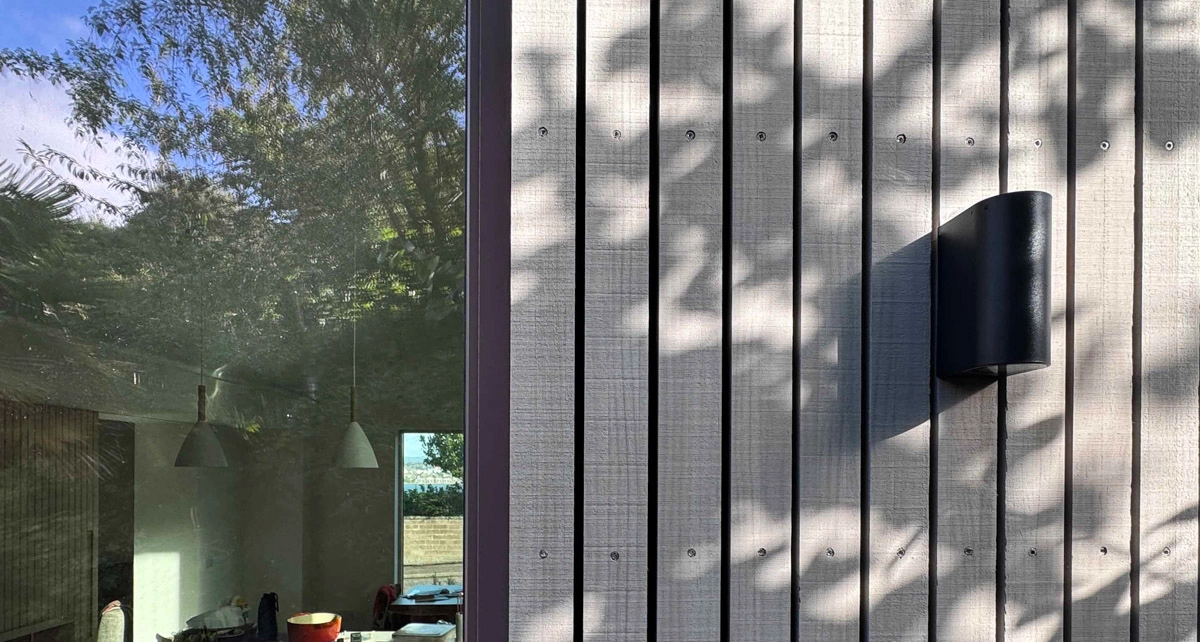

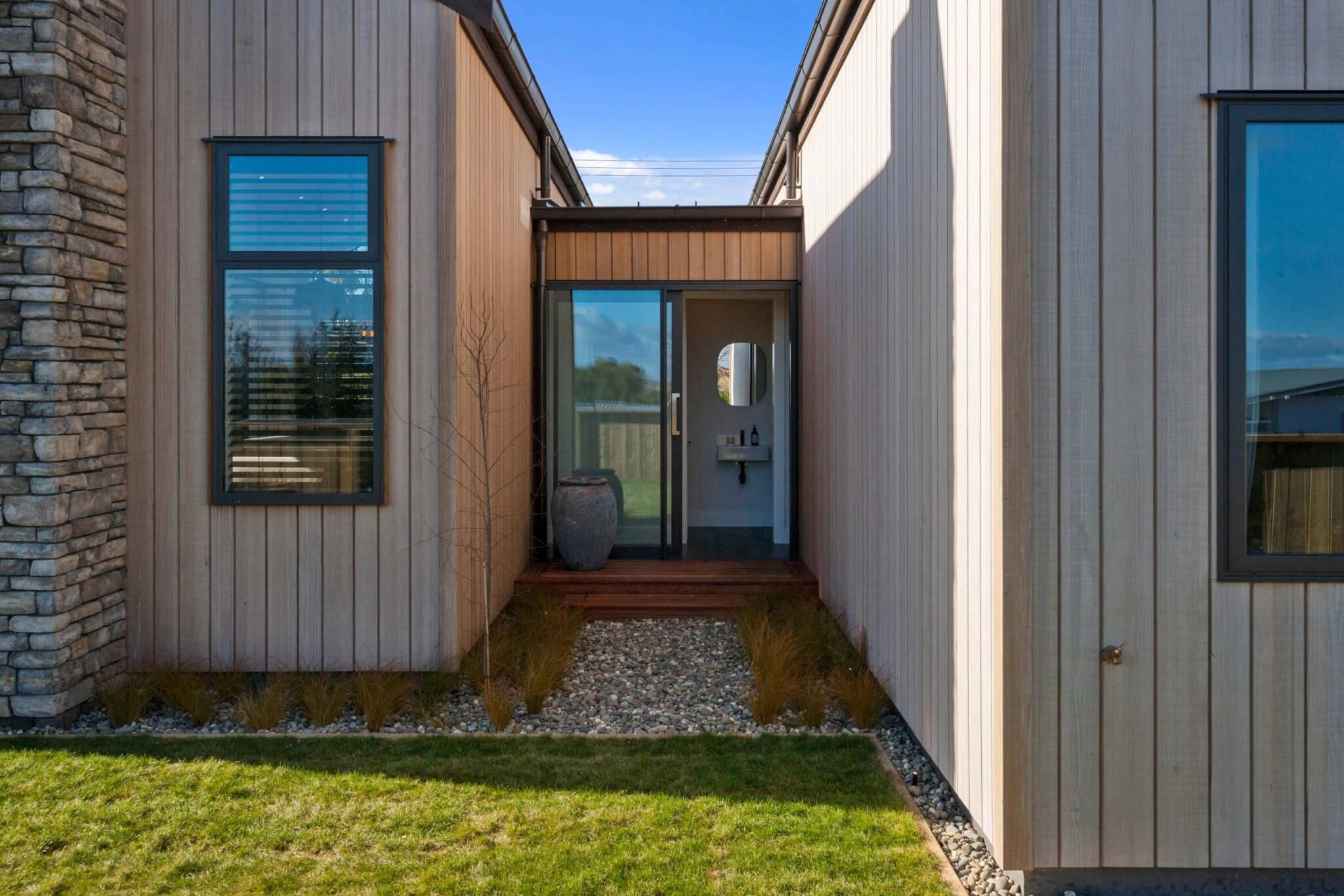

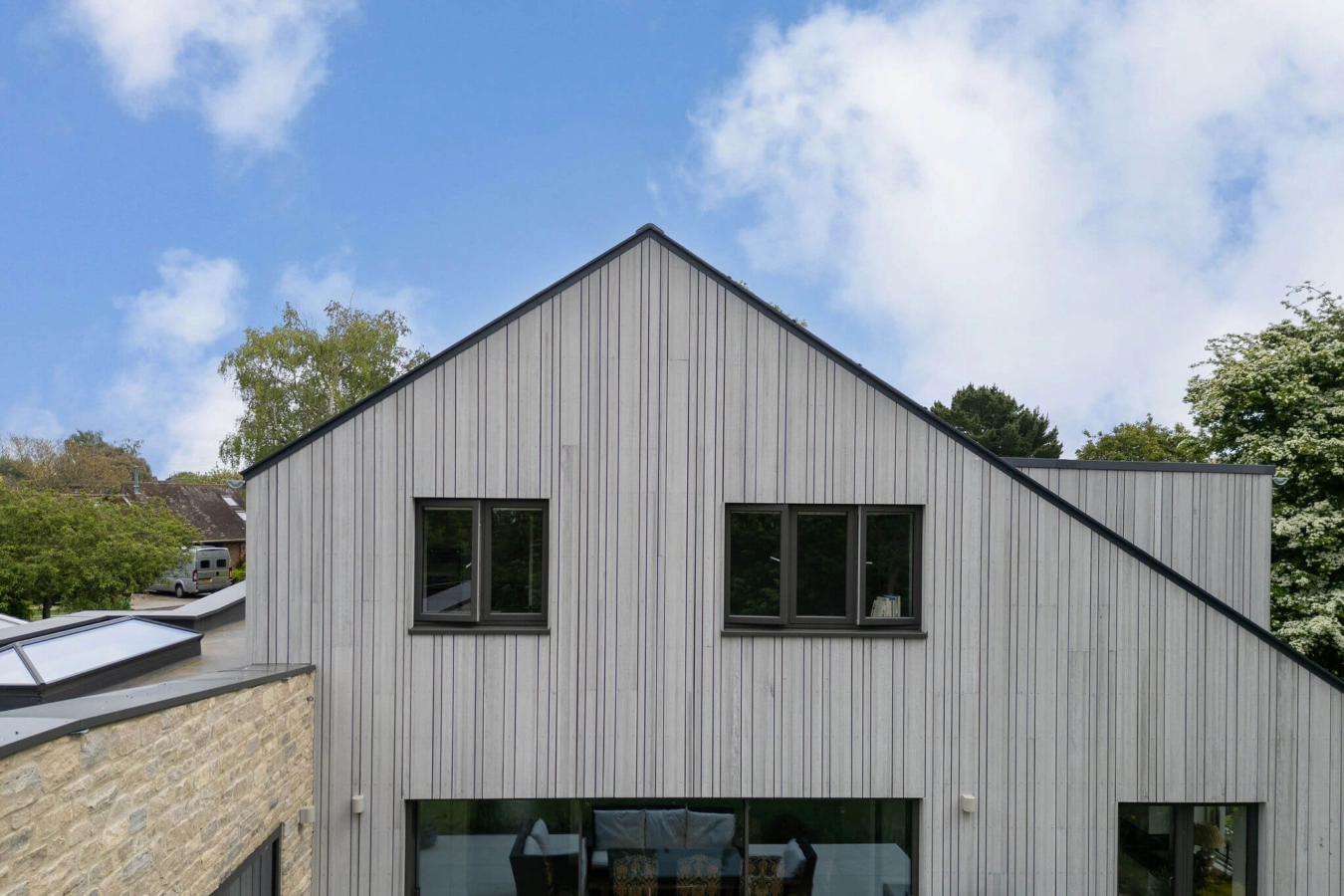

Abodo® Vulcan Vertical Grain Gallery
At a Glance
Species
Radiata Pine
Origin
New Zealand
Appearance
Knot-free timber
Appearance
Growth rings run perpendicular to the face, giving a refined, straight vertical grain appearance, free of knots.
Grade
Select Grade: hand-graded to our stringent quality standards
Grade
Virtually knot and defect free, created from thermally modified plantation timber and engineered with a vertical grain construction.
Coatings
Can be coated with water-based oil or SiOO:X
Coatings

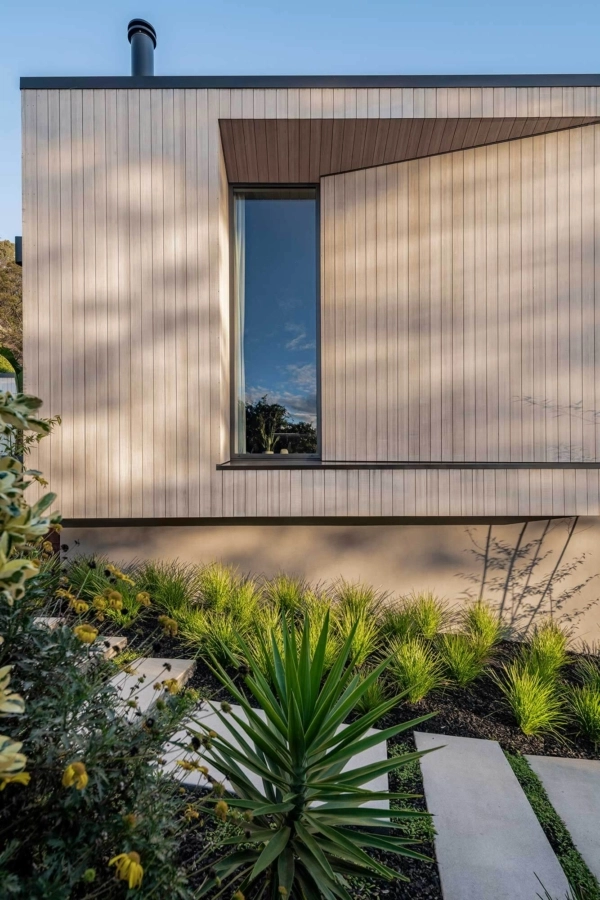

Abodo® Vulcan Vertical Grain is factory coated in-house, with our water-based oil systems being especially well suited to this product. SiOO:X Wood Protection is also available — see the full range of finish options below.
Durability
Outstanding durability
Durability
Outstanding durability (Class 1 – 3 BS EN 350-2).
Stability
Outstanding stability
Stability
The combination of thermal treatment and vertical grain orientation delivers outstanding dimensional stability. This allows wider boards to be used without fear of dimensional movement, and helps coatings last longer.
Surface finishes
Wire brushed or fine-sawn
Surface finishes
Abodo® Vulcan Vertical Grain can be produced in a brushed or fine-sawn finish. Please see the wide range of finish options below for more detail.
Sustainability
Abodo® Vulcan Vertical Grain is a rapidly renewable species which is sustainably sourced from fast-growing New Zealand plantation timber. EPD available.
Modified timber
Radiata Pine is modified using only heat and steam.
Weathering
Abodo® Vulcan Vertical Grain is usually supplied coated, however if left to weather naturally, will turn to a light grey colour over time.
Density
Low – classified by BS EN 350-2 as approximately 420 Kg/m³ at a moisture content of approximately 6-8%.
Application
Highly versatile, suitable for most cladding applications, with fixed lengths and custom sizes (including wide sections and fins) available.
See how Abodo® Vulcan Vertical Grain compares with other species.
Abodo Vulcan VG is crafted from radiata pine, which grows in FSC-certified plantation forests in New Zealand. Rich soils and high annual rainfall guarantee rapid growth and help it sequester more carbon than slow-growing tree species. And despite the distance this product has to travel to reach the UK, it remains carbon negative due to the growing conditions, its lack of chemical treatment and its long lifespan.

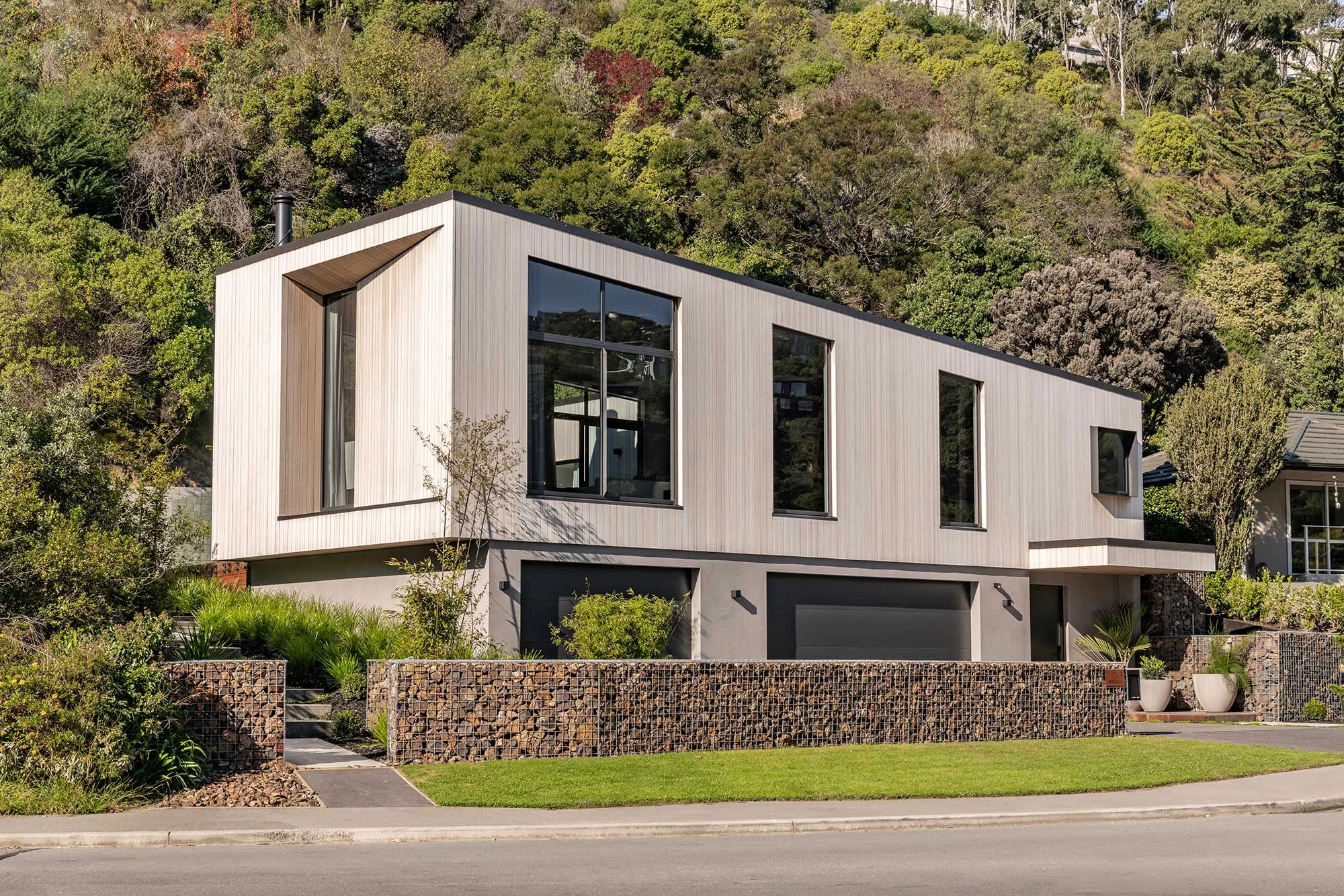

Abodo Vulcan VG is durable and stable, thanks to thermal modification and processing that results in the vertical grain. The heat treatment also creates an optimal surface for factory coating with SiOO:X Wood Protection.
This cladding delivers from an environmental perspective, too. It’s free from chemical preservatives and solvents, and a low-VOC Type 1 exterior polyurethane adhesive is used for the lamination process.
Abodo Vulcan Vertical Grain is the ideal choice for anyone seeking visually striking, high-performance and sustainable cladding.
Finish Options
Browse our range of finish options for Abodo® Vulcan Vertical Grain cladding below.

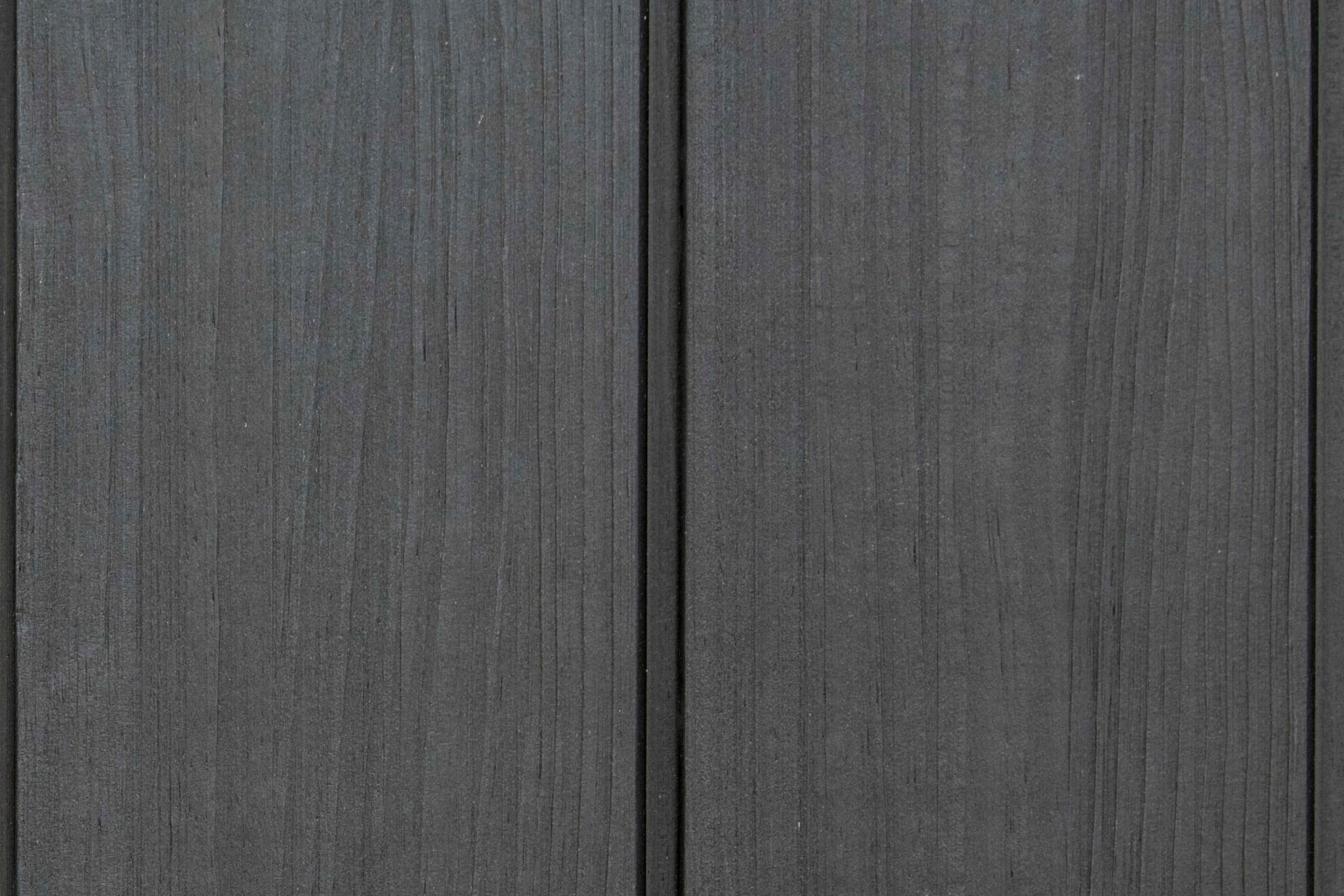

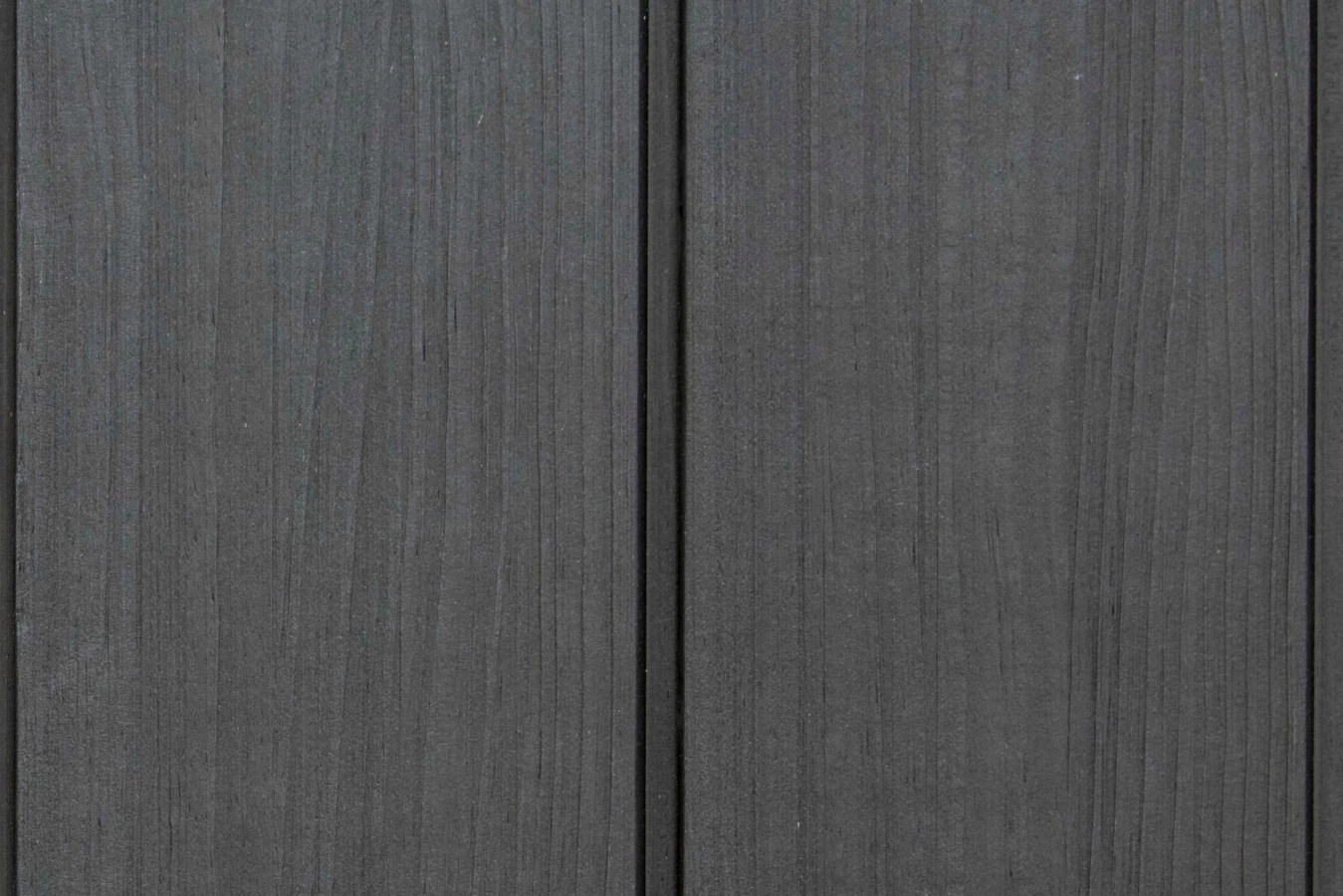

Valtos

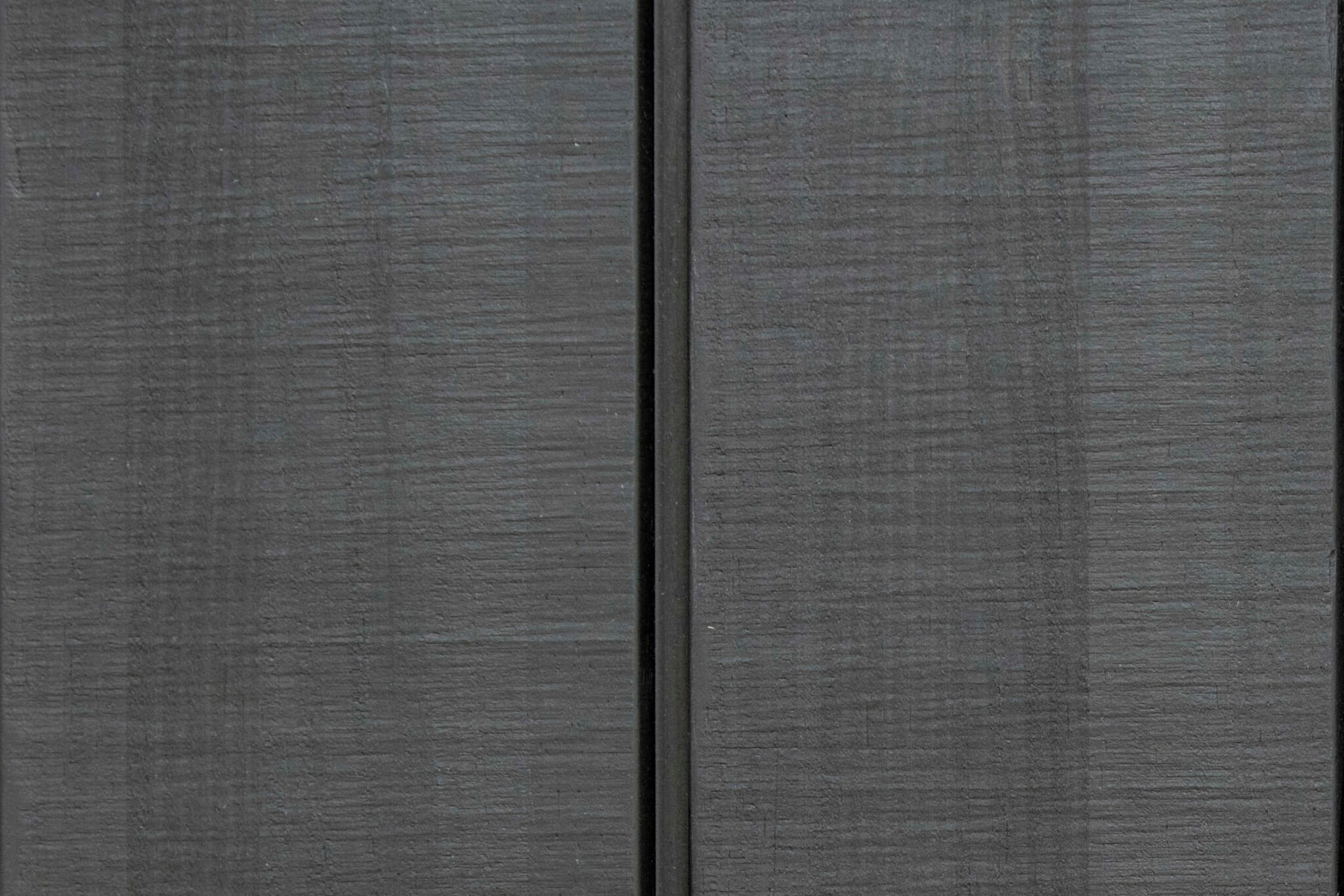

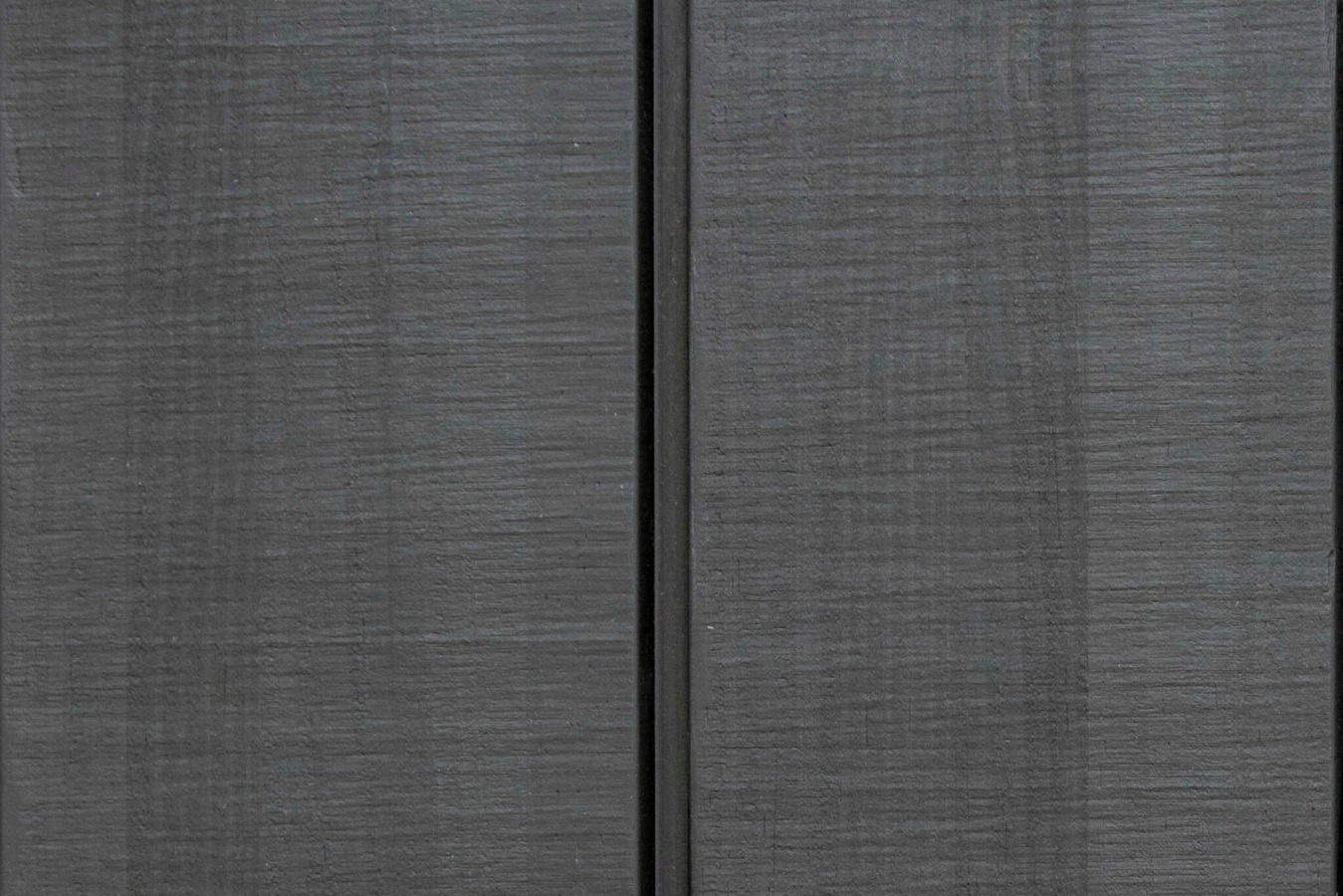

Dunvegan

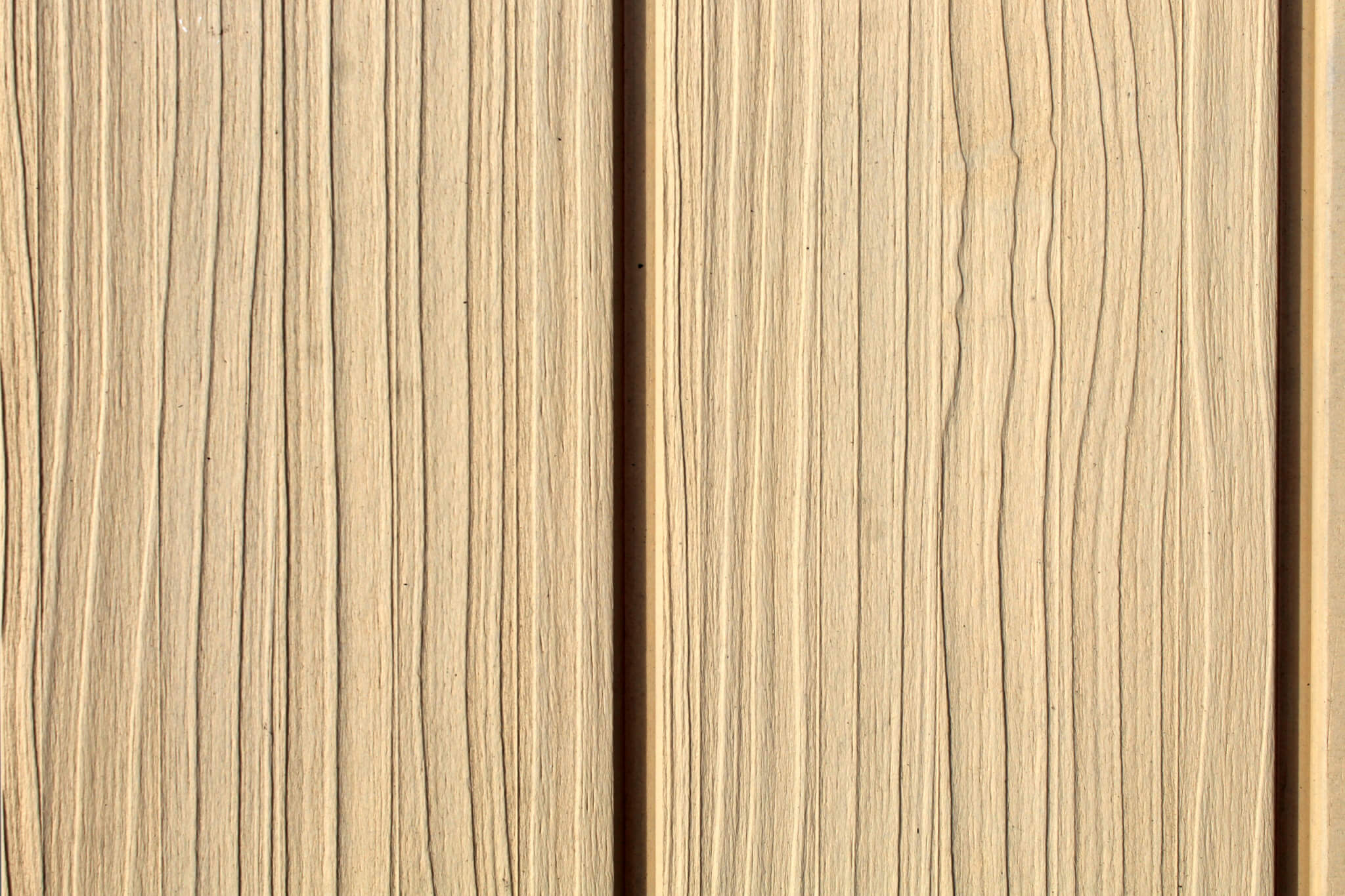

Harris

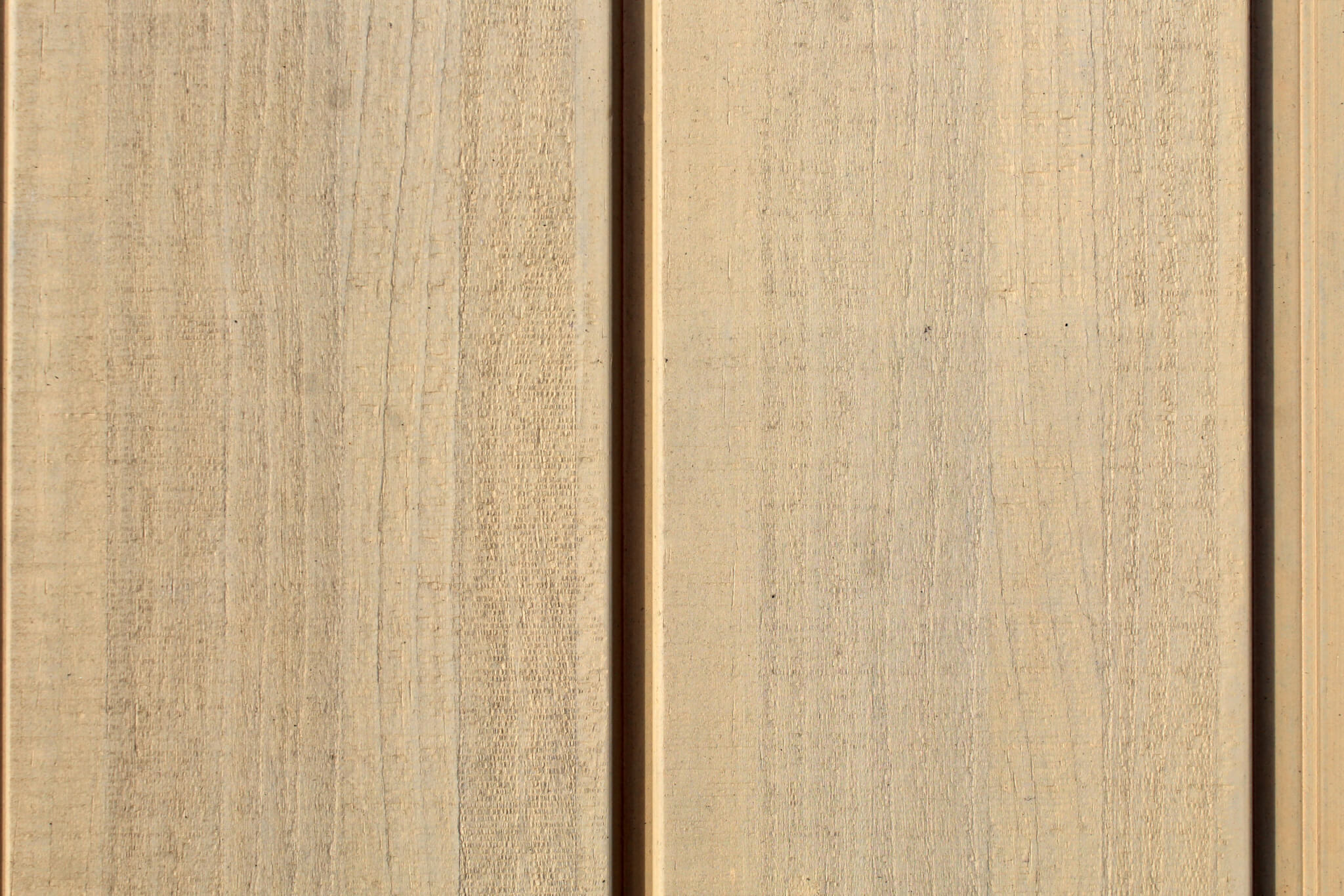

Canna

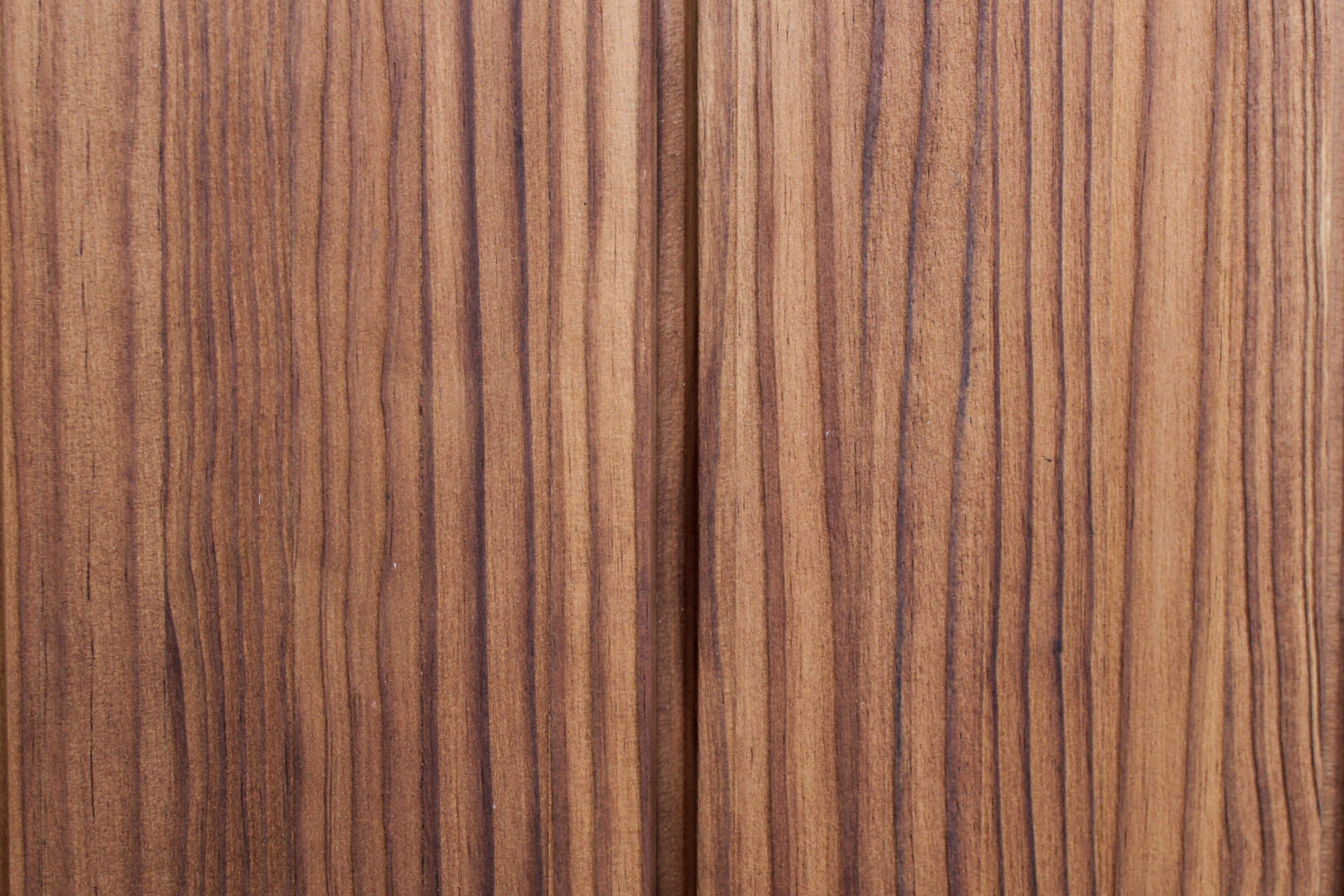

Brora

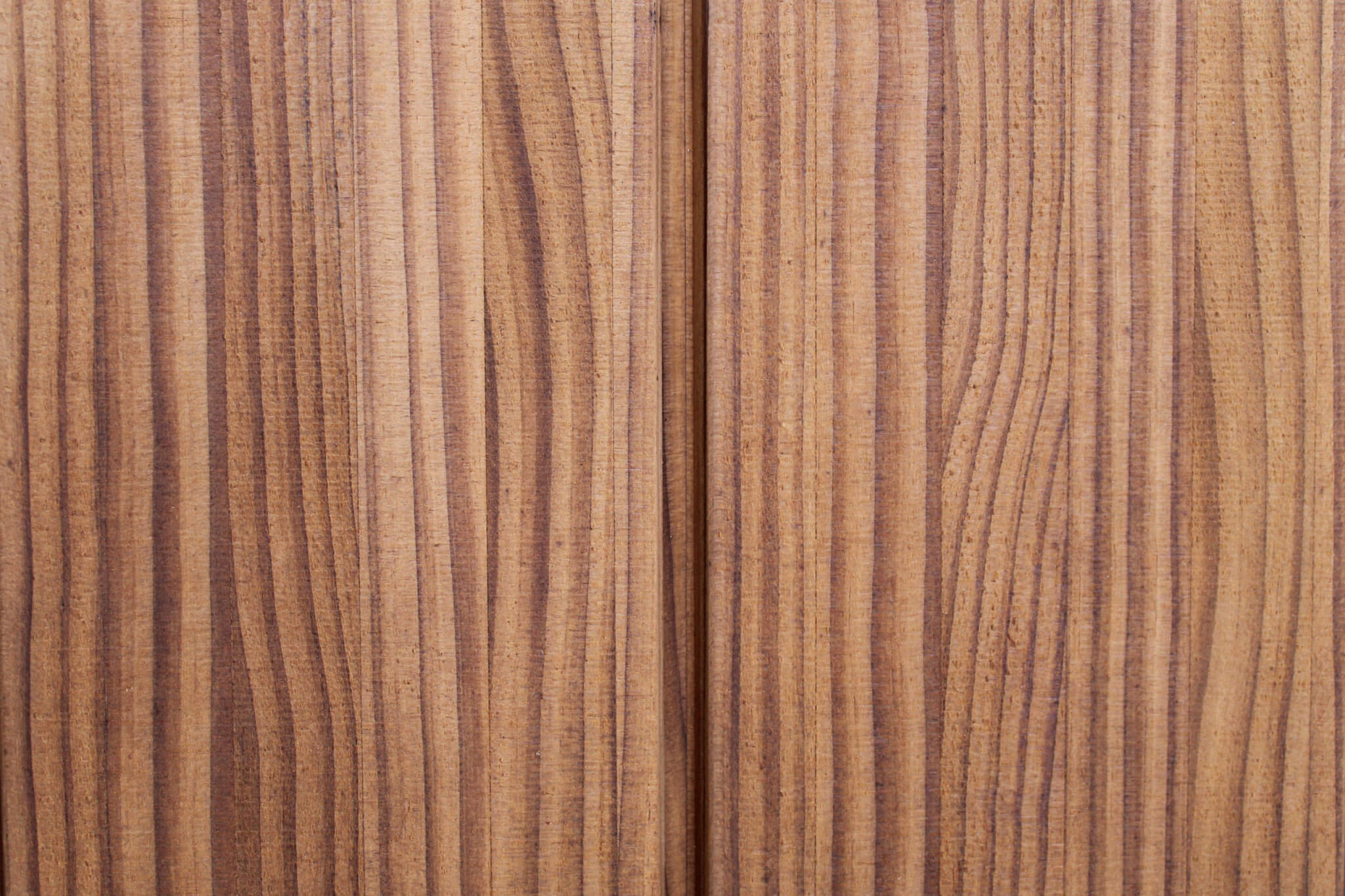

Embo

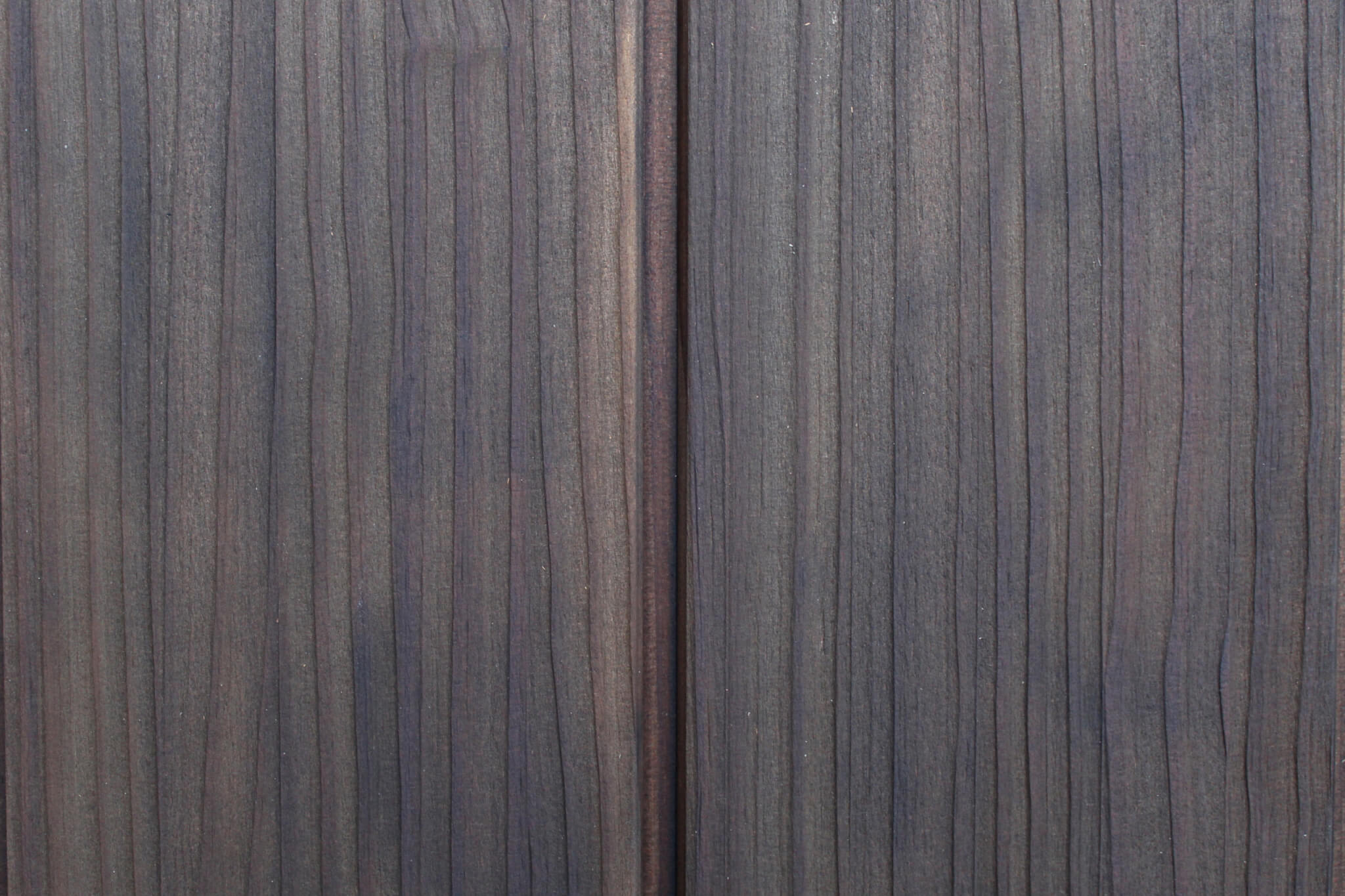

Affric

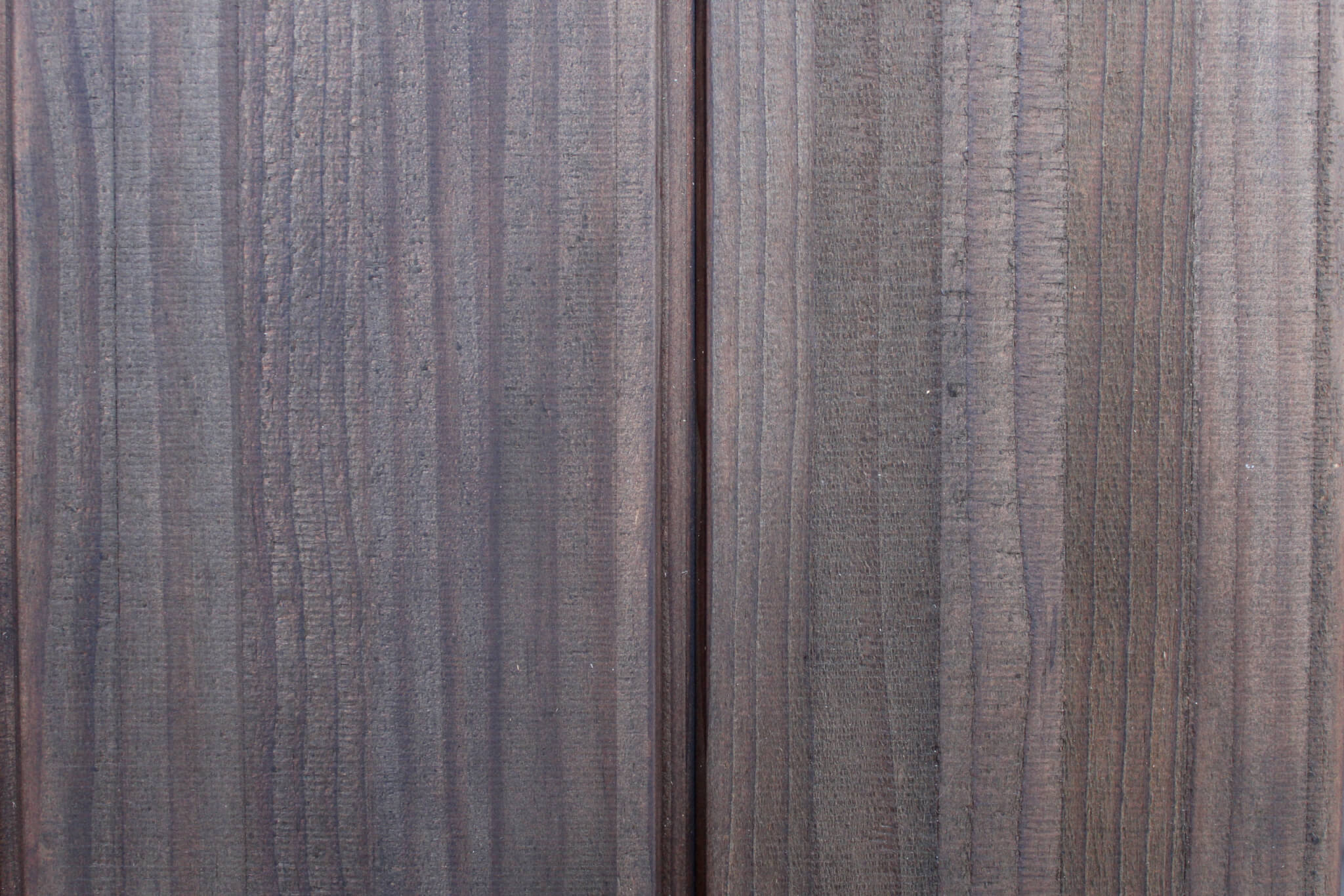

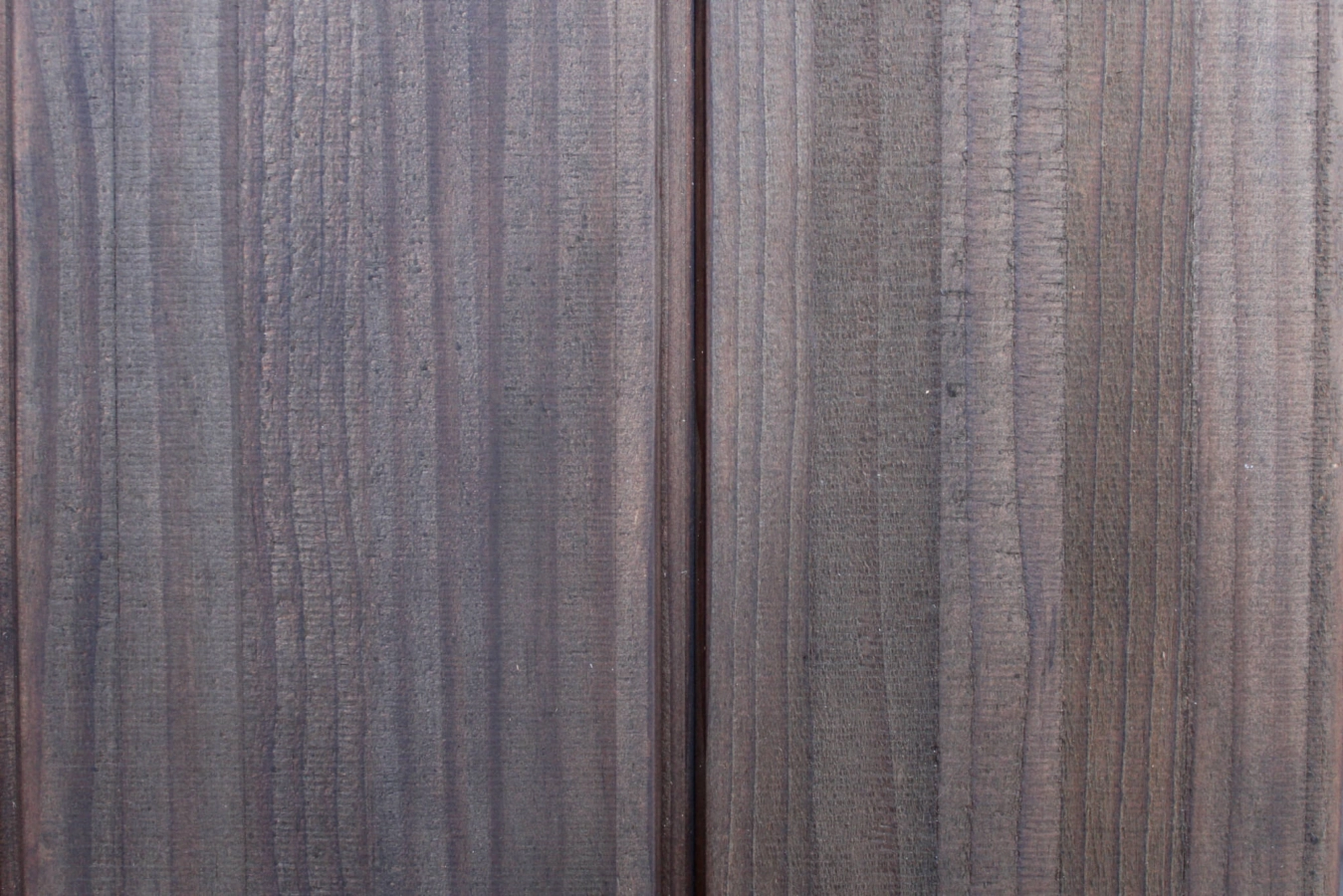

Dava

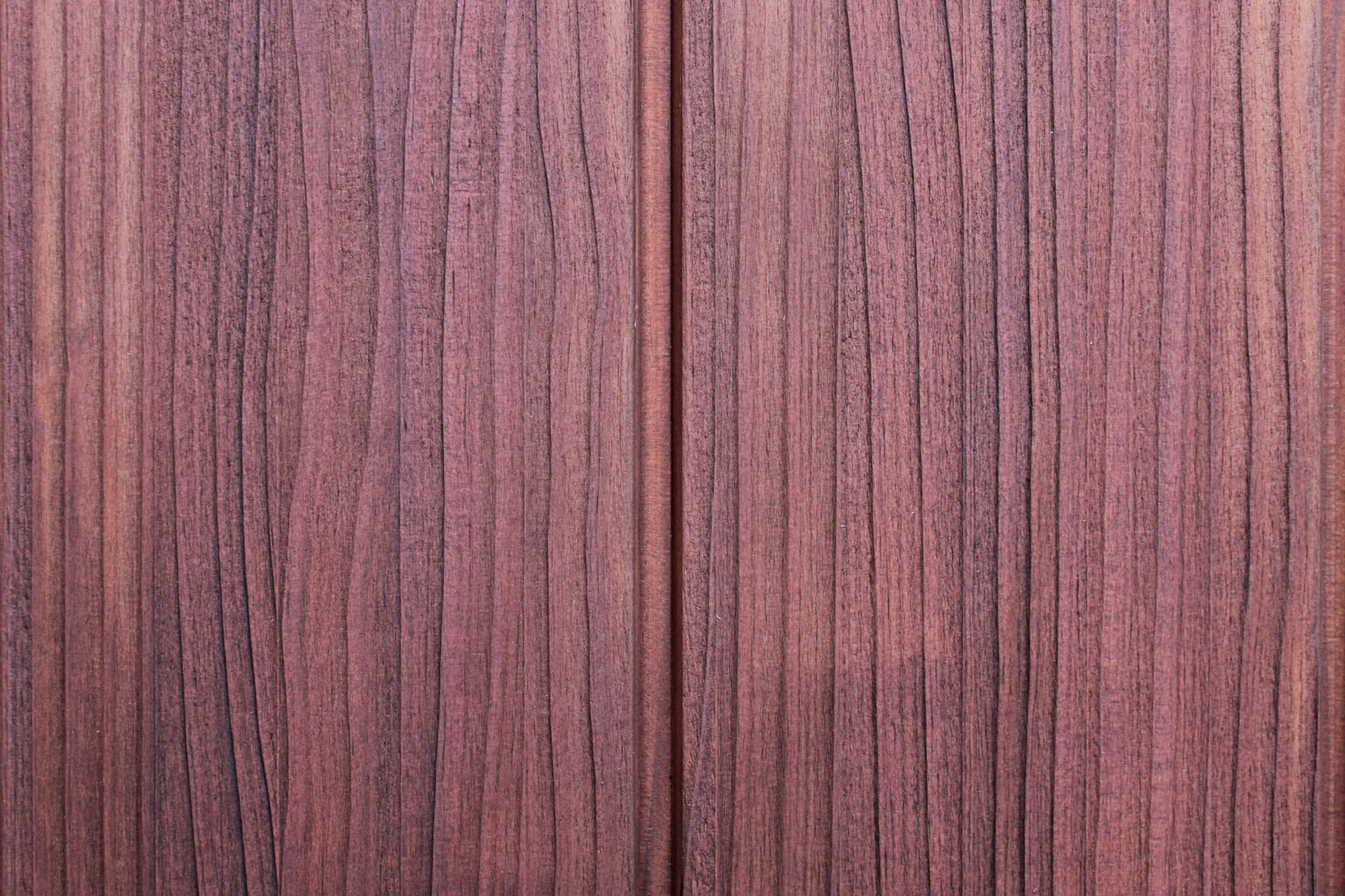

Oban

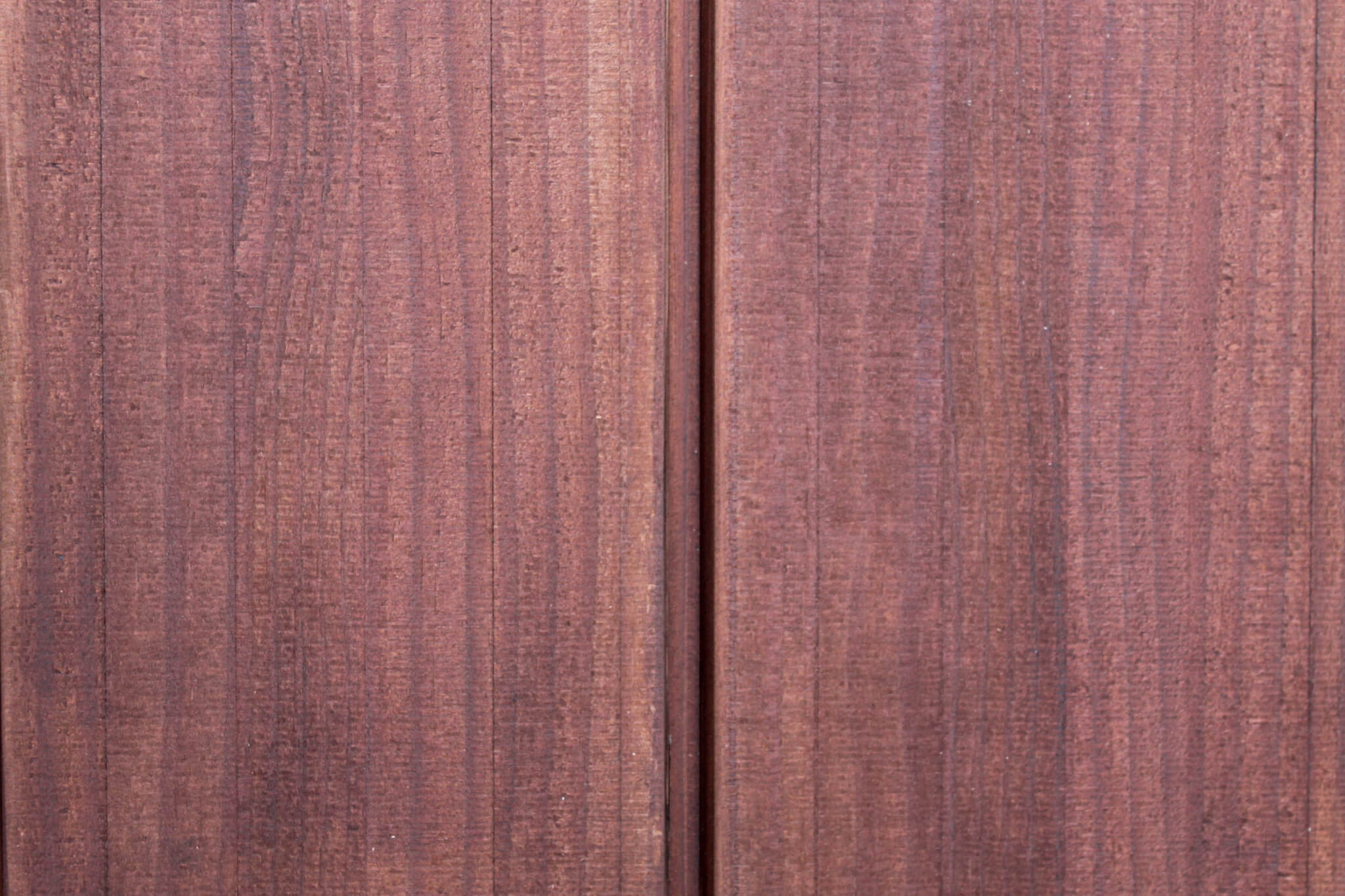

Ruthven

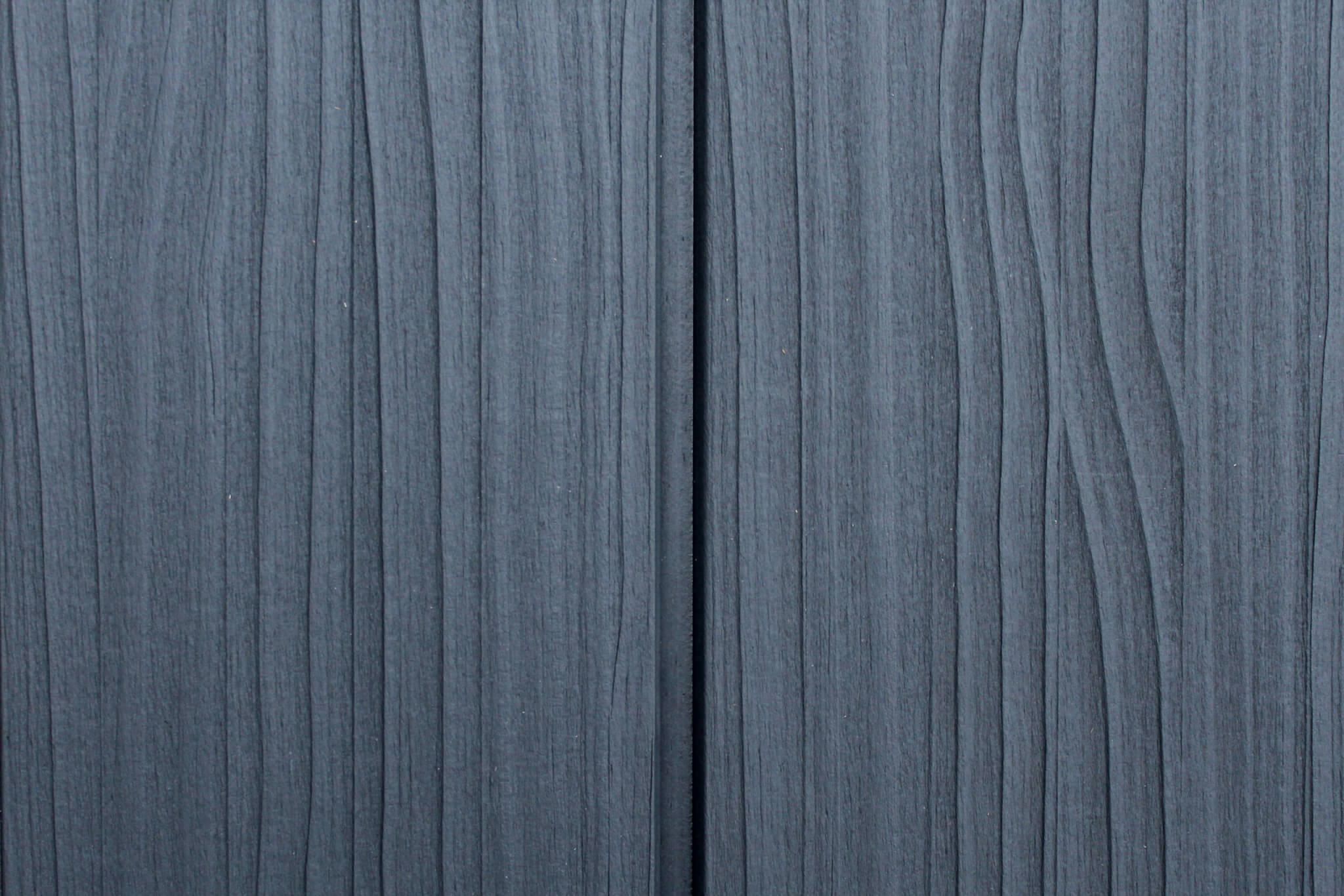

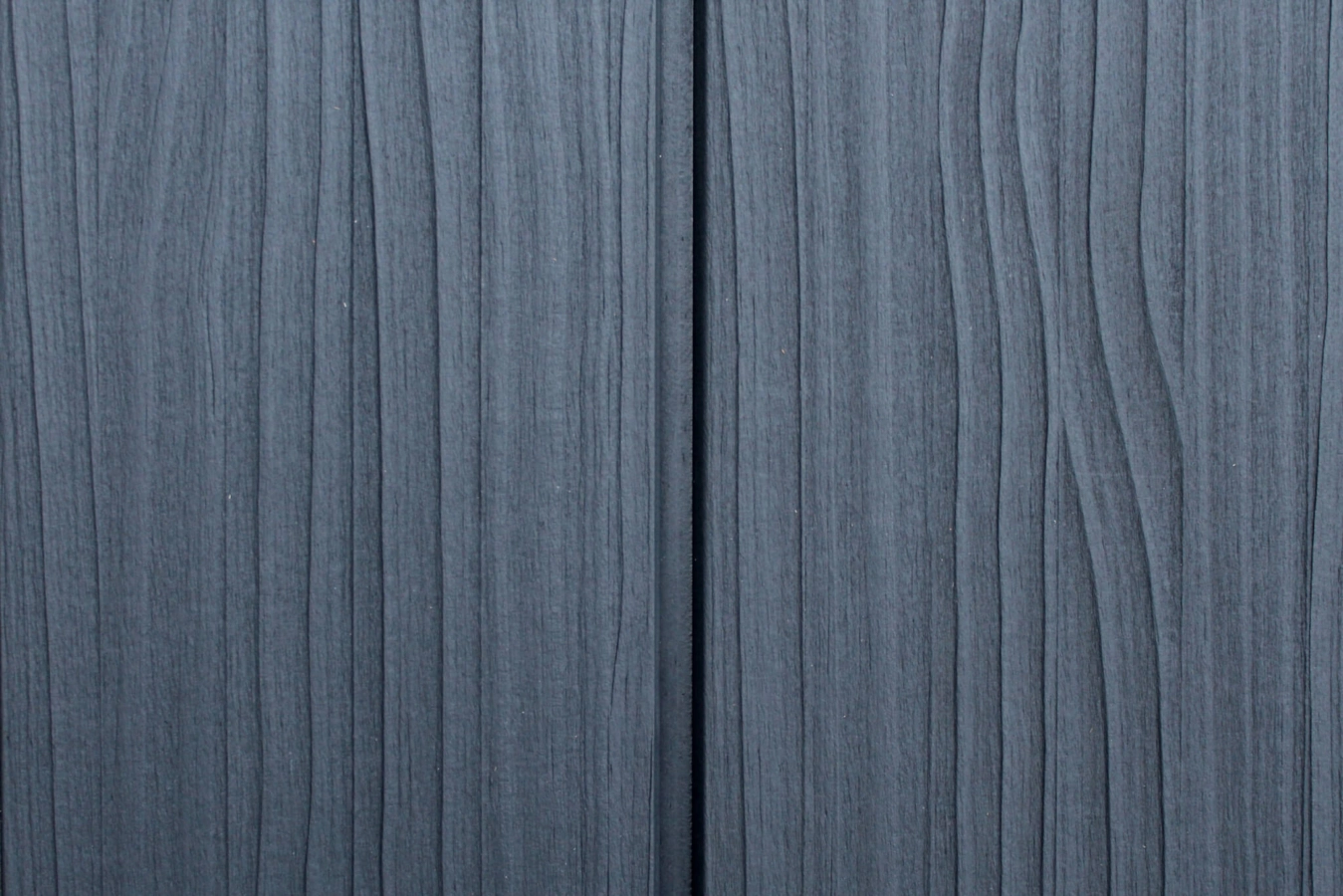

Sleat

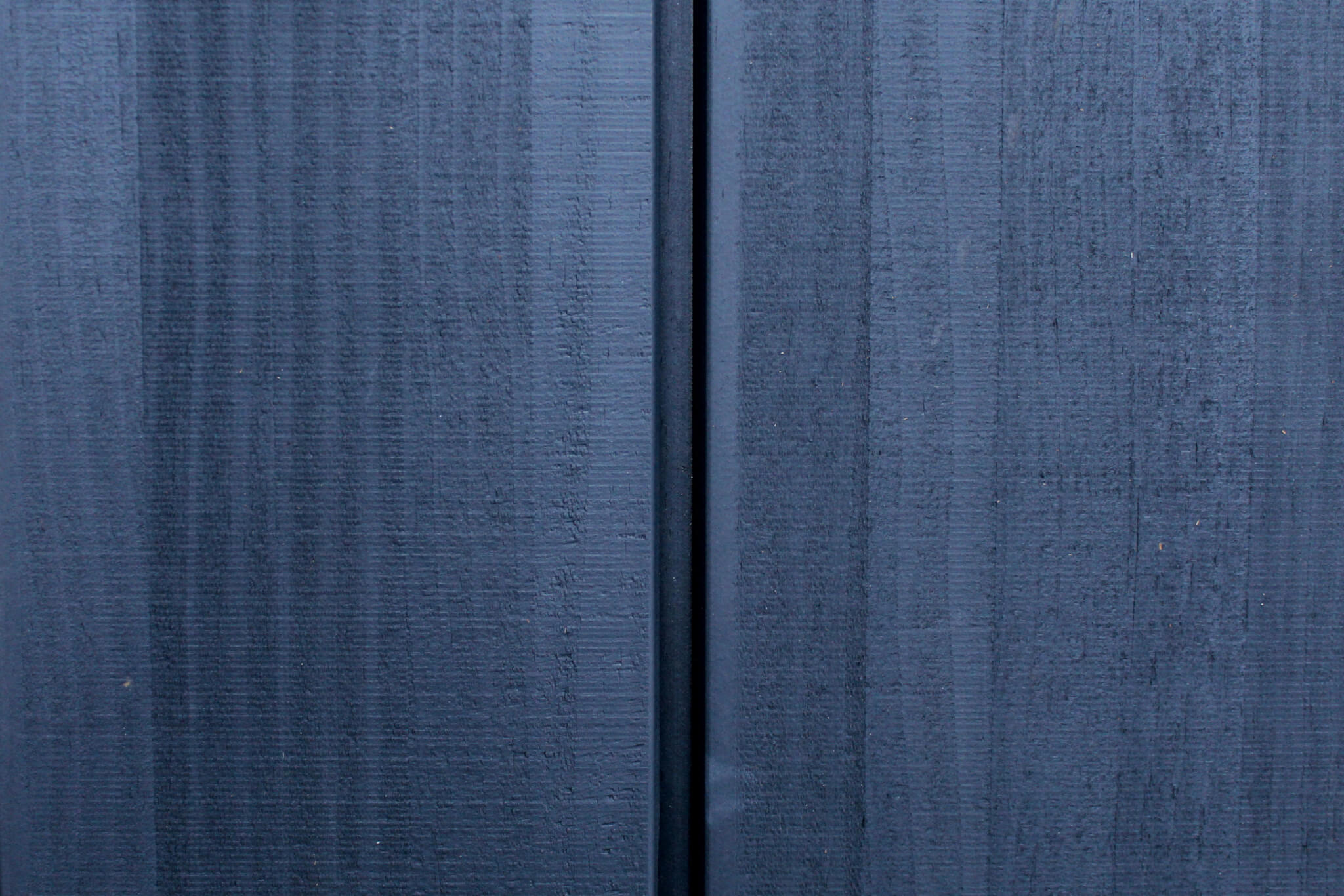

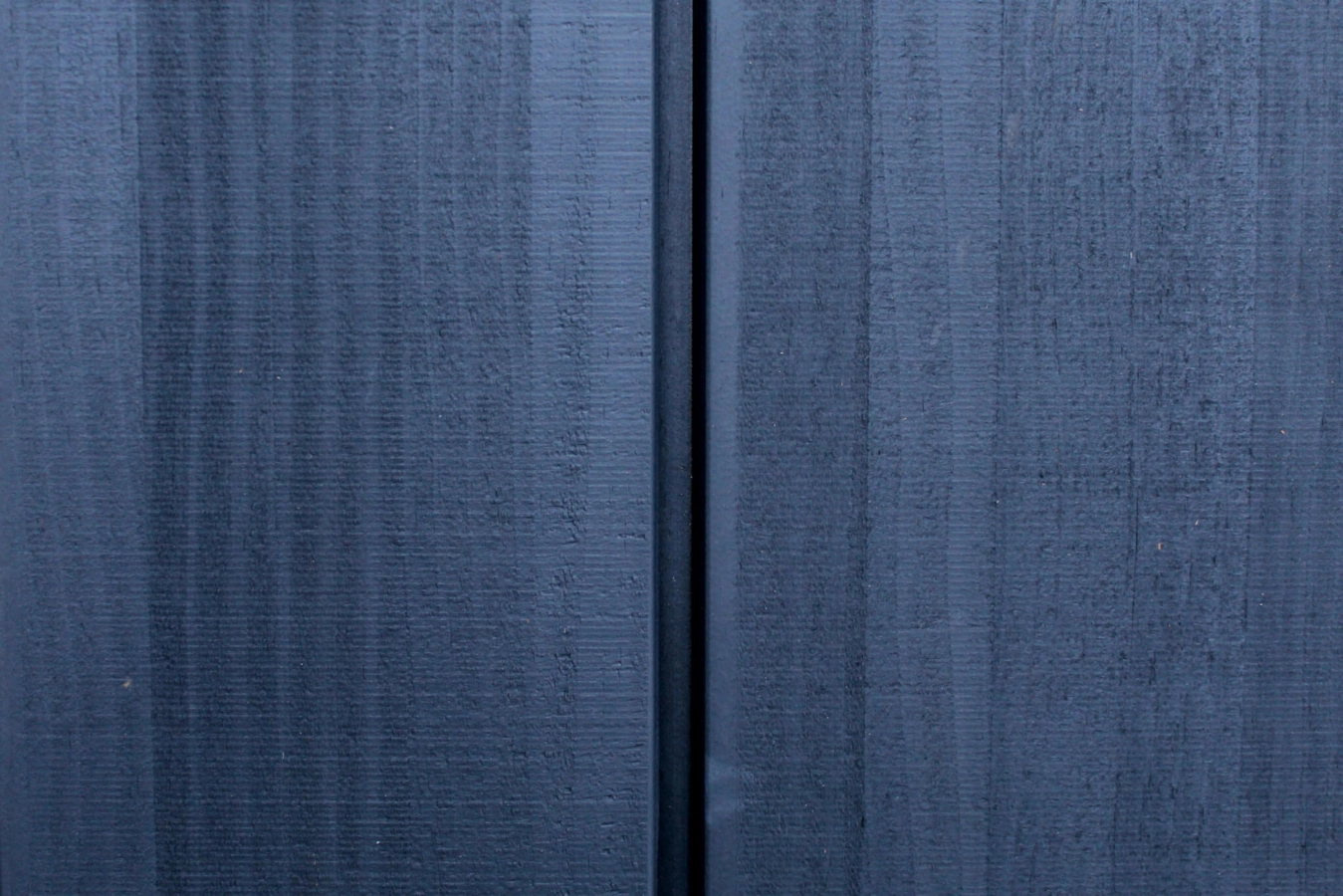

Spey

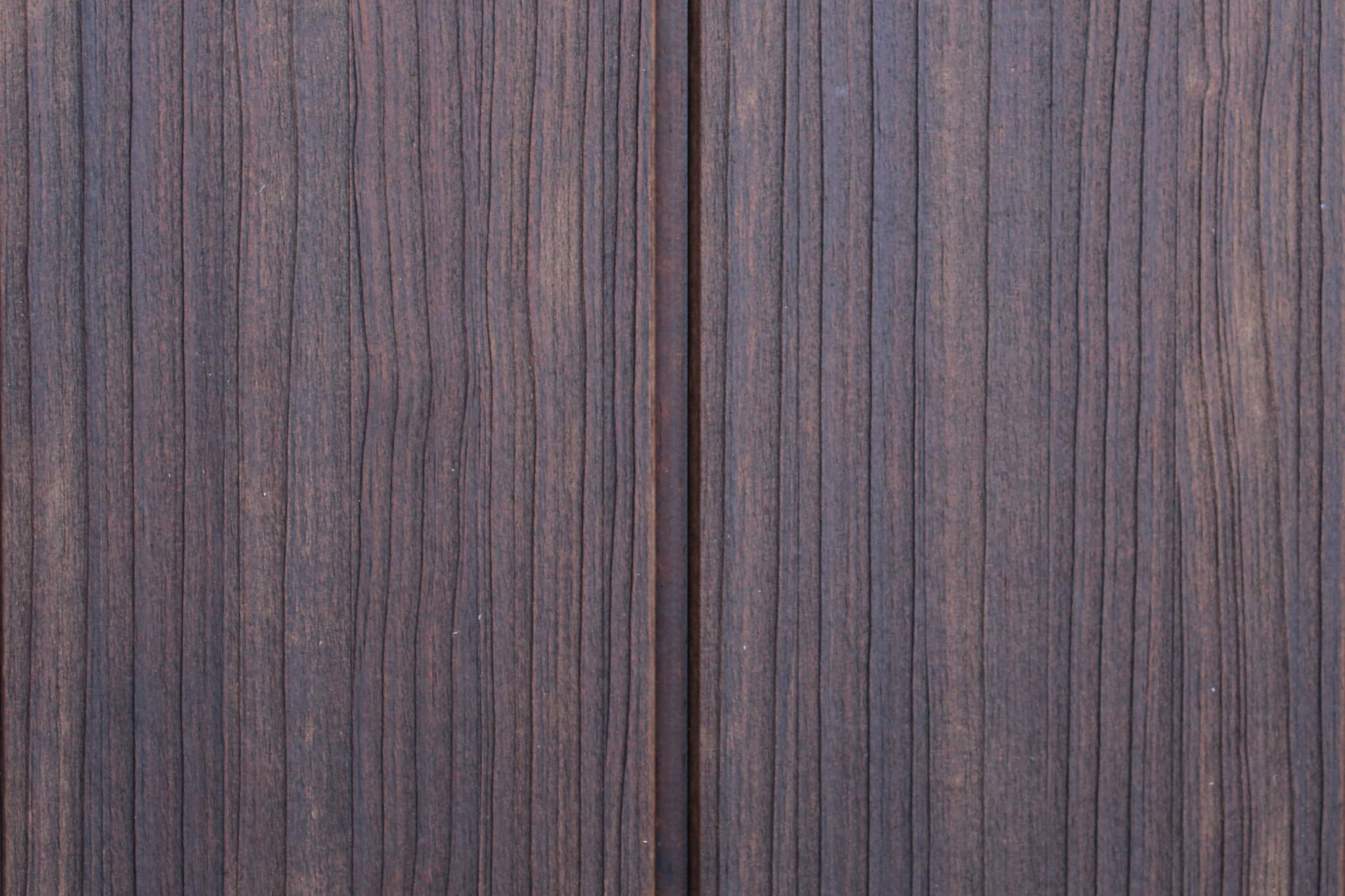

Rúm

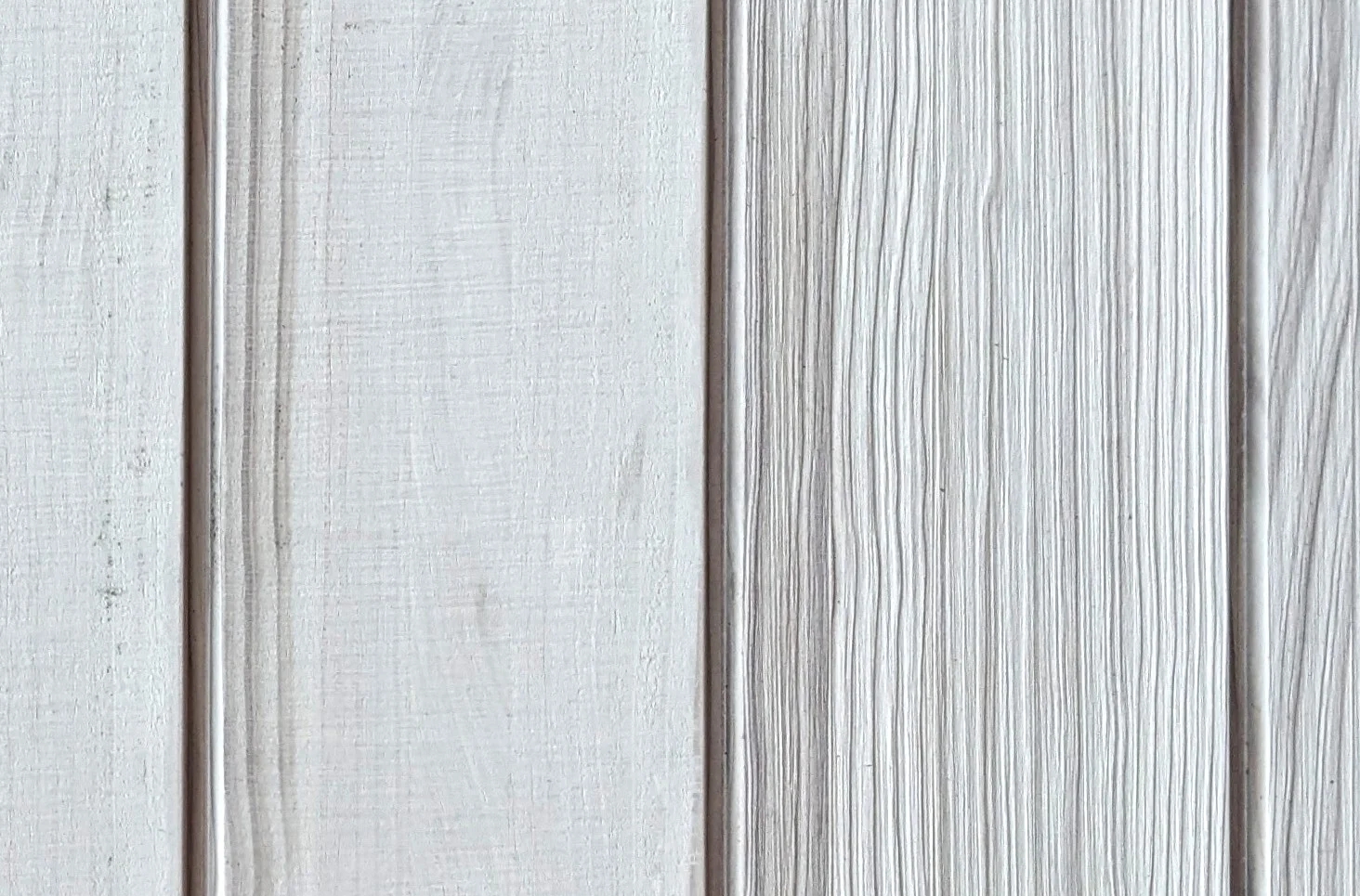

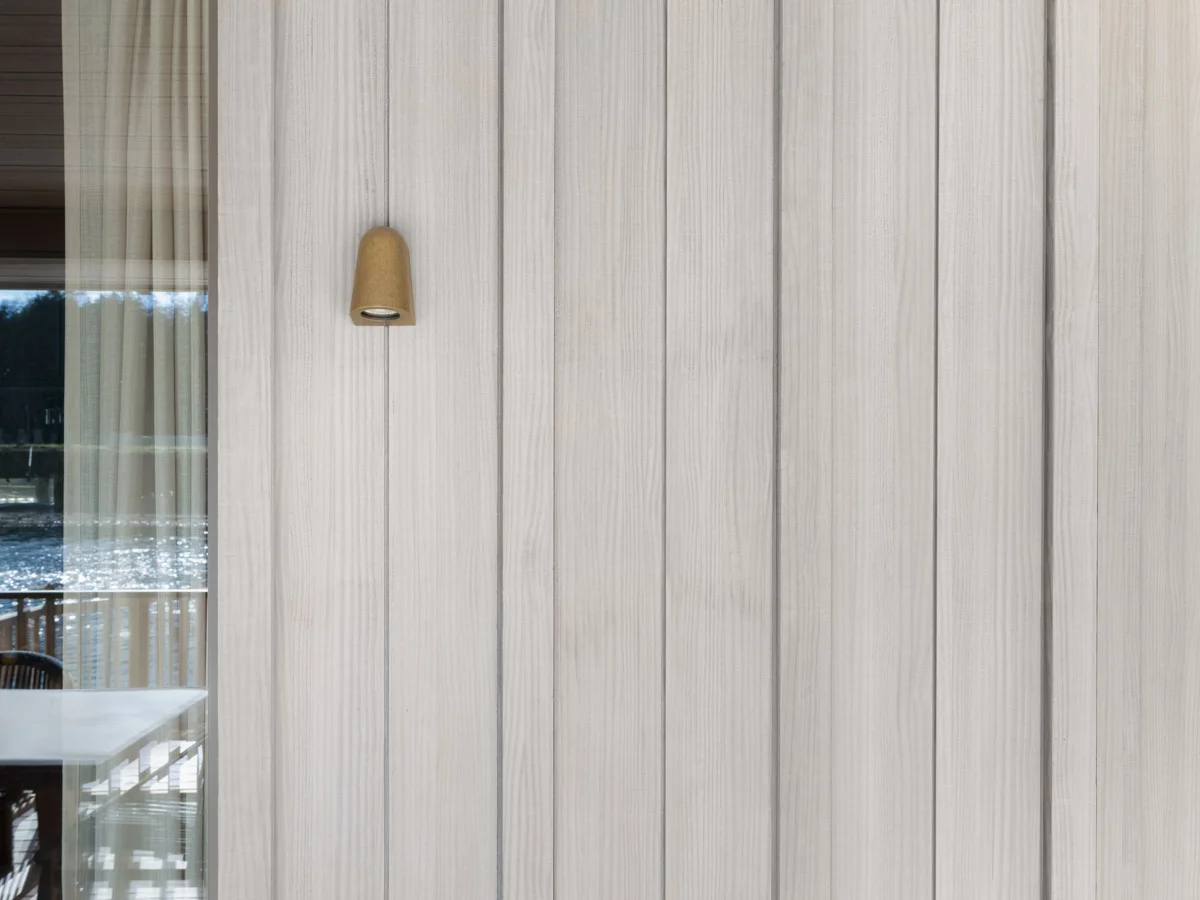

SiOO:X Light Grey

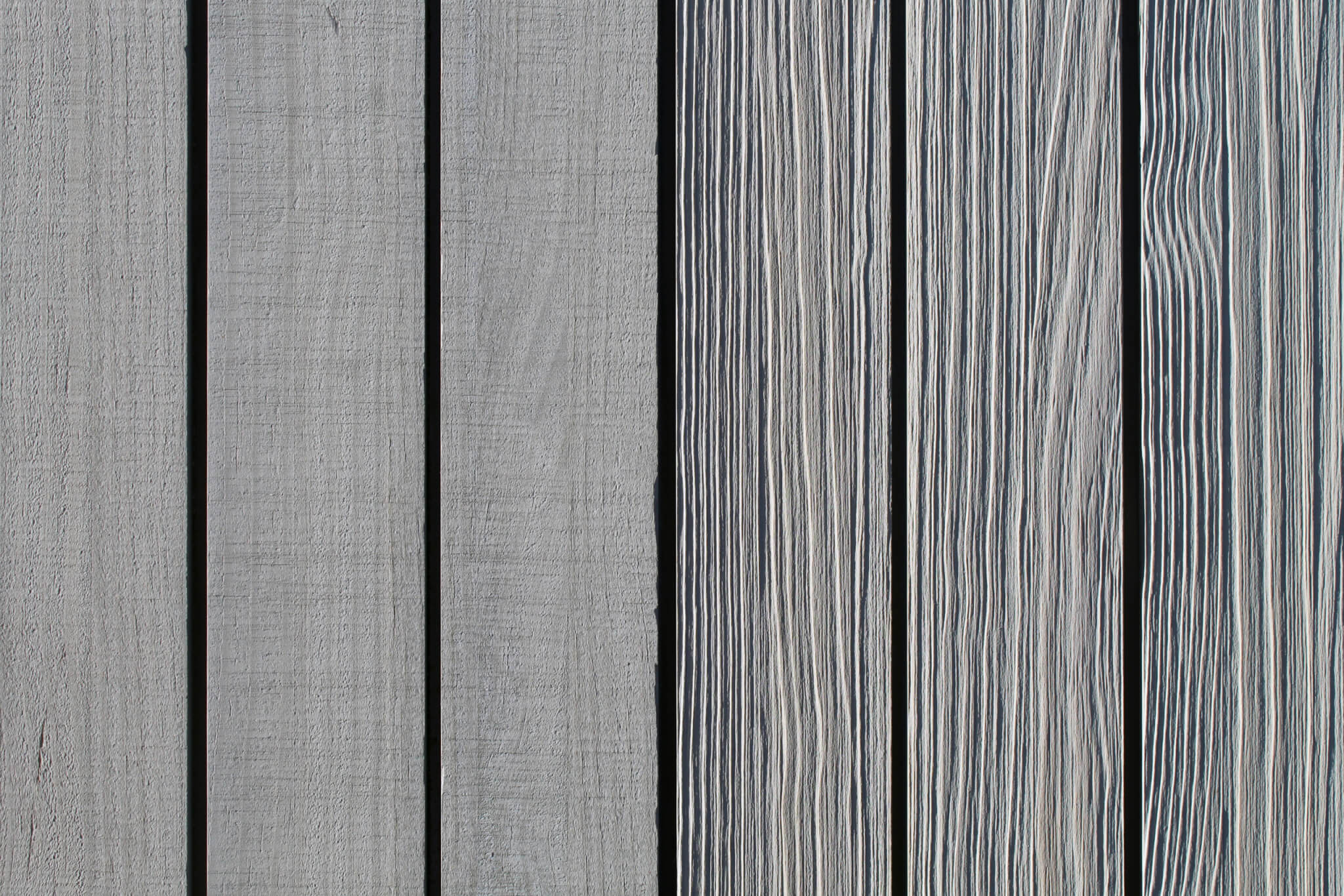

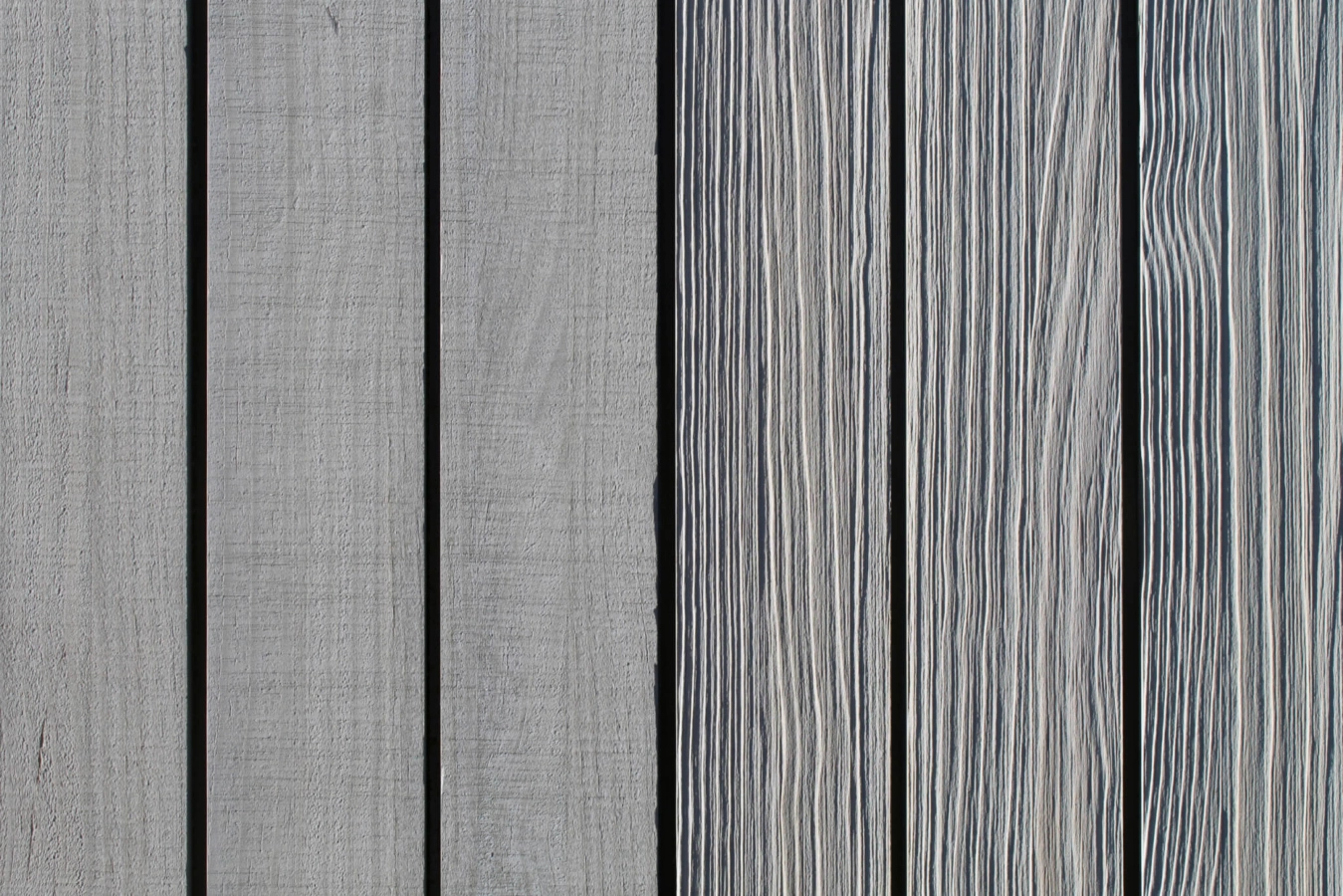

SiOO:X Mid Grey

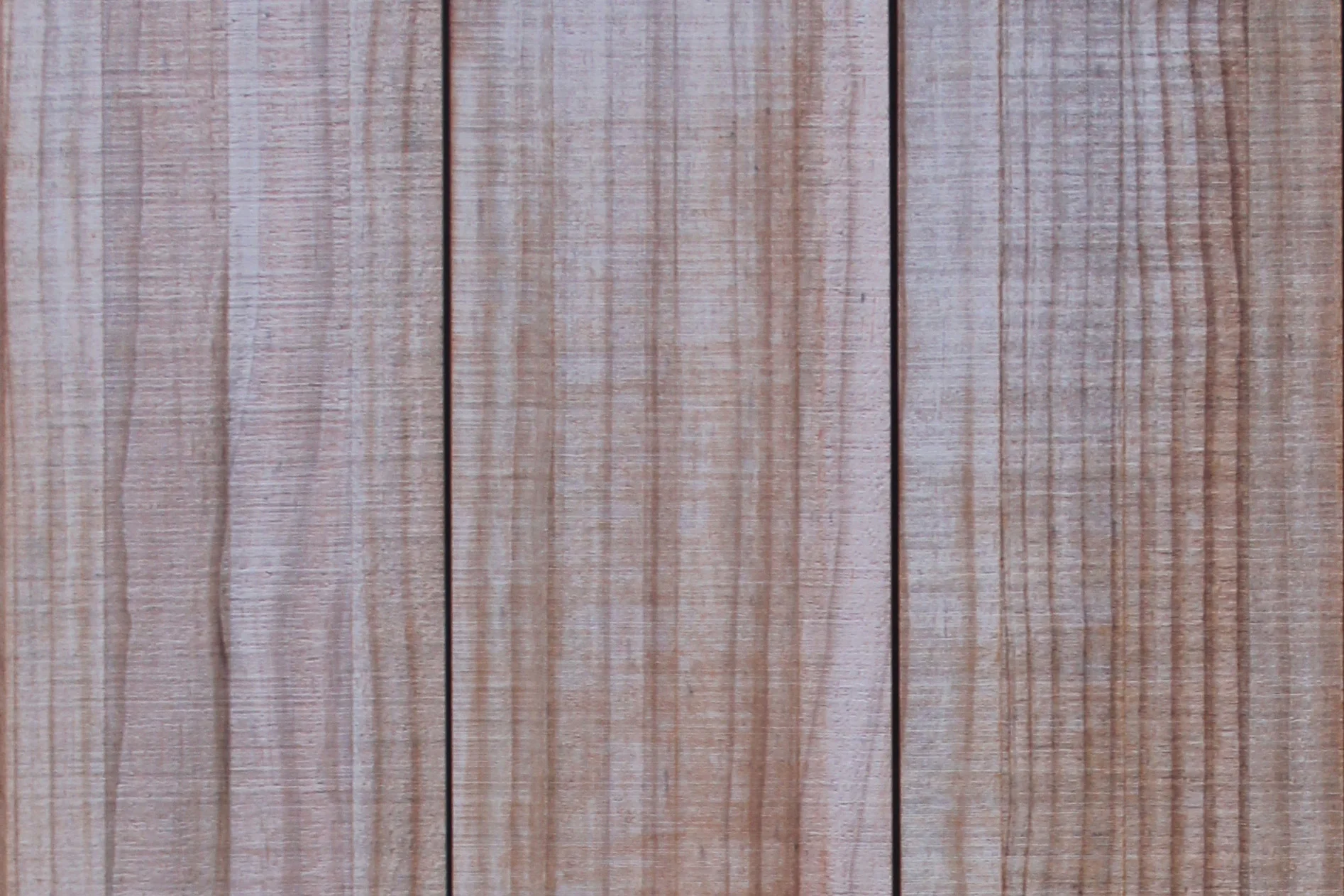

Uncoated
Next steps
Downloads

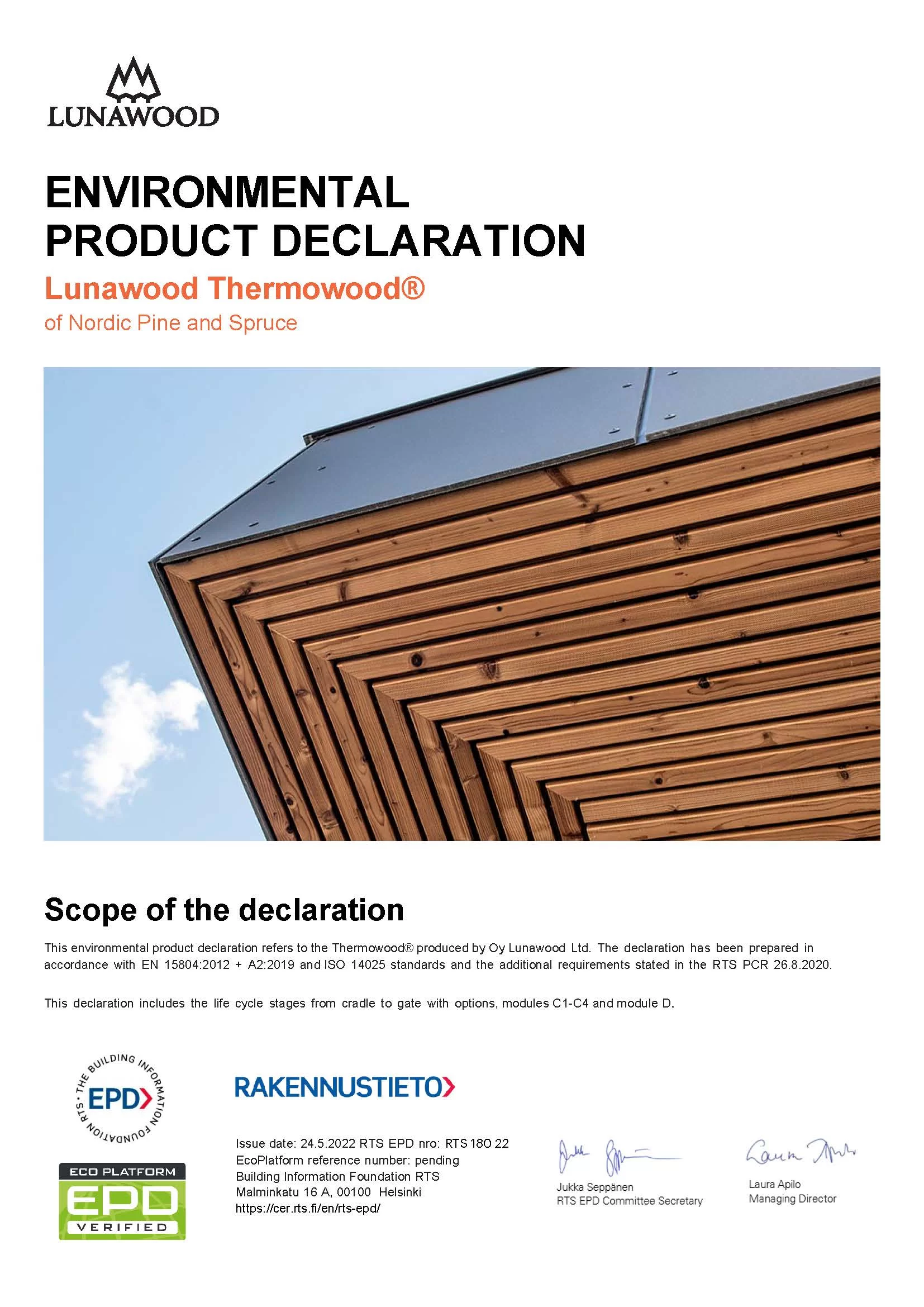

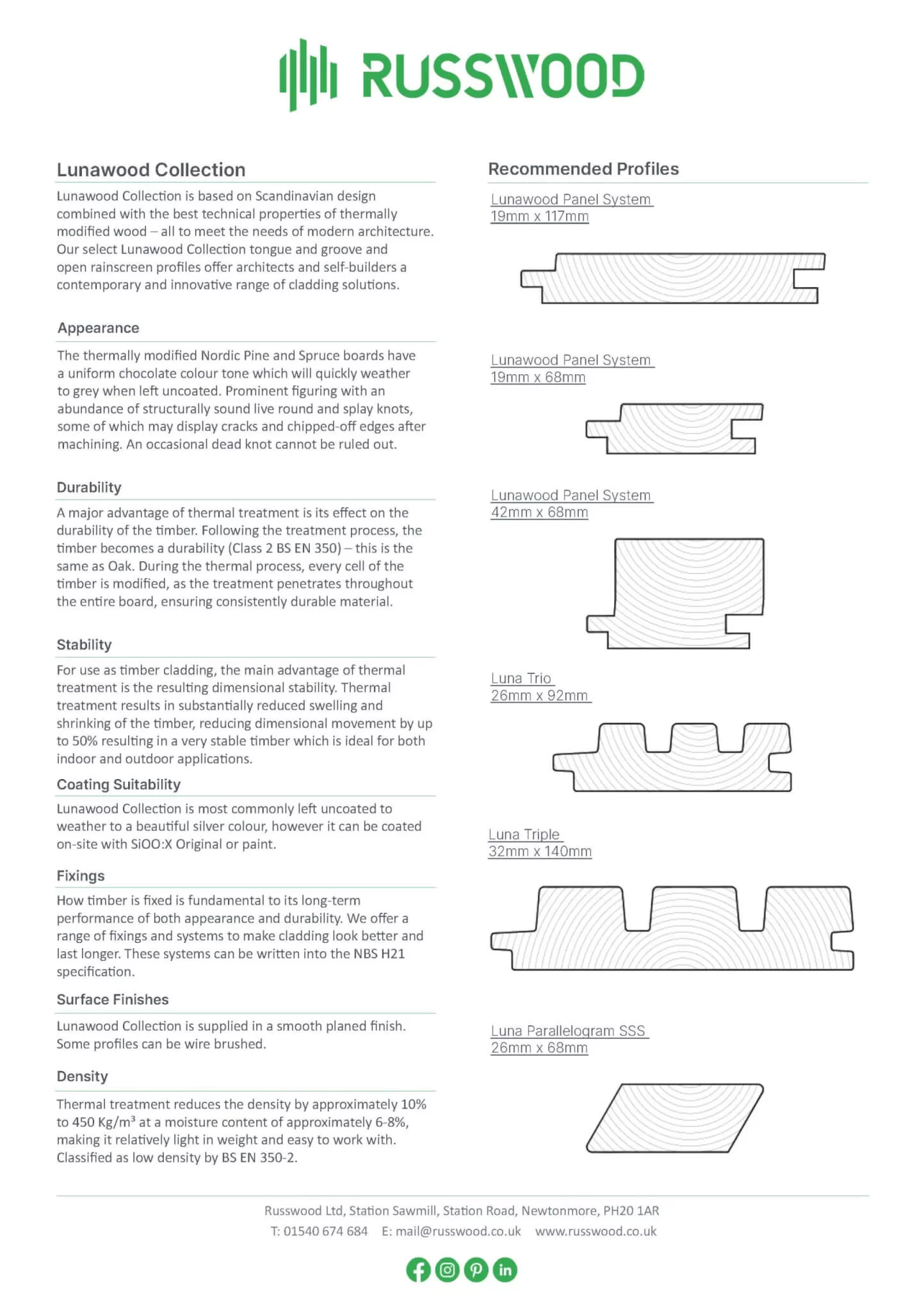

Download Environmental Product Declarations and species factsheet.
Abodo® Vulcan Vertical Grain Downloads
Architects & Specifiers
We offer a range of services to help with specifying our products.
Get a quote
Get in touch with our sales team to discuss your project.
Profile options

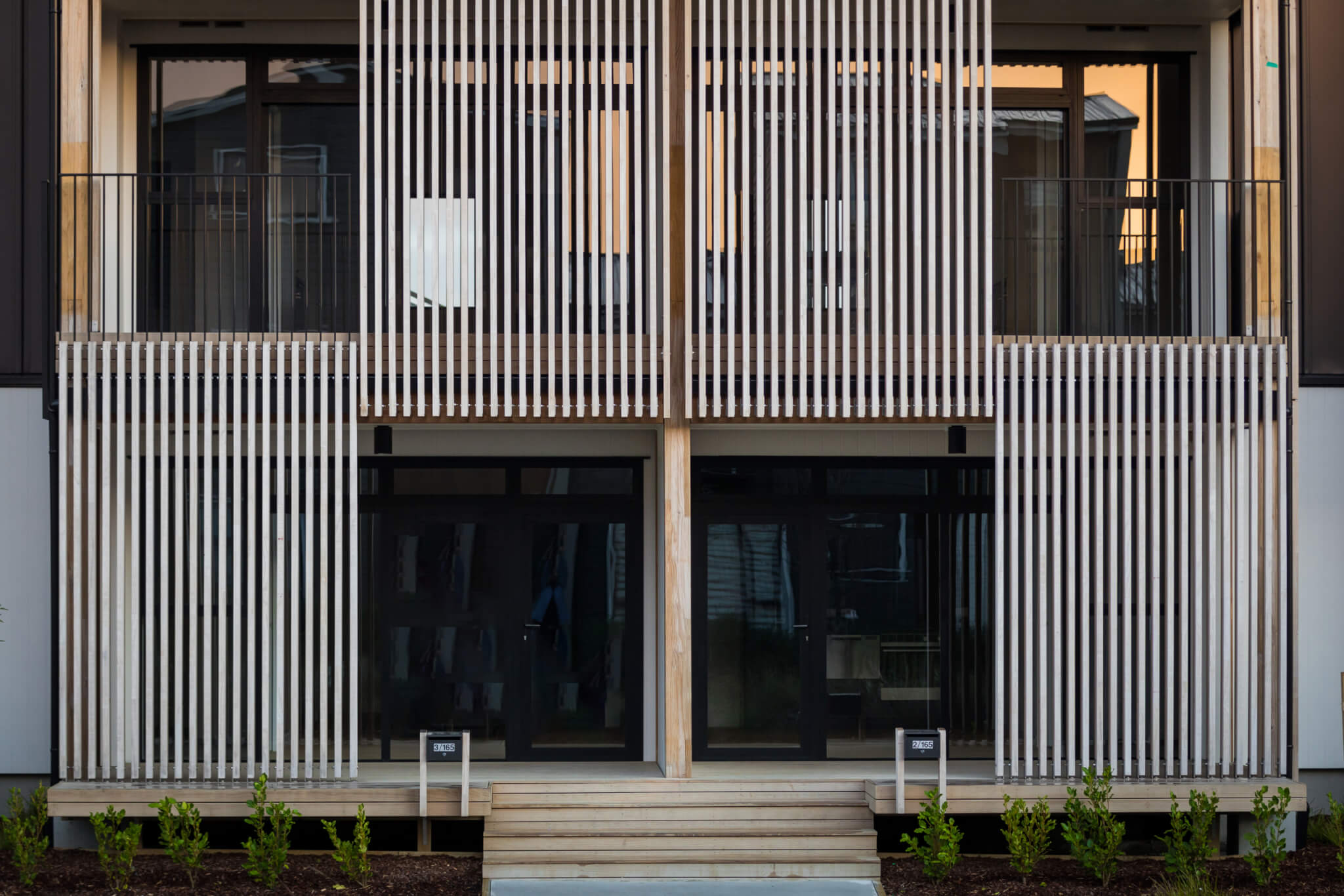

Choose from our standard profile options below, available in various lengths, including fixed lengths, to suit your project needs. We can also produce custom profiles to suit specific project requirements. We stock oversize blocks (e.g. 146 × 147 mm, 192 × 200 mm) available for resawing to custom sizes for fins, louvres, screening or other applications.

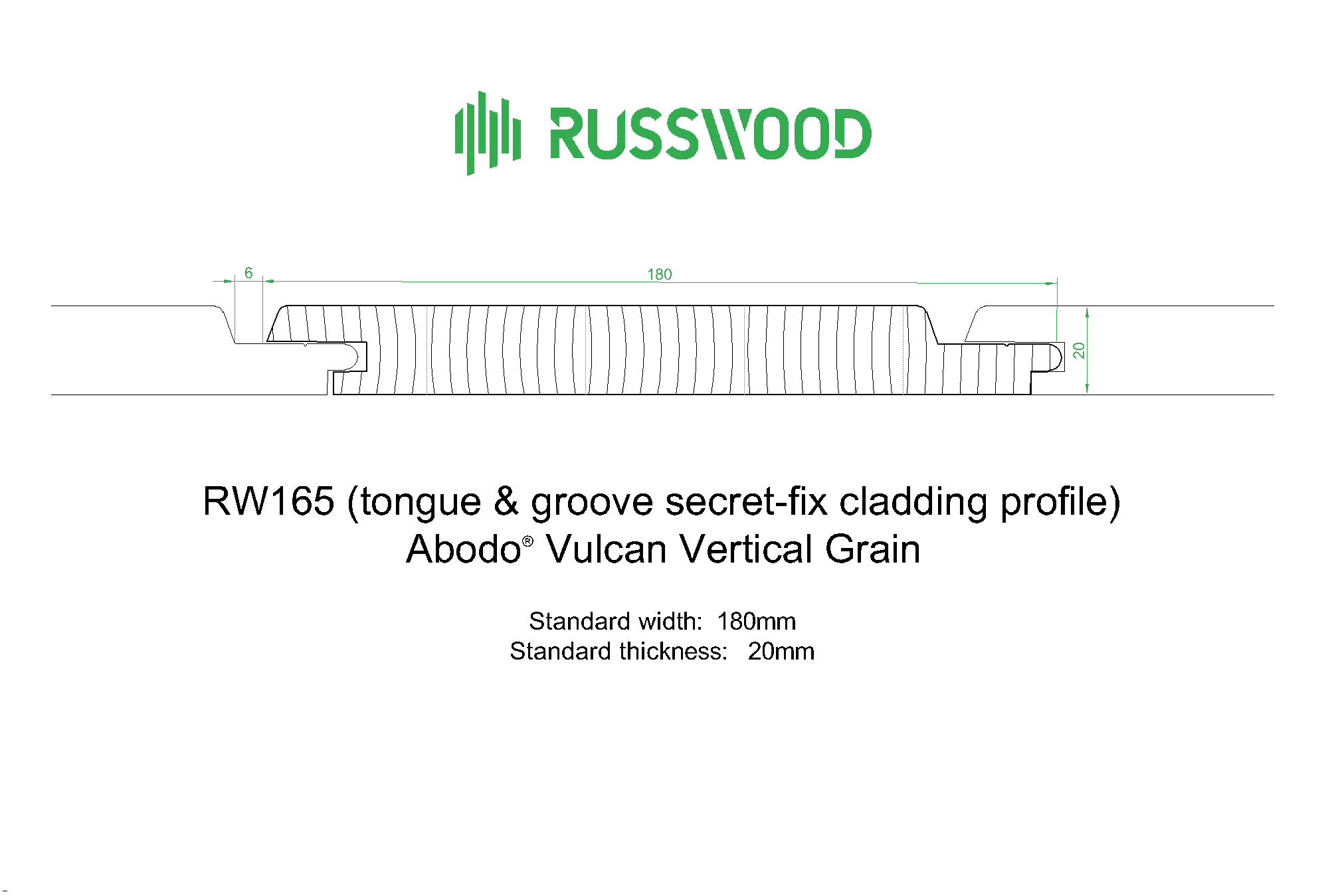

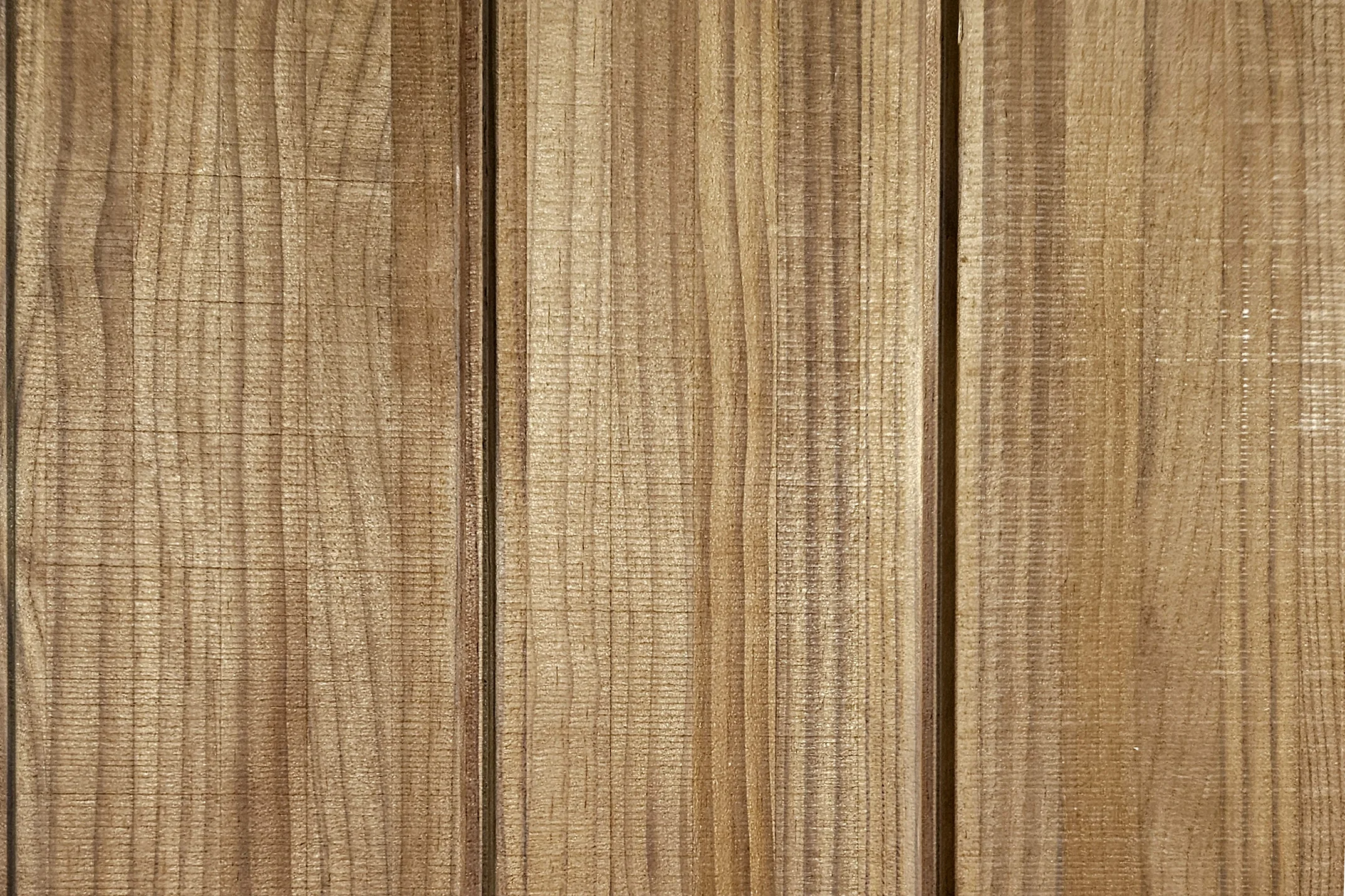

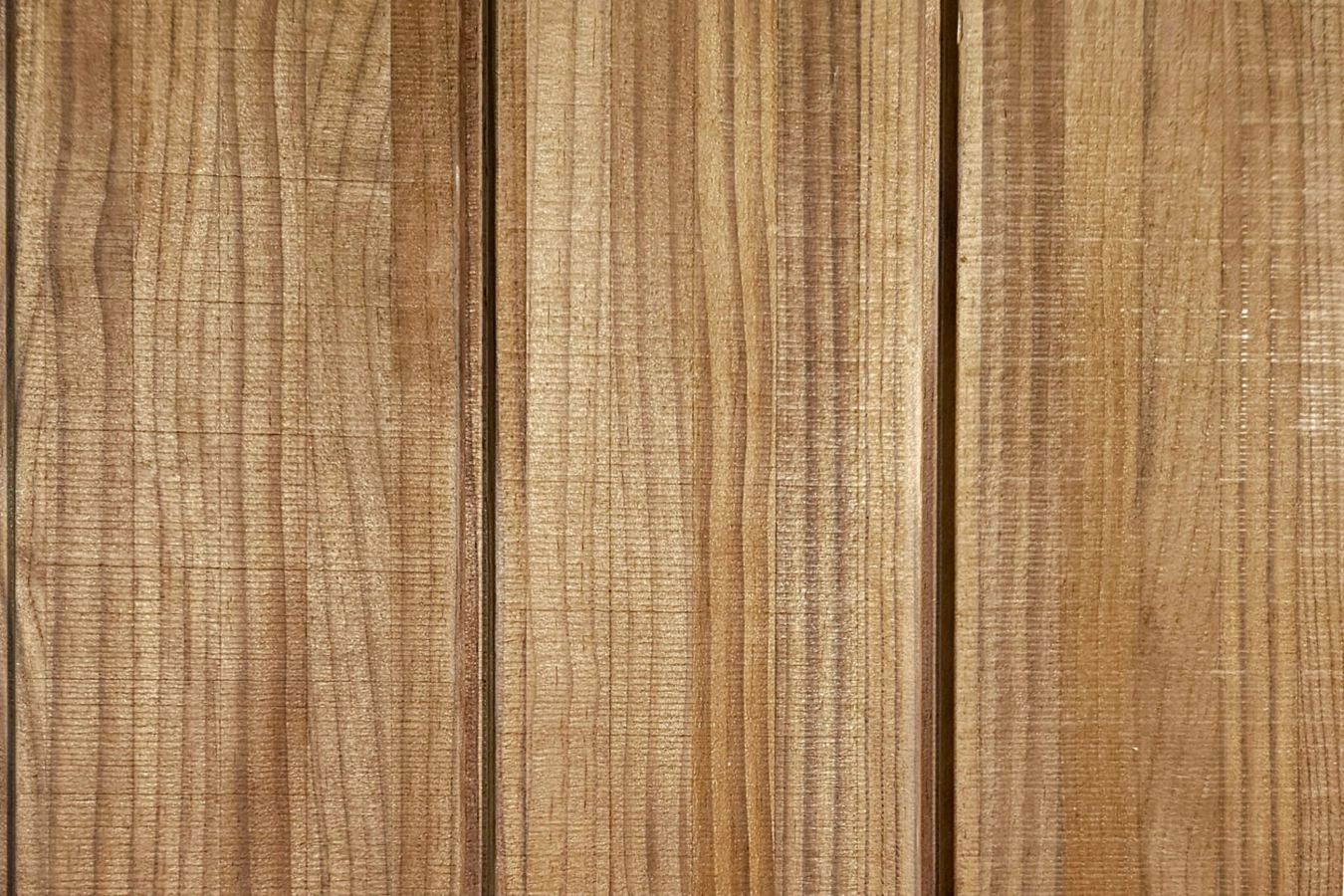

RW165
Standard width: 180mm
Standard thickness: 20mm

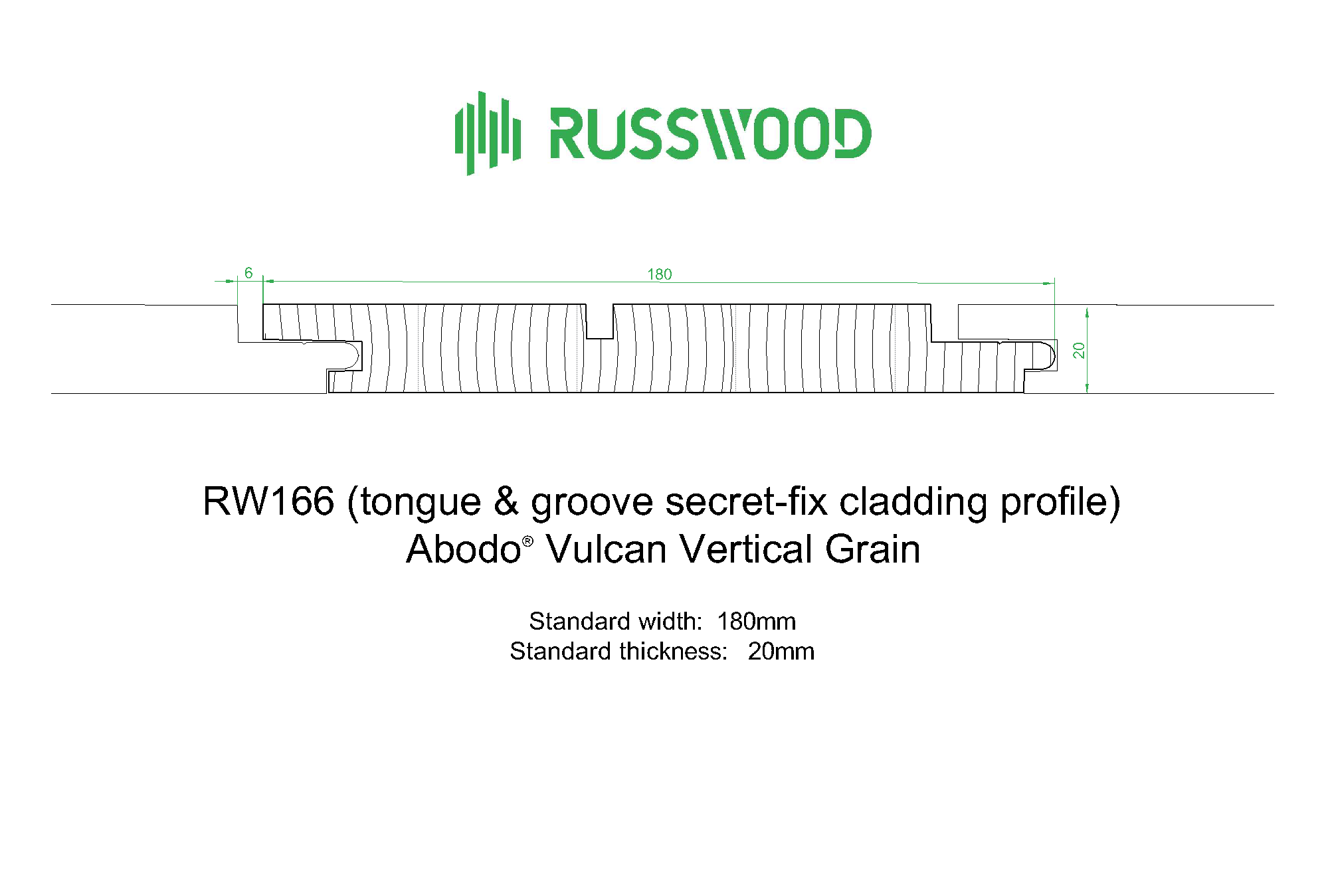

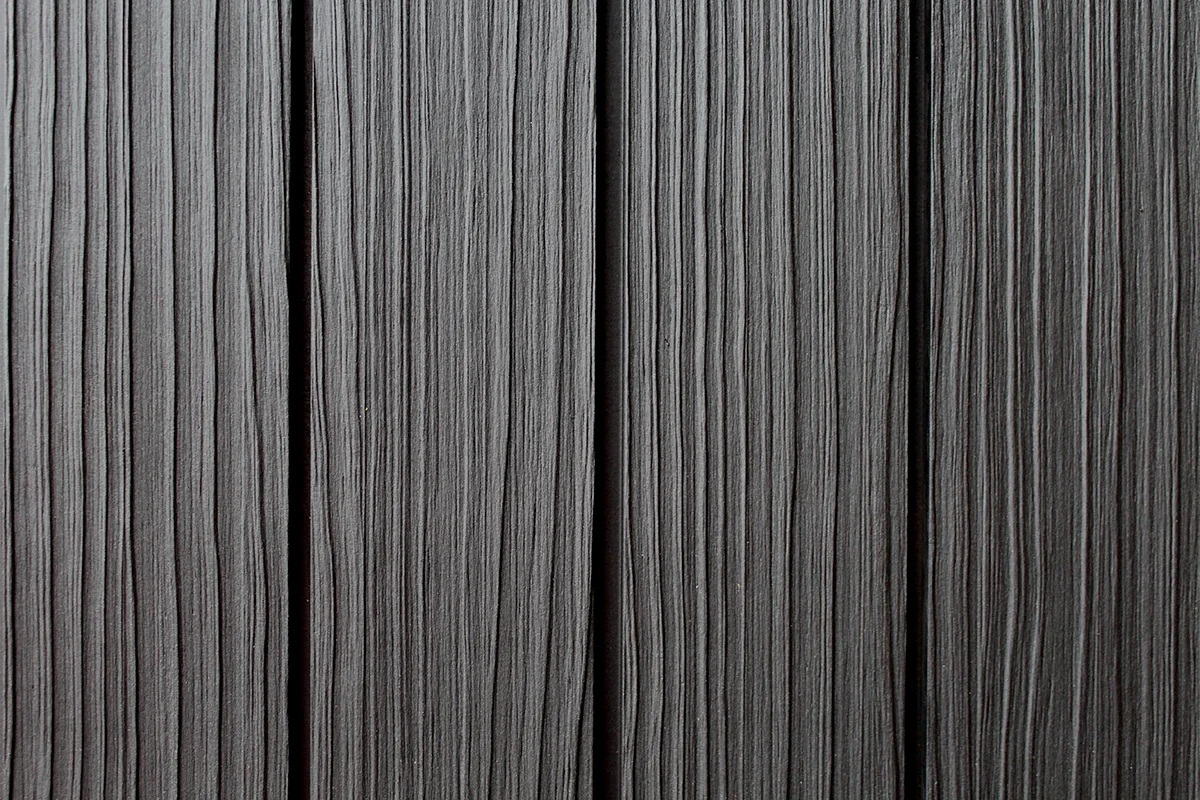

RW166
Standard width: 180mm
Standard thickness: 20mm

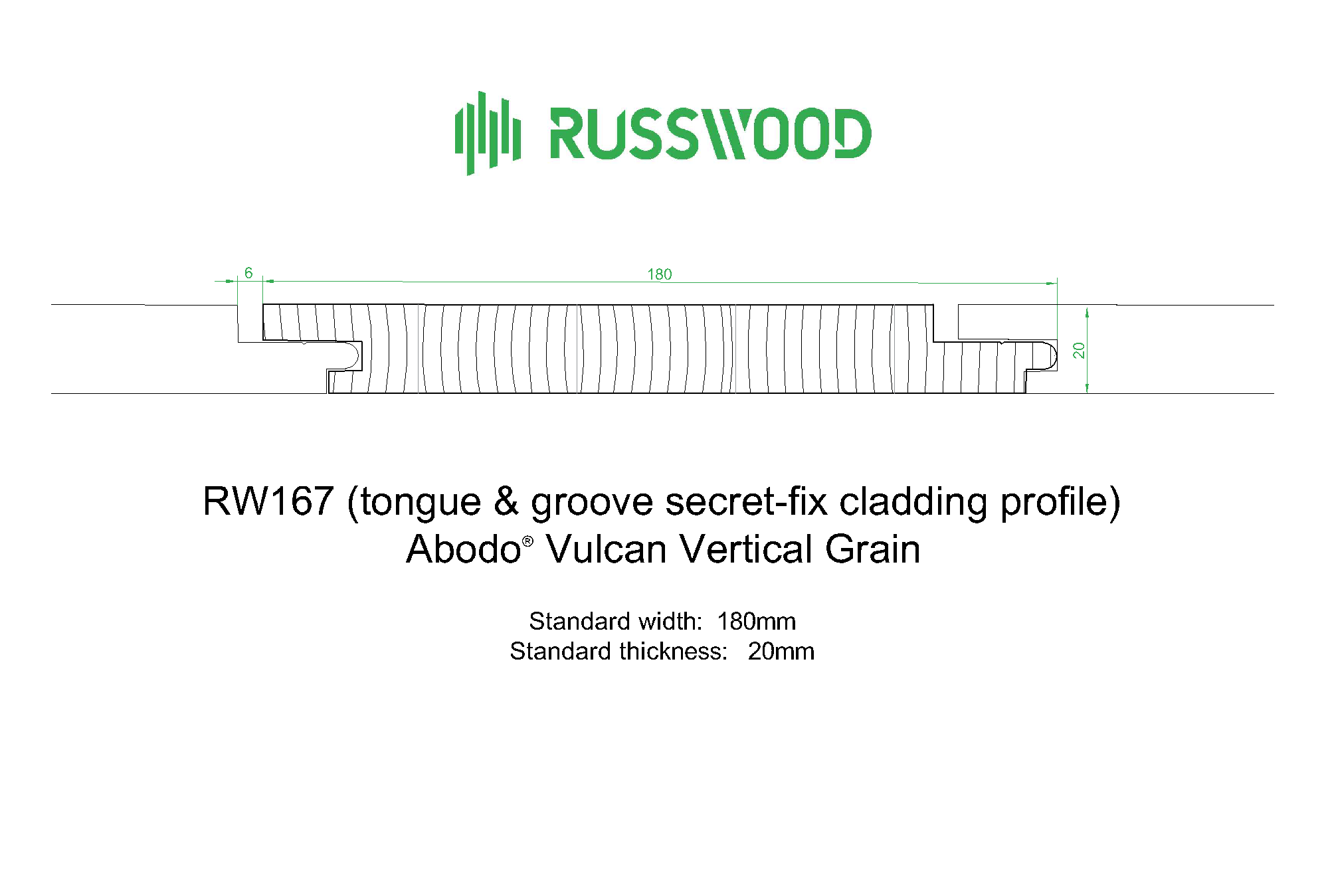

RW167
Standard width: 180mm
Standard thickness: 20mm
Ready to Despatch

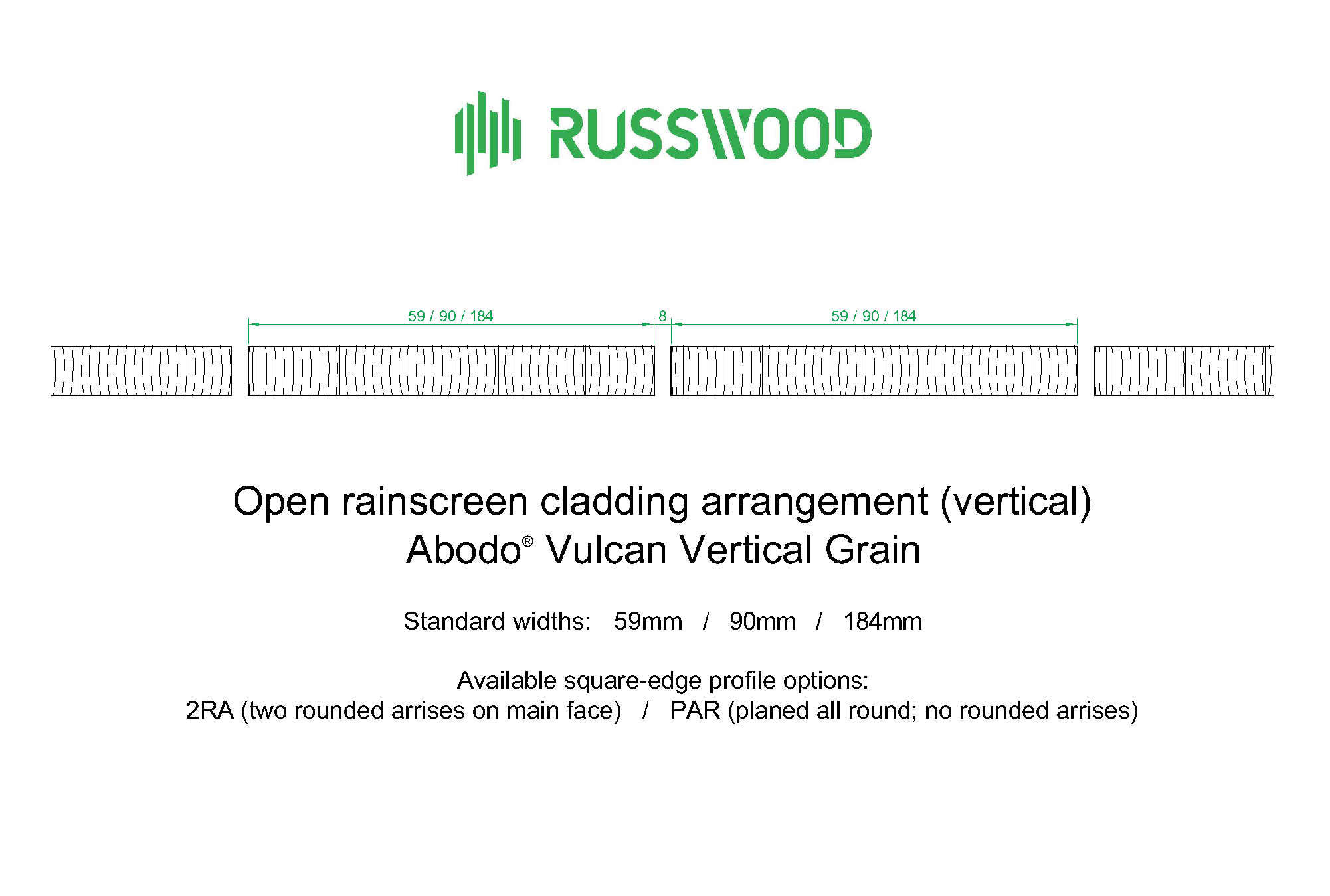

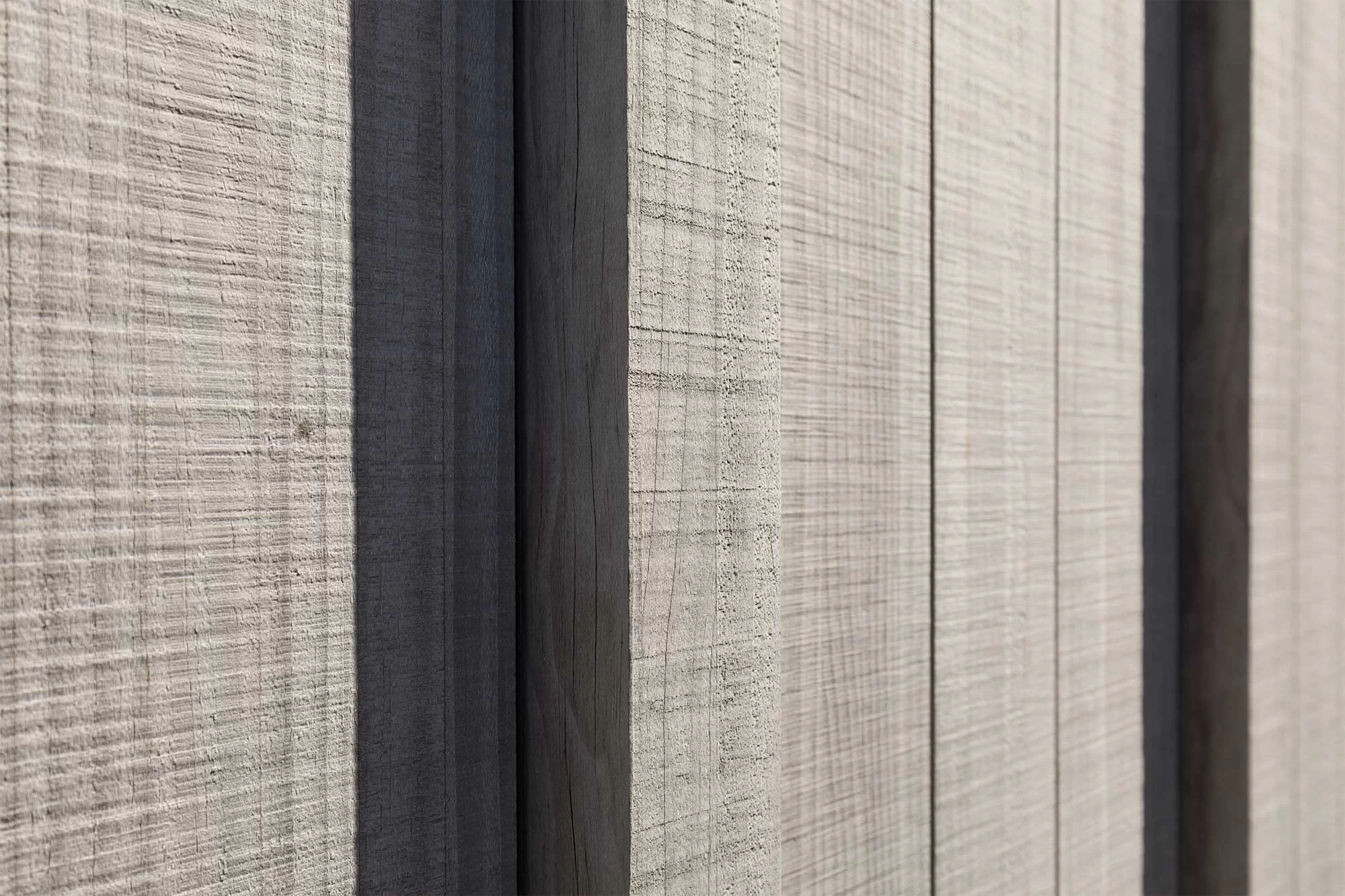

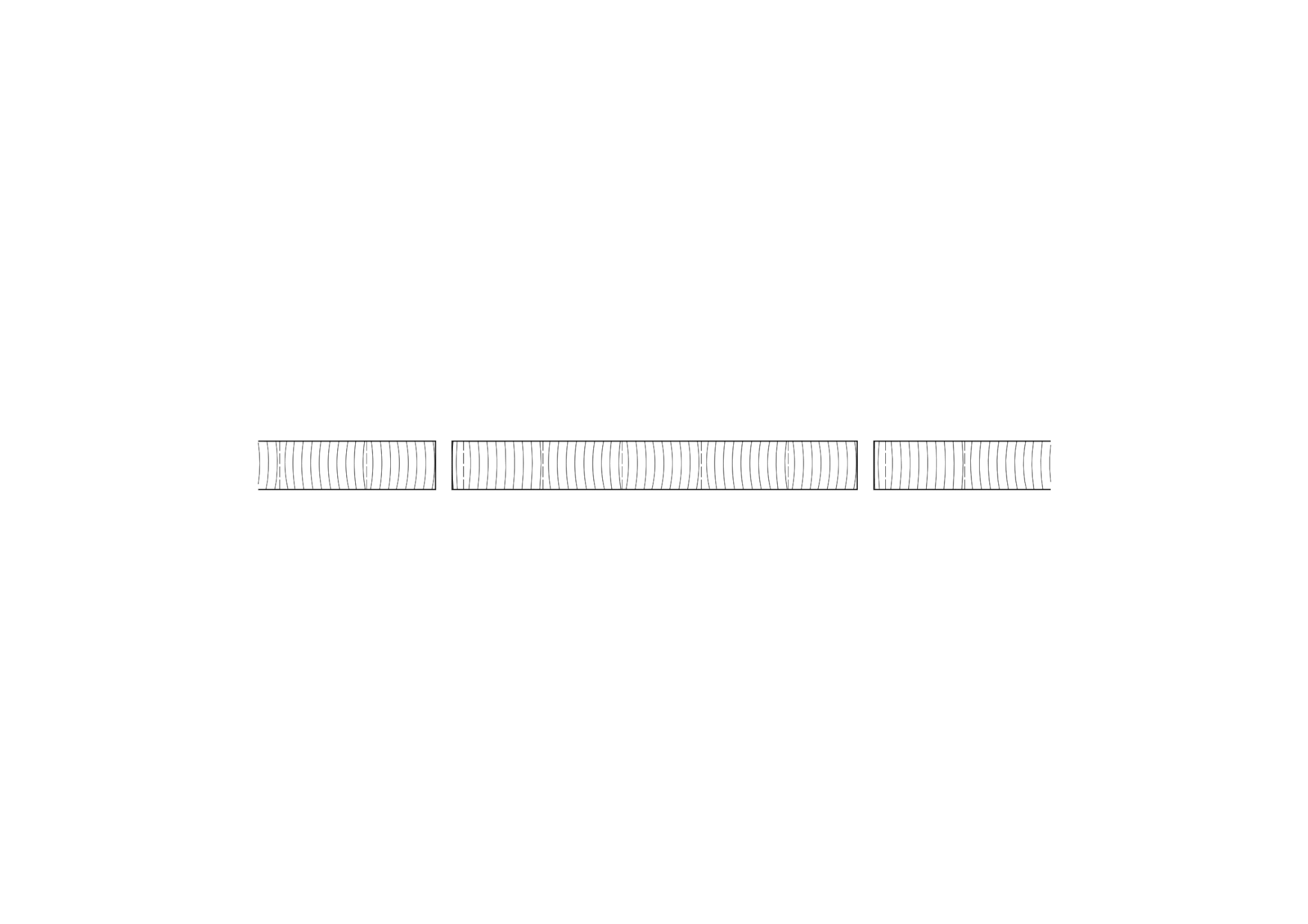

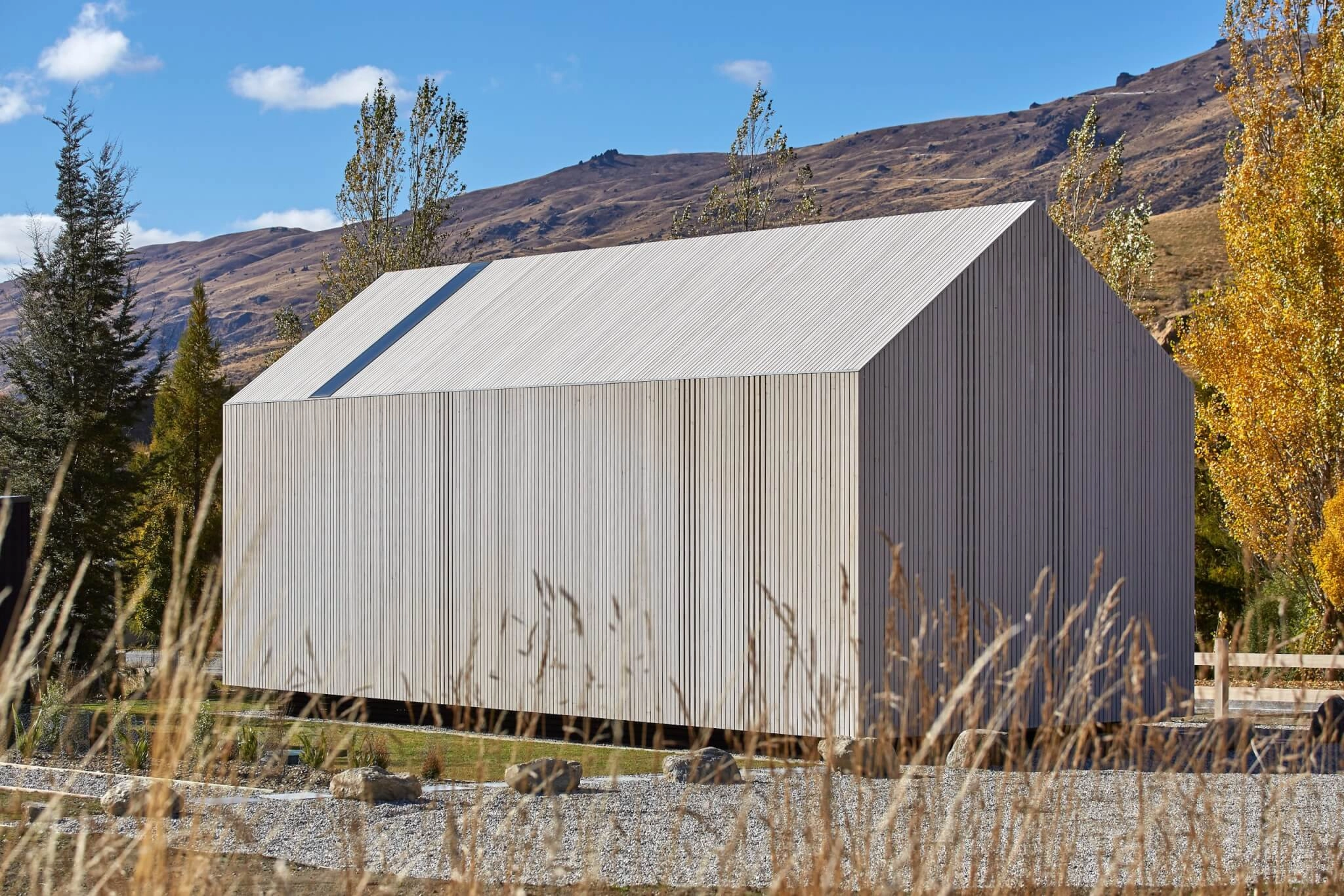

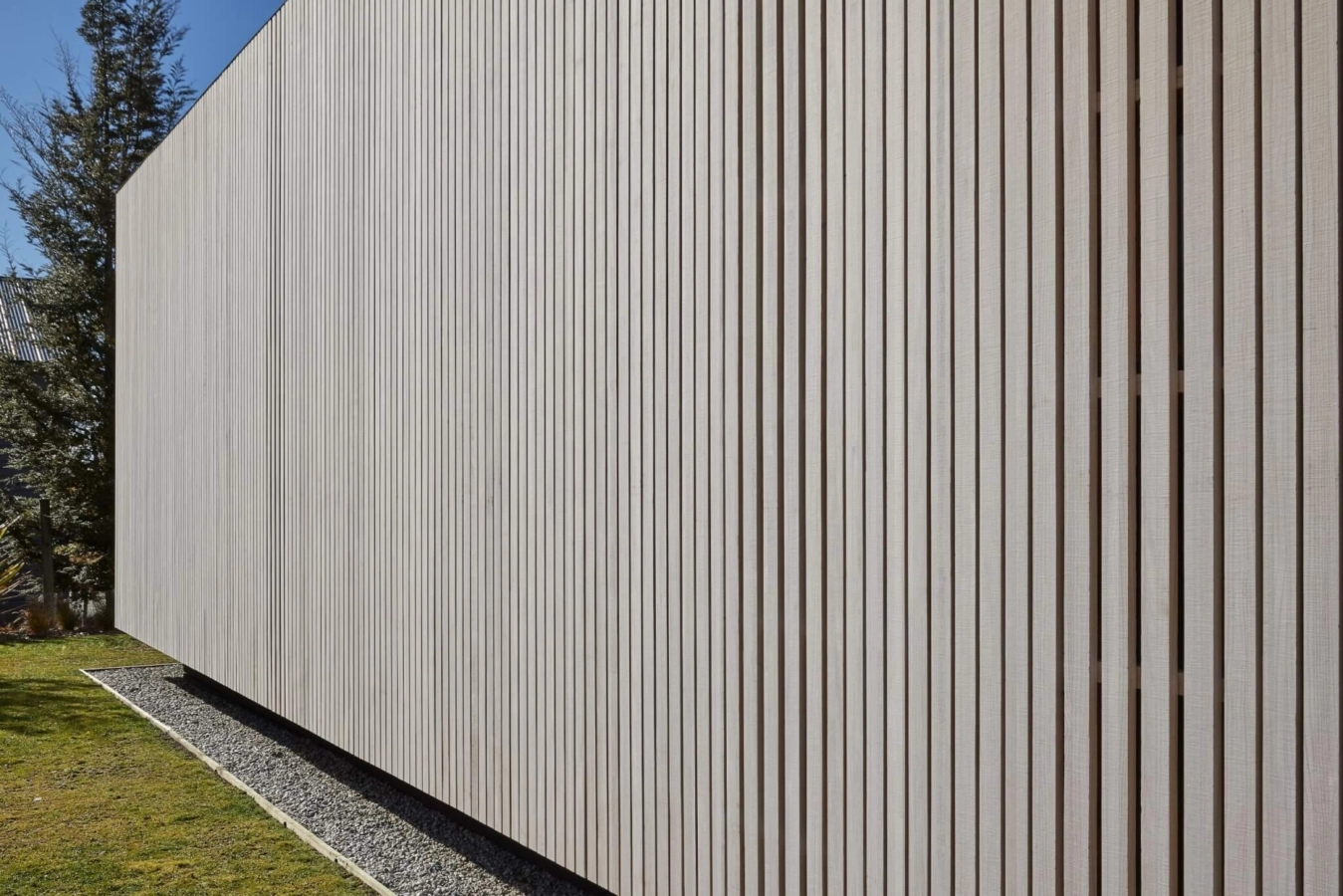

Open rainscreen
Standard widths: 59mm / 90mm / 184mm
Ready to Despatch

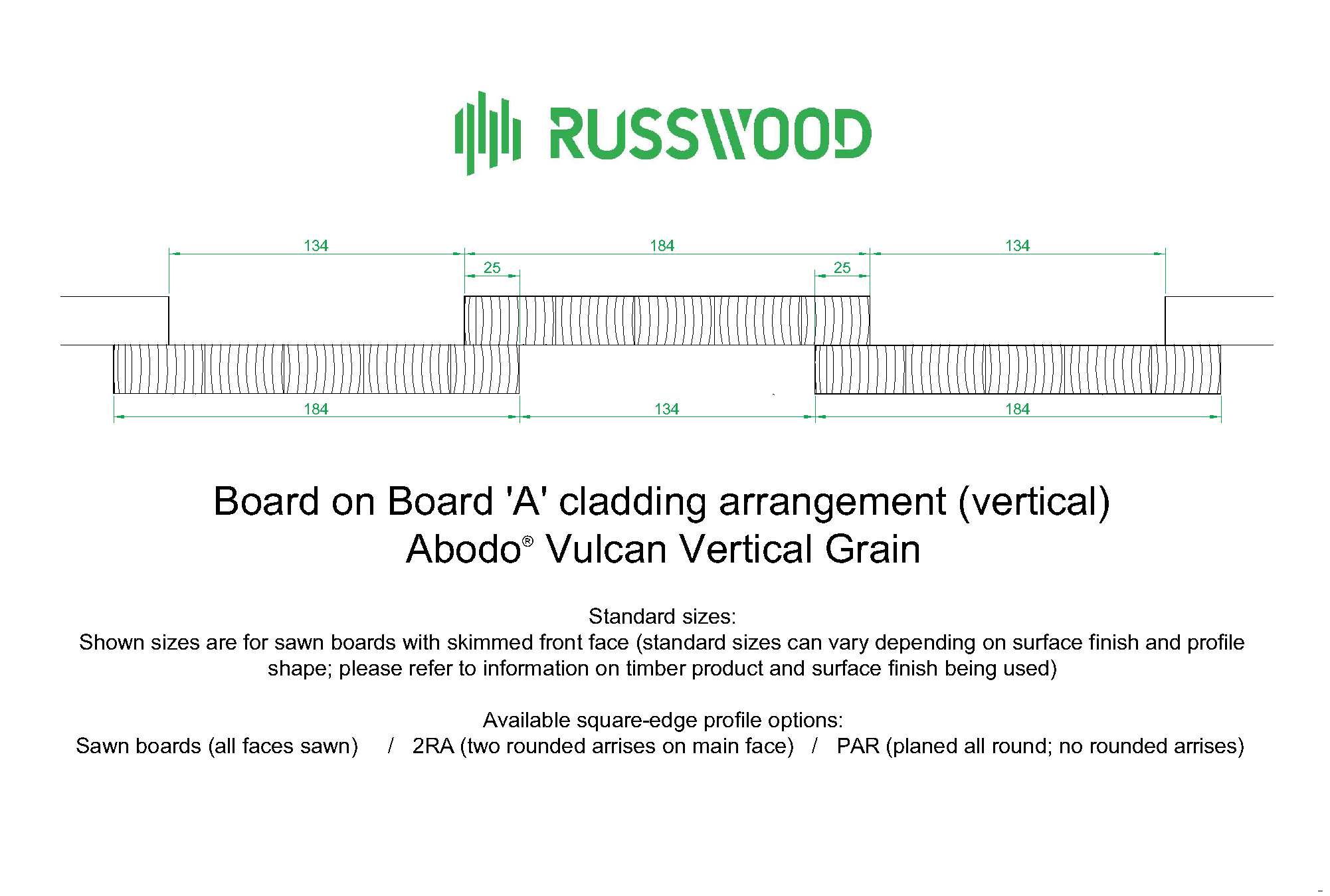

Board on Board
Standard widths: 59mm / 90mm / 184mm
Recommended fixing systems
How timber is fixed is fundamental to its long-term performance, influencing both its appearance and durability. Each Russwood species, profile and layout combination has a recommended fixing system, with detailed drawings available to help ensure the timber performs and looks its best for years to come. These are the recommended fixings for use with Abodo Vulcan Vertical Grain.

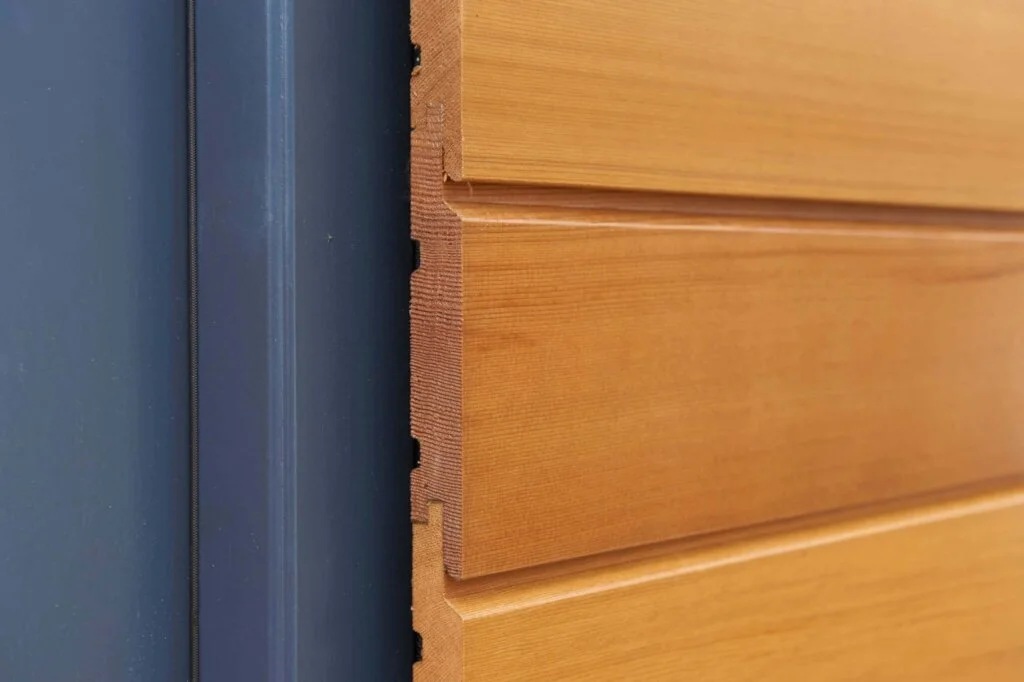

F-BohrFix® ZB screws
Secret fix
Cladding screw for effective fixing and neat detailing

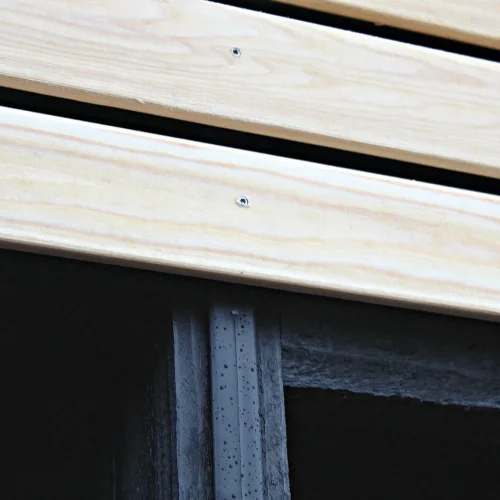

KompeFix®
Face fix
Compensation strip designed to prevent direct contact between timber elements.

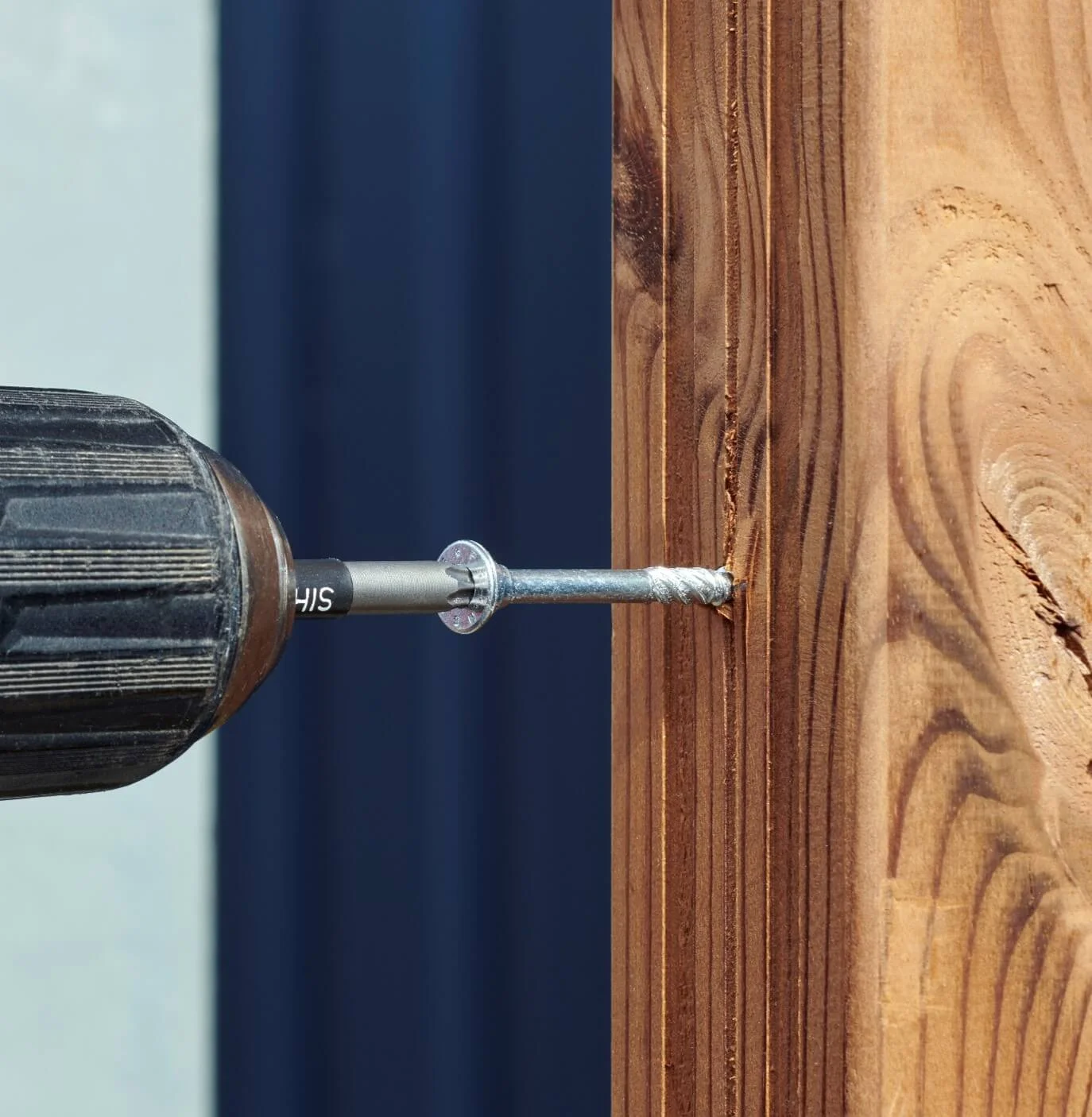

Russwood Battening System
Substructure
Non-toxic, engineer-assessed, method of fixing timber cladding. Circular economy ready.

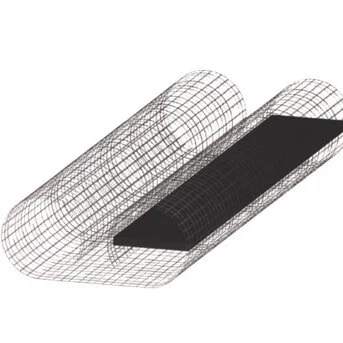

Firebreather® Cavity Barrier
Substructure
Firebreather Cavity Barrier is a patented two component product consisting of a stainless steel mesh and an intumescent strip
Questions?
With so many timber species, dimensions, profiles, coatings and fixing options to choose from, the possibilities are almost endless – which is exactly why pricing isn’t one-size-fits-all. To give you an accurate price, we first need to know more about your project.
Get in touch with our sales team for up-to-date pricing tailored to your specification. We’ll talk through your requirements and guide you to the best solution for your project and budget. To compare our cladding ranges, explore indicative price bands (£–££££) using our Compare Cladding Tool.
Yes, Russwood’s dedicated Specification Team can assist architects with selecting the best timber cladding species, coatings and fixings for their projects, ensuring both the performance and aesthetic requirements are met. We can also assist with writing the H21 (external timber cladding) National Building Specification (NBS). Find out more about the services we offer to architects.
To receive a quotation or place an order, get in touch with our sales specialists who will be happy to assist.
Samples can be ordered by contacting our sales specialists who can assist with selecting the most suitable cladding for your project and send out appropriate samples.
Our handy Cladding Comparison table allows you to compare species information and timber properties at a glance.
We offer UK wide delivery on all of our products. Please contact our sales specialists for a quote.
We can offer Abodo Vulcan Vertical Grain in various lengths from stock, ranging from 2.4 – 5.7m, to suit your project needs. Fixed lengths are available. Please speak to a member of our cladding sales team for more information
Expert View
With a beautiful straight grain, and superior dimensional stability, this timber can withstand even the toughest environments.
