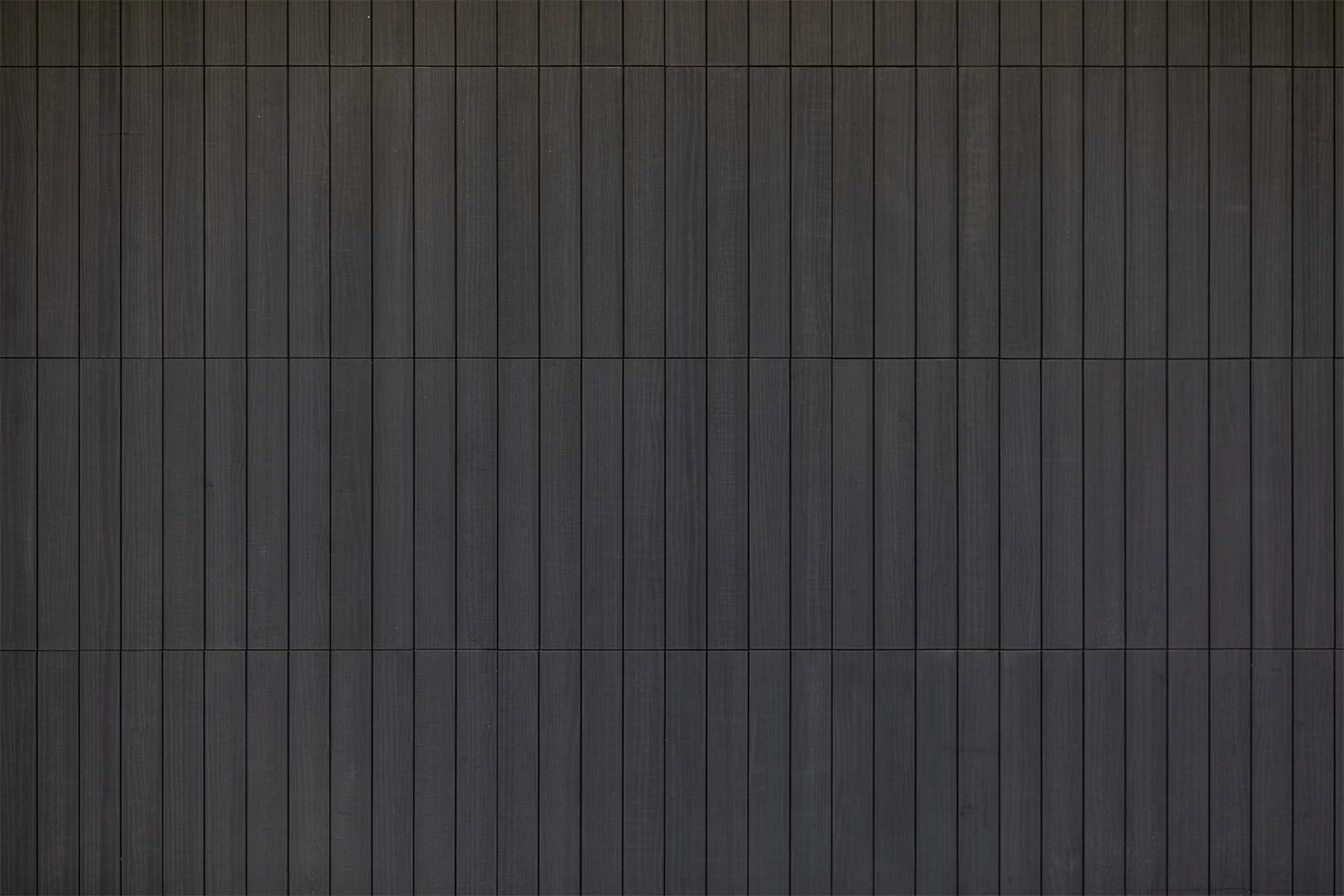

Abodo® Vulcan Vertical Grain

Abodo Vulcan Vertical Grain is a premium exterior cladding option, known for its sustainability and high quality, making it ideal for projects where both aesthetics and environmental impact are priorities. This exceptional cladding option is crafted from thermally modified Radiata Pine – a sustainably sourced, fast-growing timber. Through heat-treatment, the timber gains enhanced stability and durability, which in turn offers optimal coating performance. Abodo Vertical Grain cladding is an ideal choice for architects and homeowners who are seeking a high-performance, sustainable, and visually striking cladding solution.

At a glance

Species

Radiata Pine

Origin

New Zealand

Modified timber

Thermally modified

Grade

Abodo Vulcan Vertical Grain is a premium cladding product, created from thermally modified New Zealand plantation timber and engineered with a vertical grain construction.

Weathering

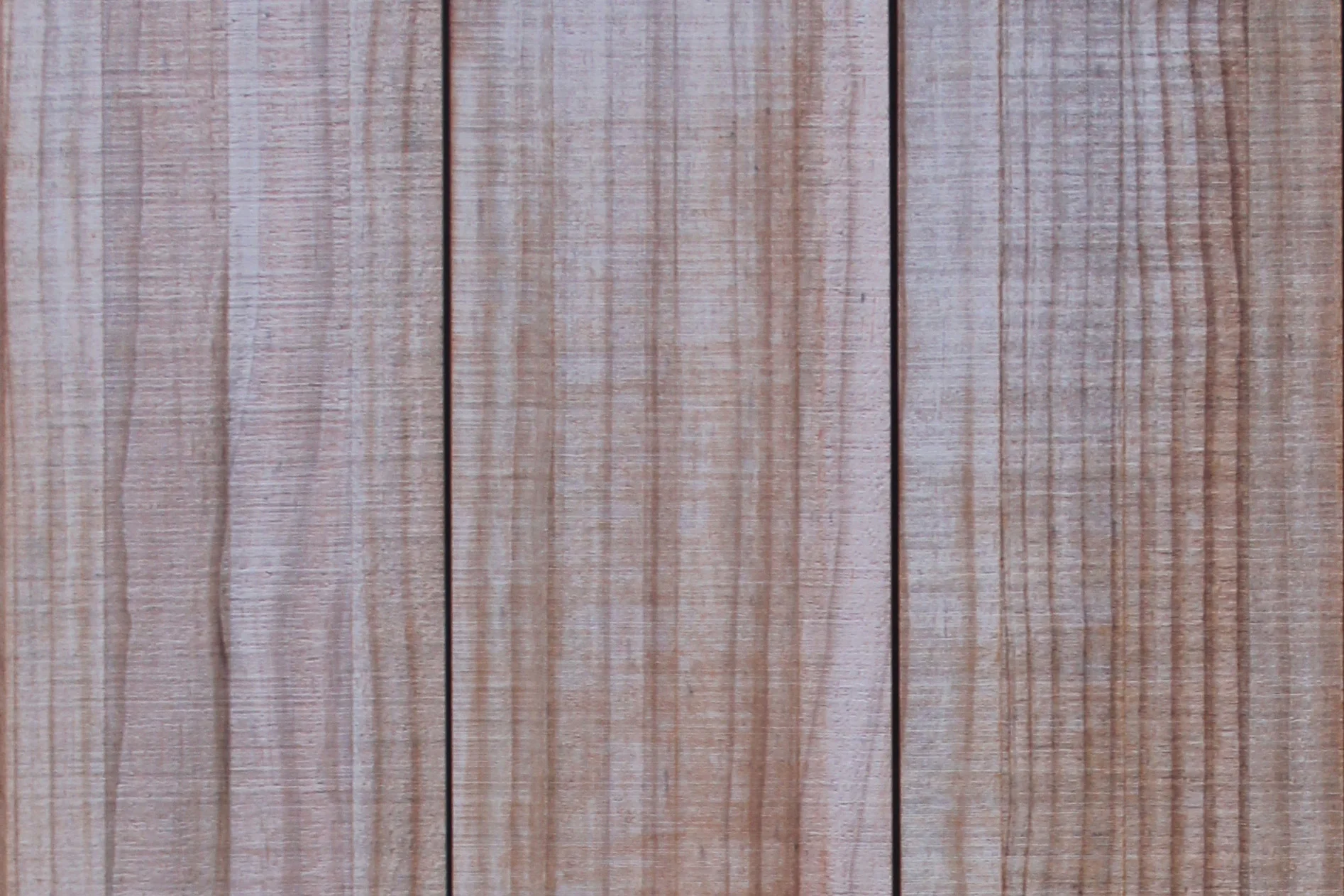

Abodo is usally supplied coated, however if left to weather naturally, Abodo will turn to a light grey colour over time.

Sustainability

Rapidly renewable species which is sustainably sourced from fast-growing New Zealand plantation timber. FSC certified. EPD available.

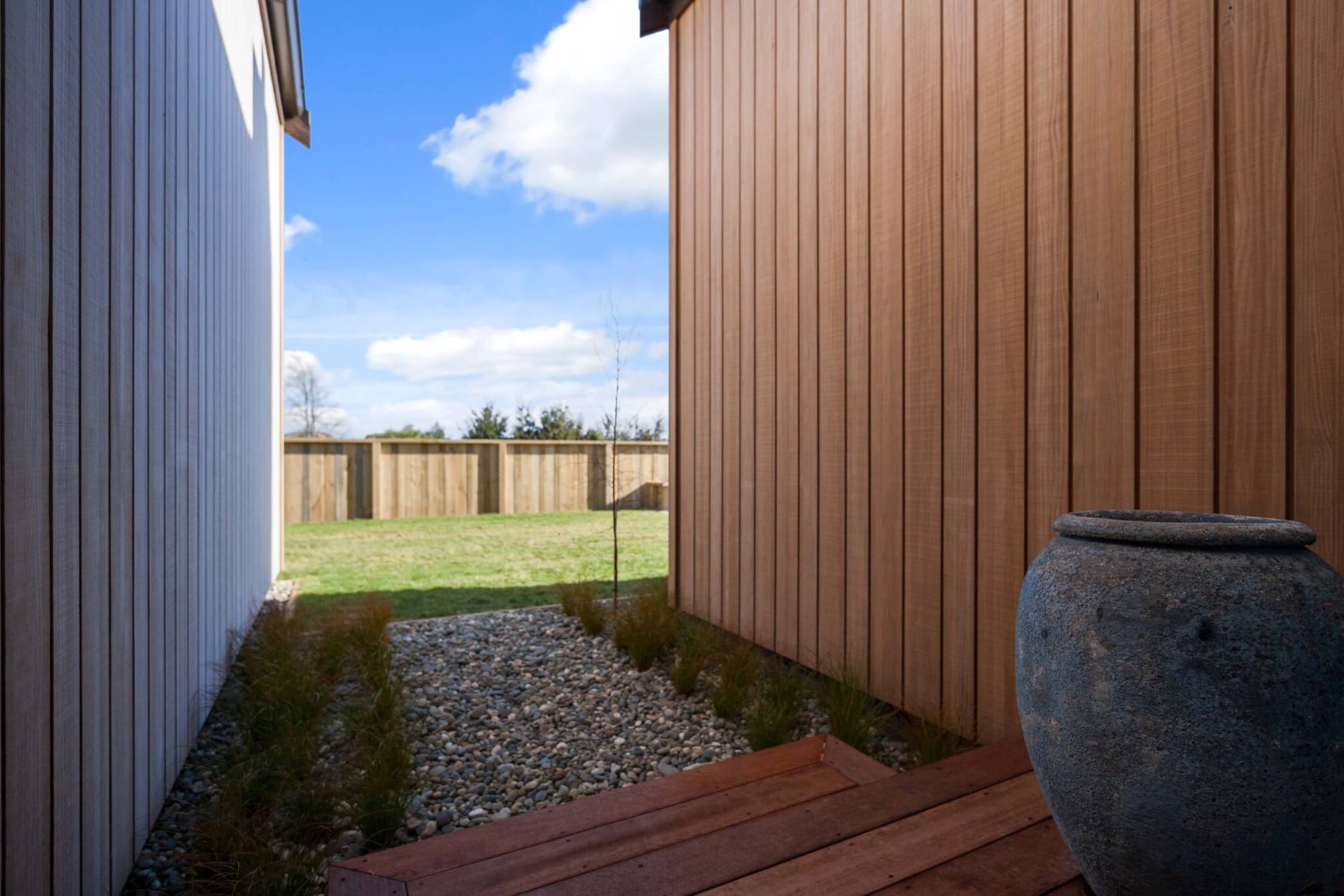

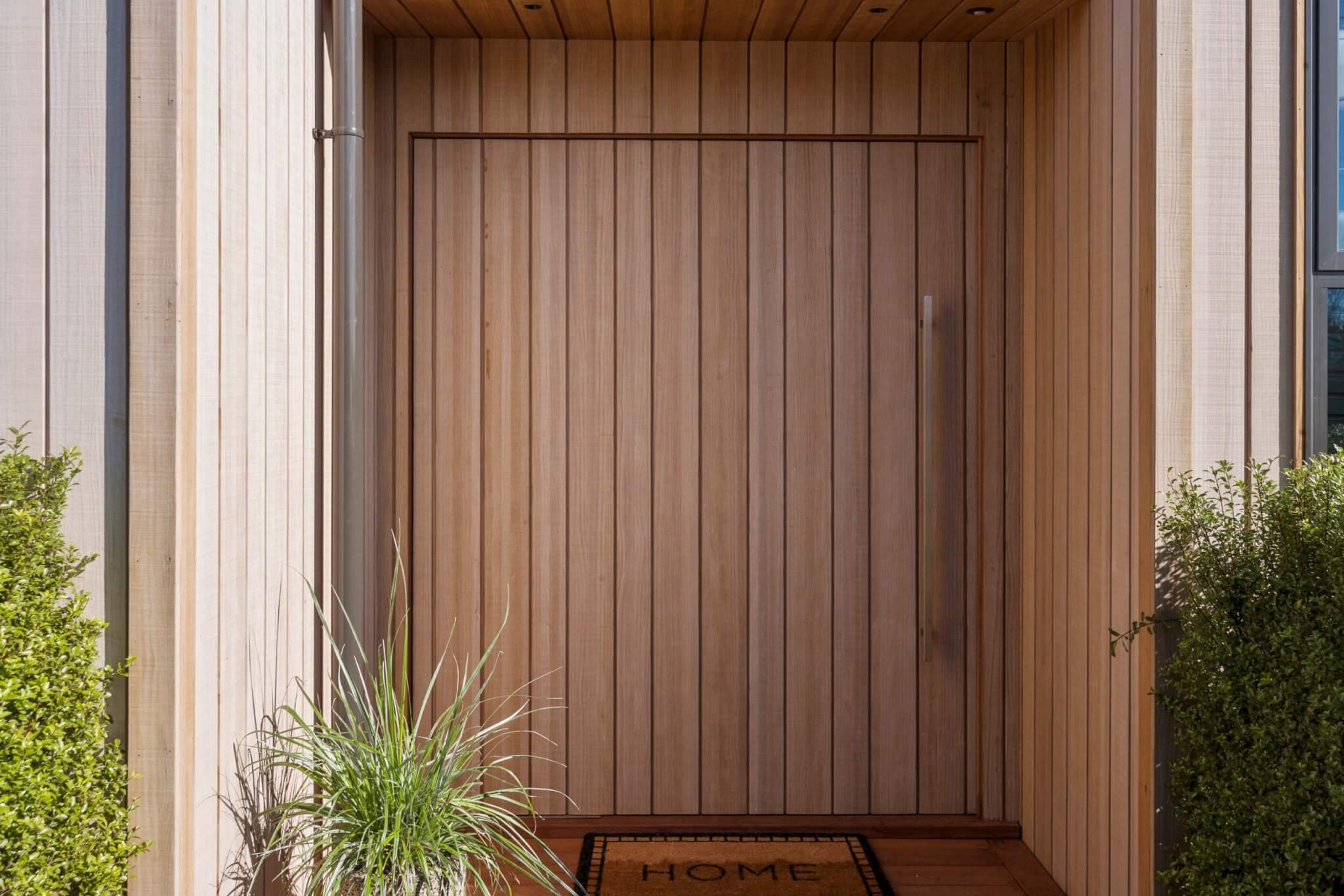

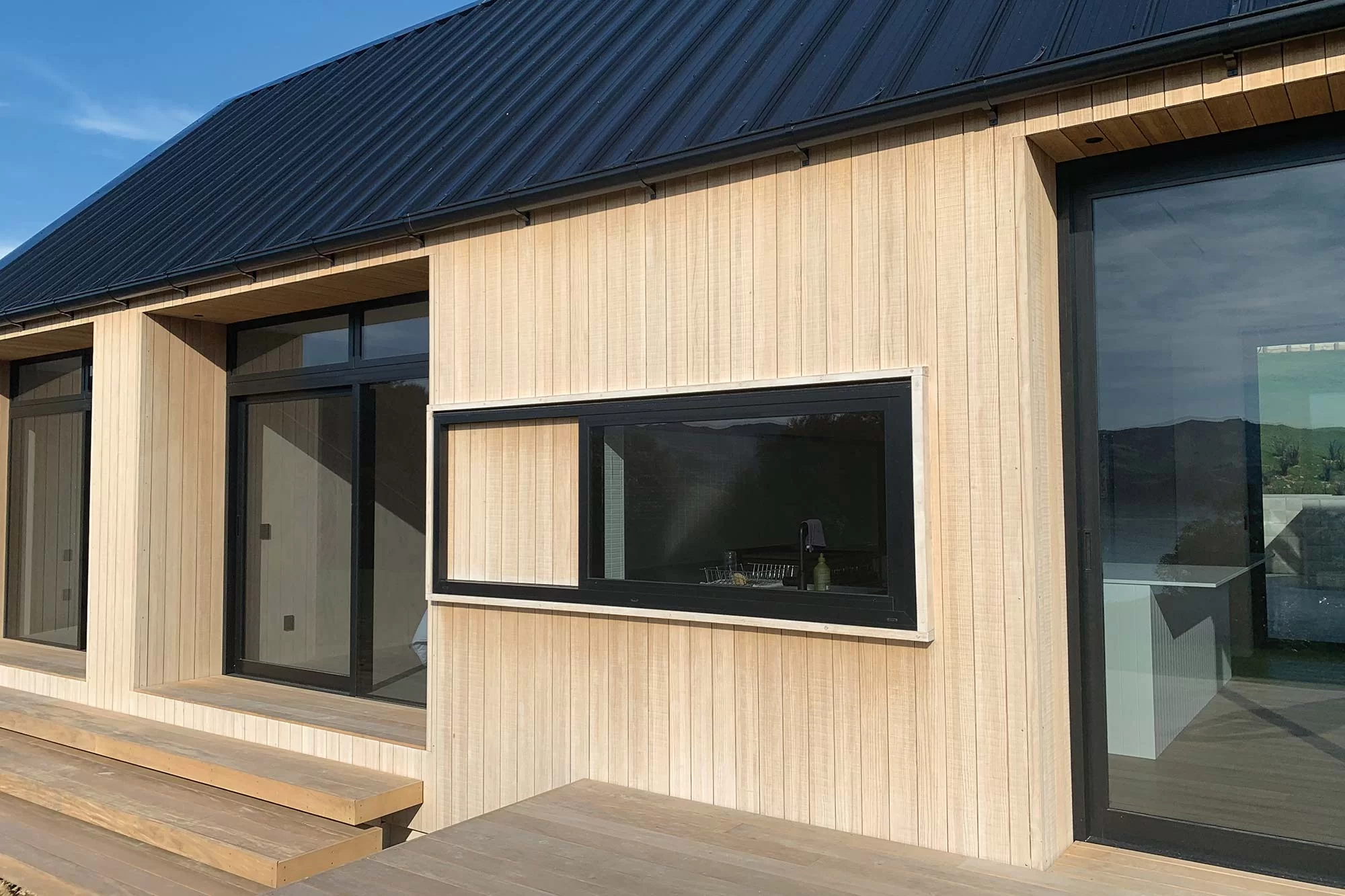

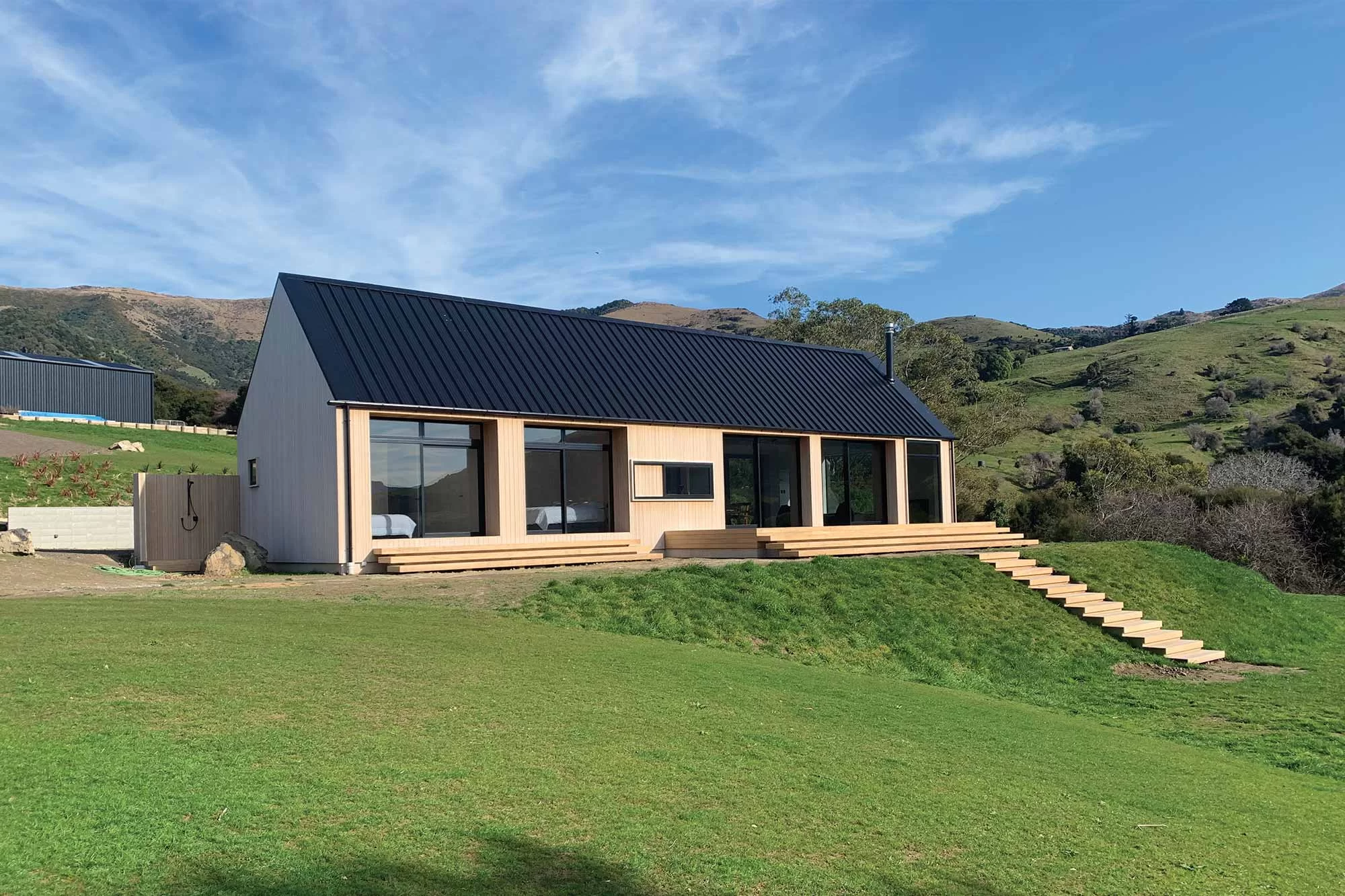

SiOO:X coating

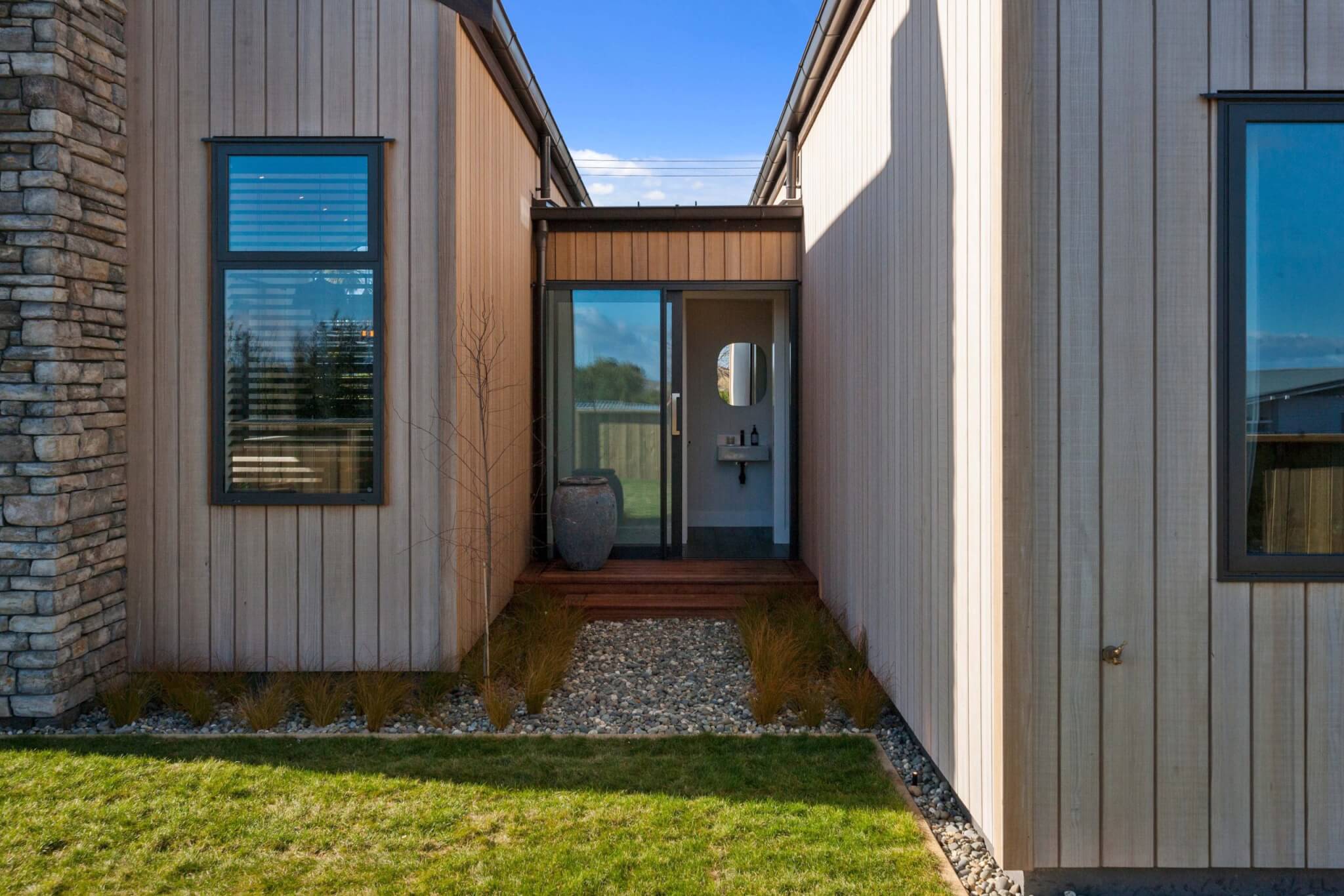

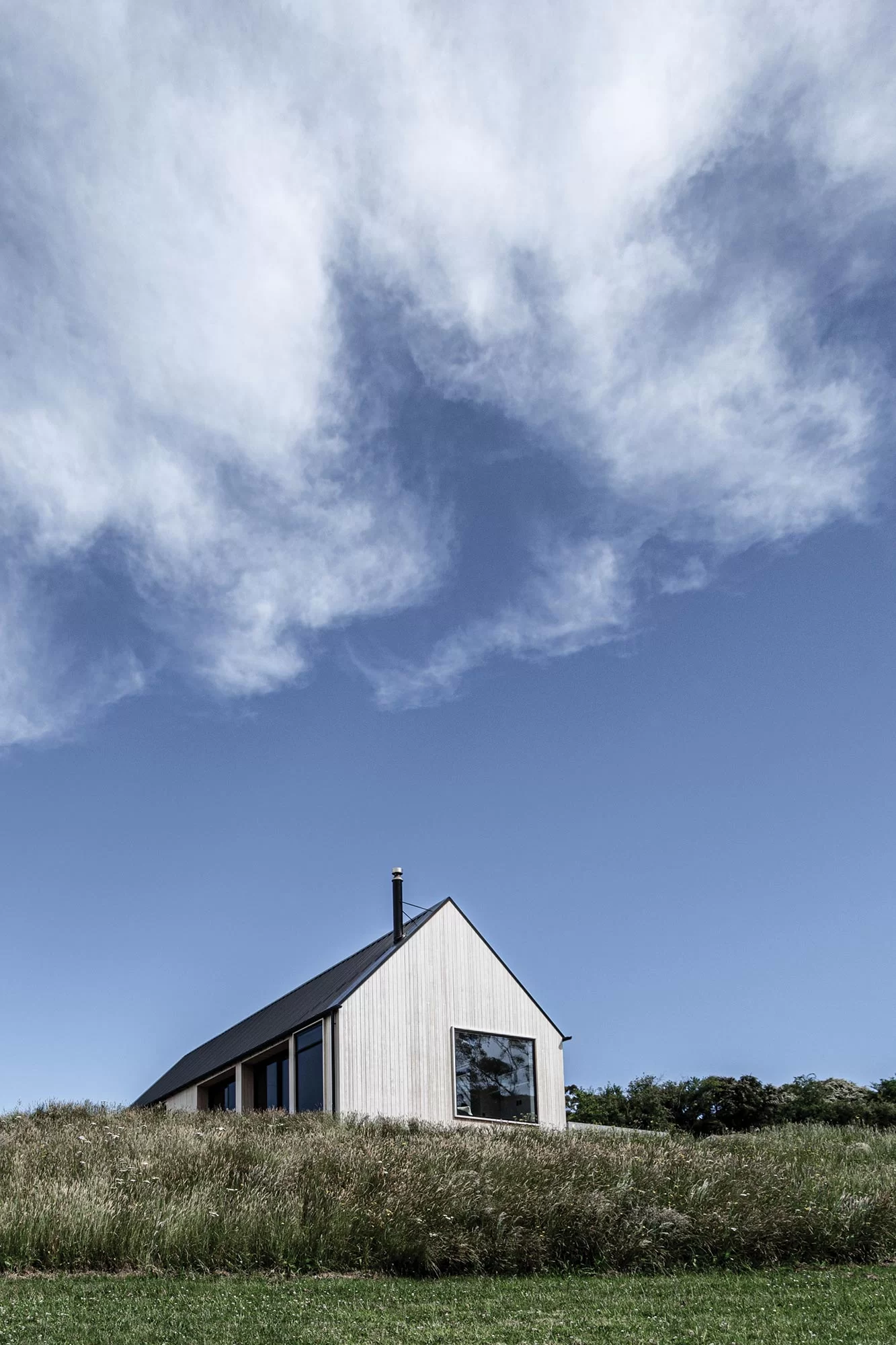

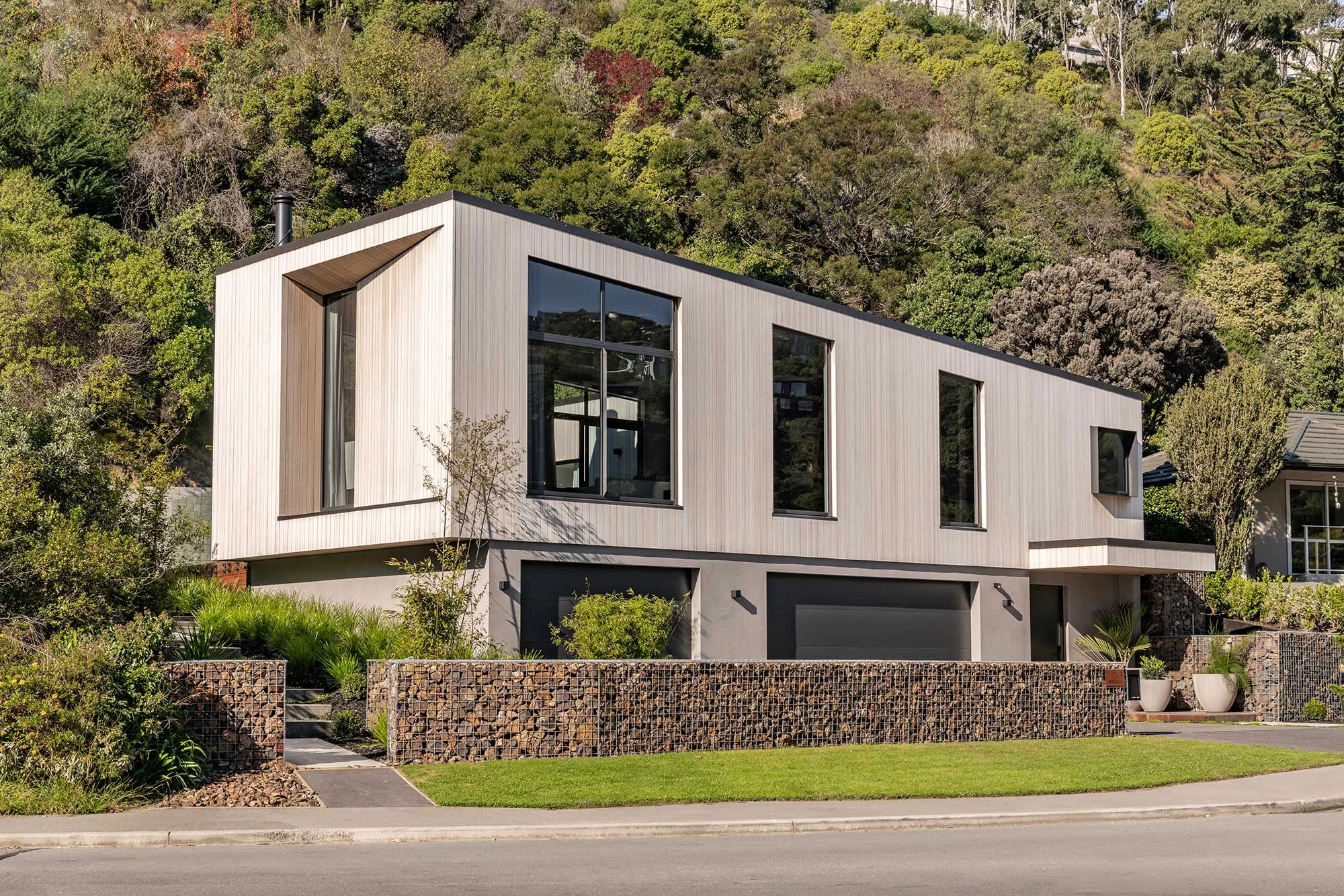

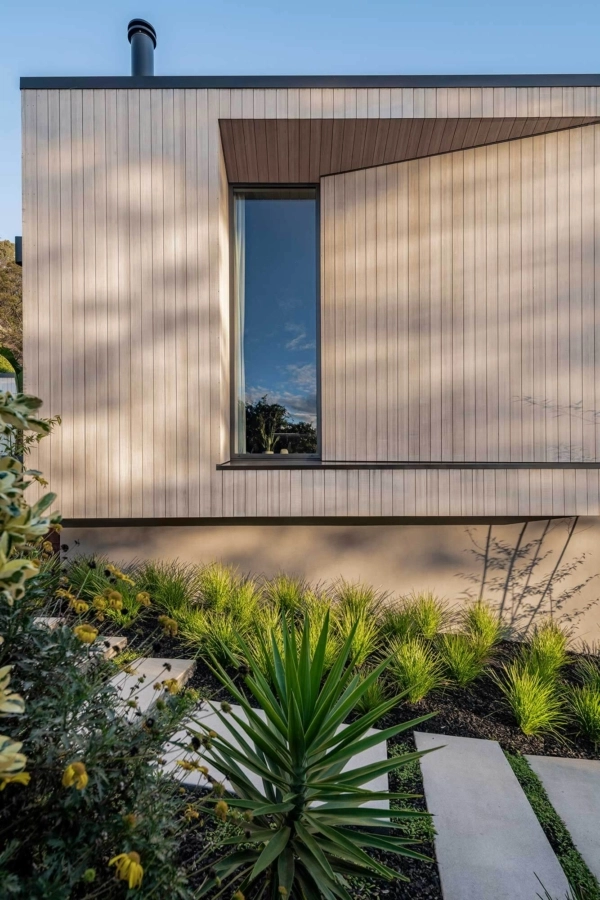

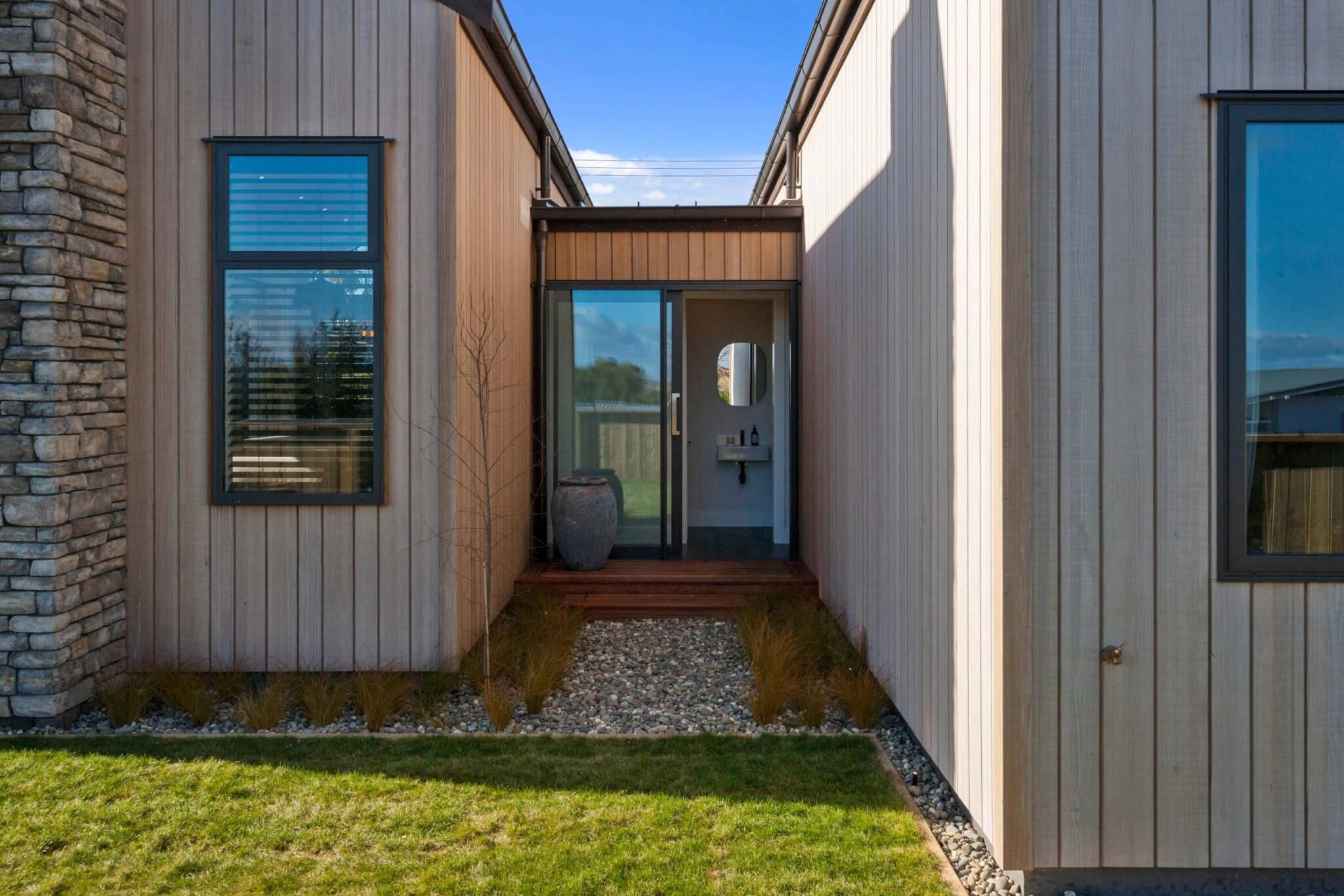

Abodo Vulcan Vertical Grain is ideal for factory coating with SiOO:X system to achieve a consistent weathered look at an accelerated rate.

Durability

Outstanding durability (Class 1 - 3 BS EN 350-2) due to thermal modification.

Coatings

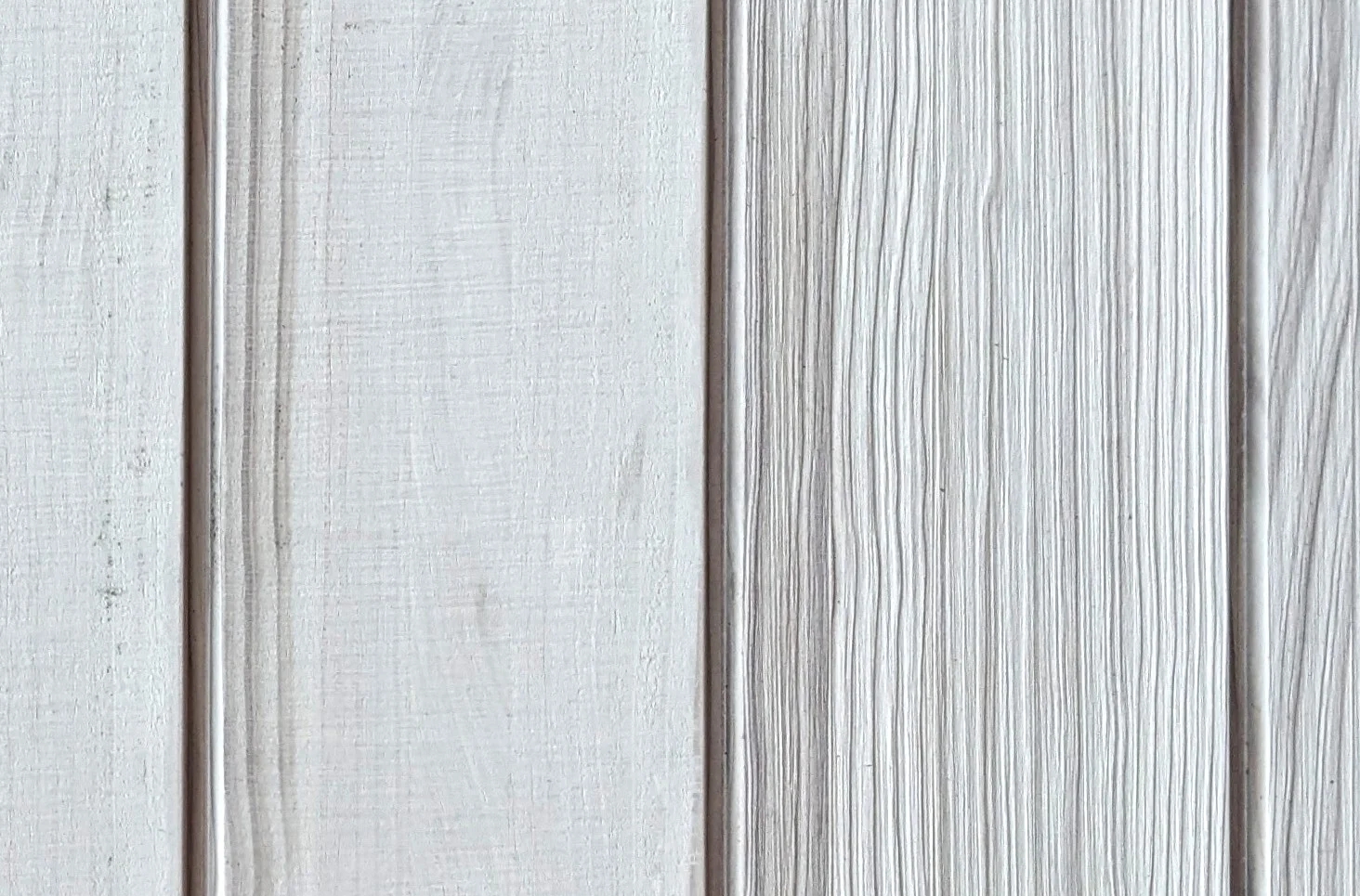

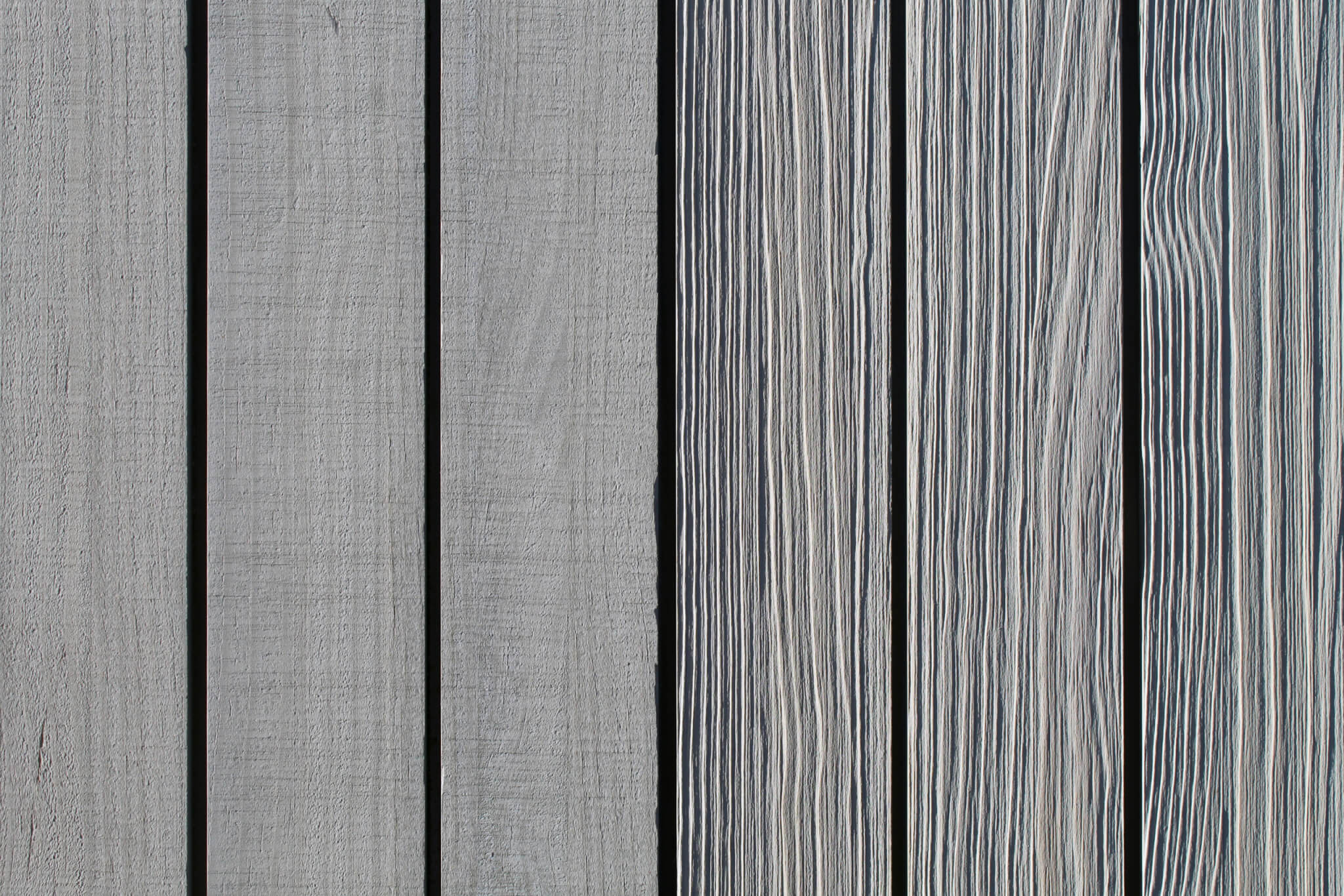

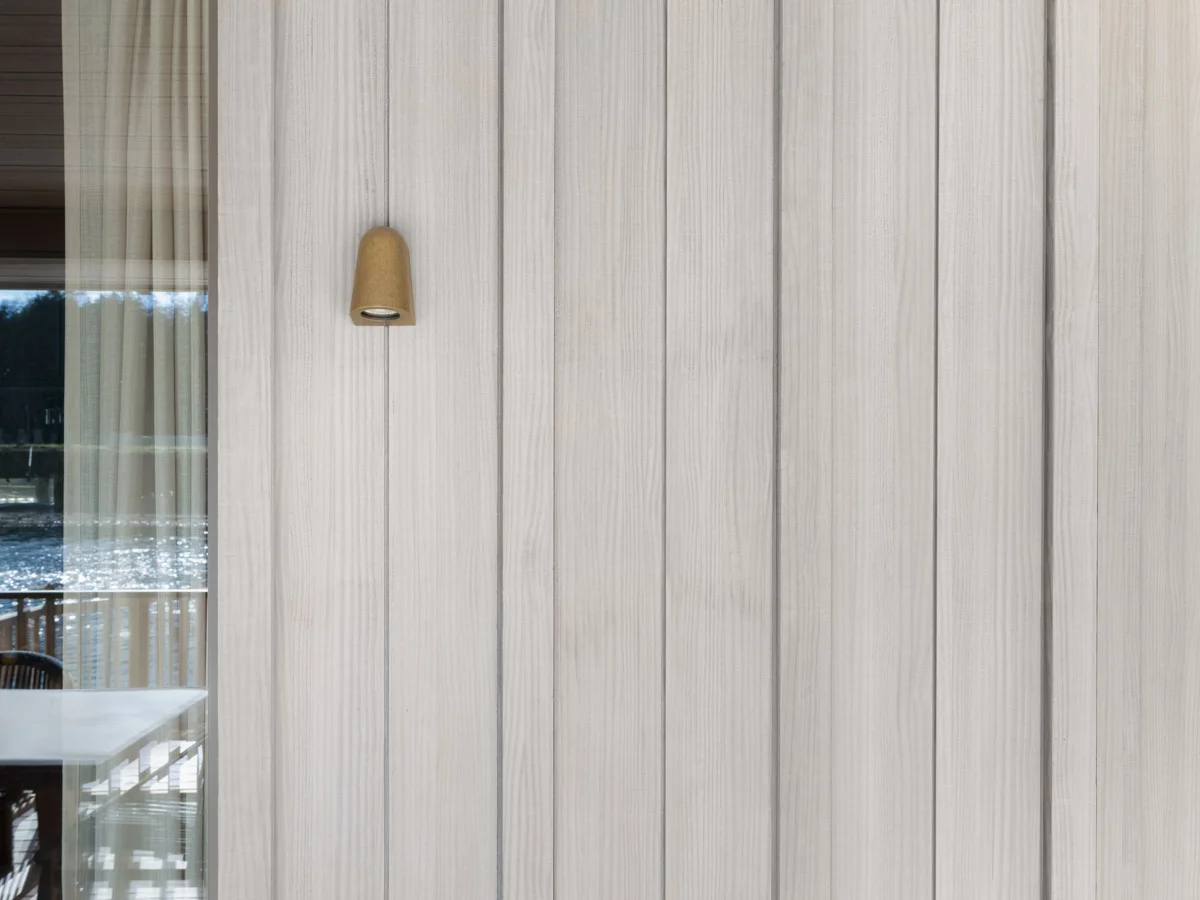

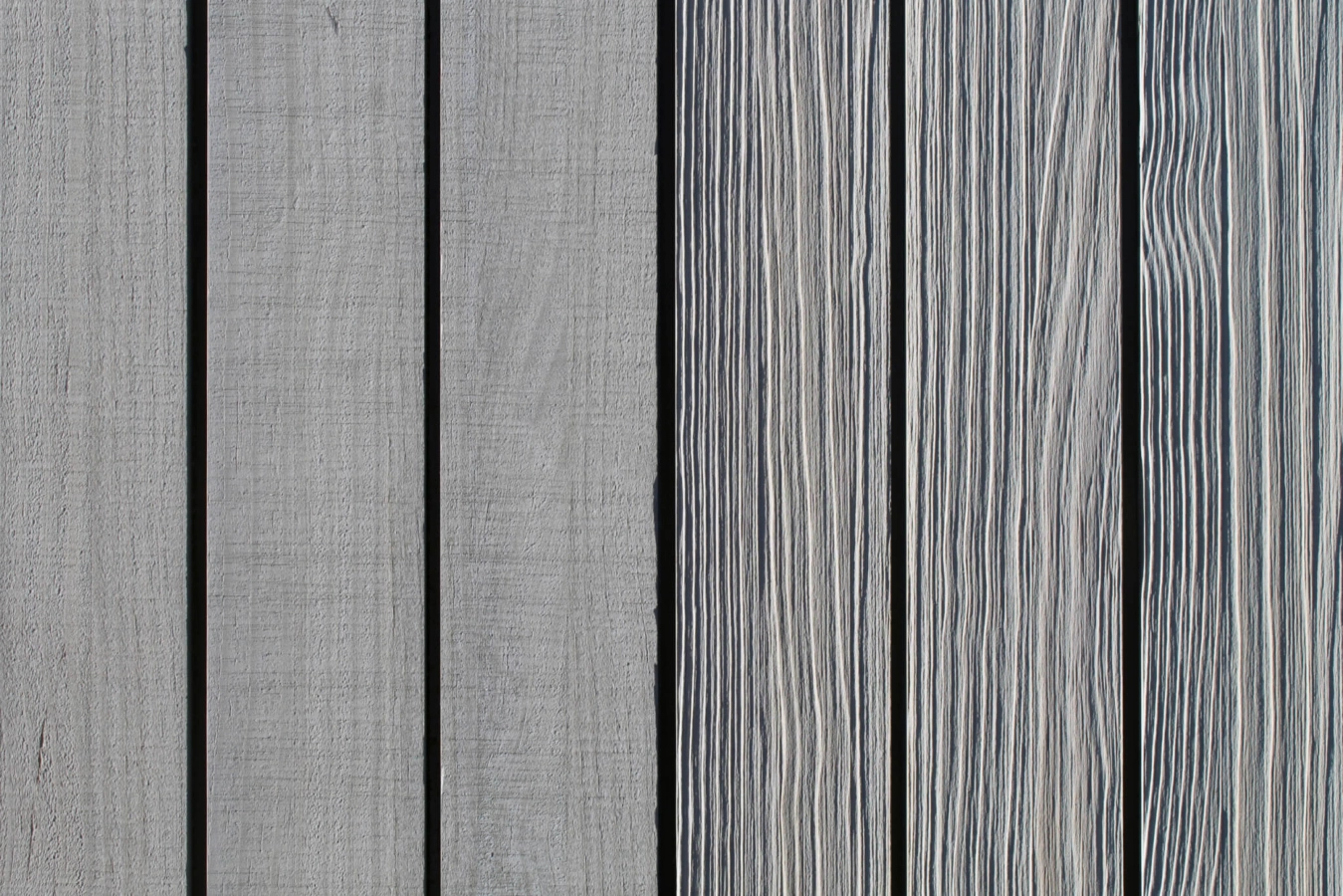

Available factory coated in SiOO:X Light Grey or Mid Grey. Also suitable also for coating with Woca oil.

Appearance

Growth rings run from face to face, giving a refined vertical grain appearance, which is free of knots.

Density

Low - classified by BS EN 350-2 as approximately 420 Kg/m³ at a moisture content of approximately 6-8%.

Fire retardant

Not currently suitable for treatment with fire retardant.

Application

Highly versatile, suitable for most types of cladding application. Fixed lengths and custom sizes, including wide sections and fins, available.

Stability

The combination of thermal treatment and the vertical grain orientation yields a remarkably stable timber. This allows for the utilisation of wider boards while maintaining exceptional performance.

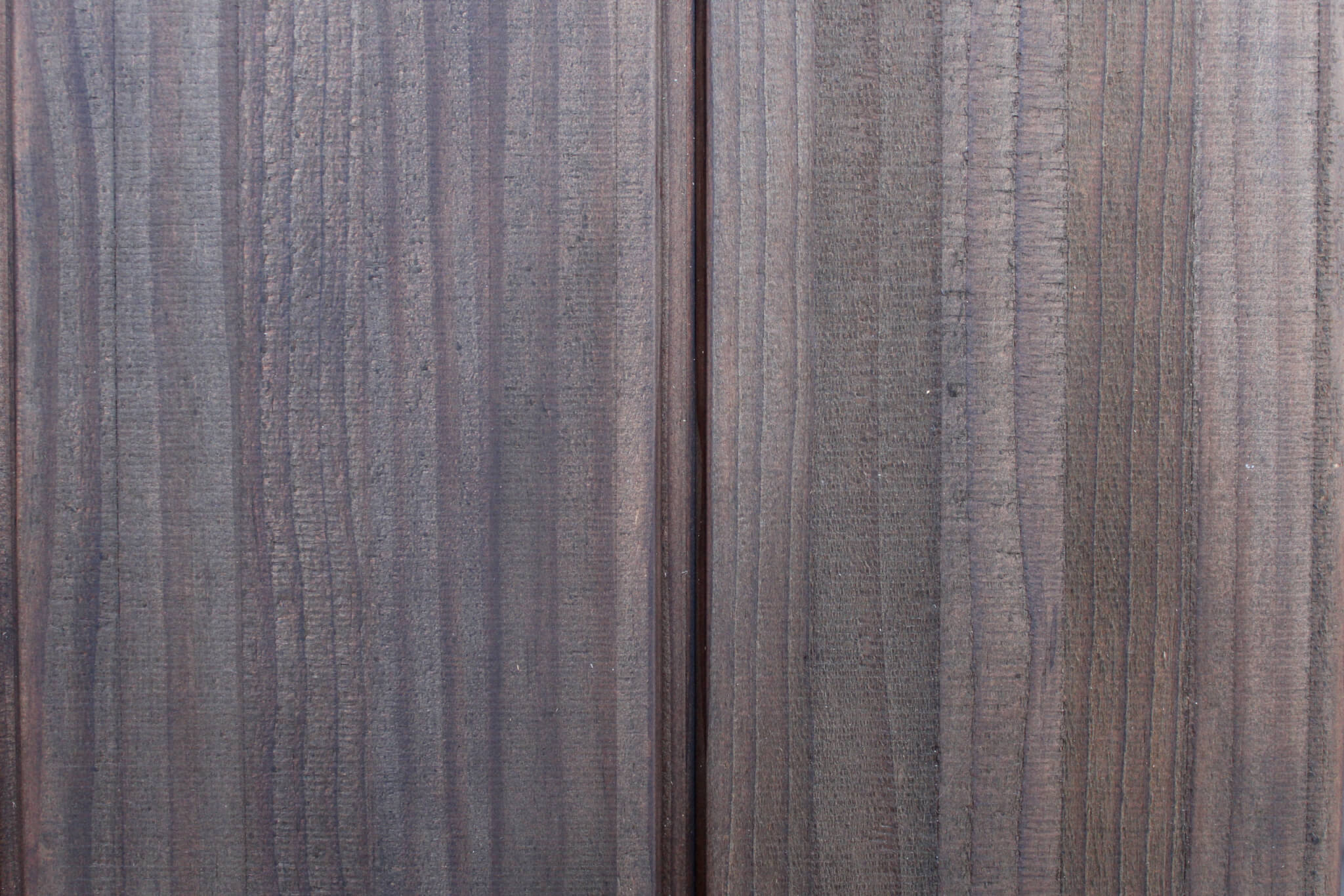

Surface finishes

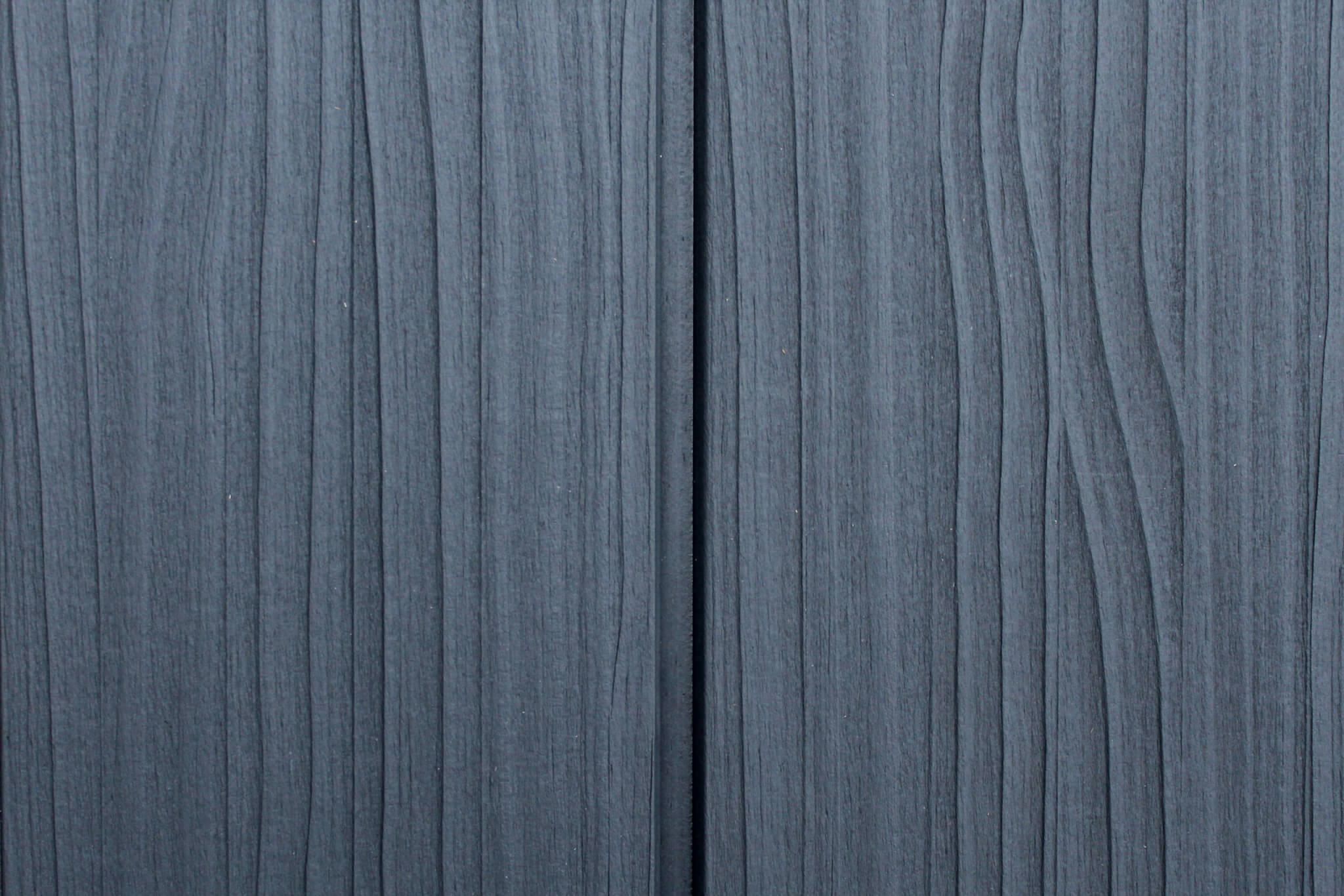

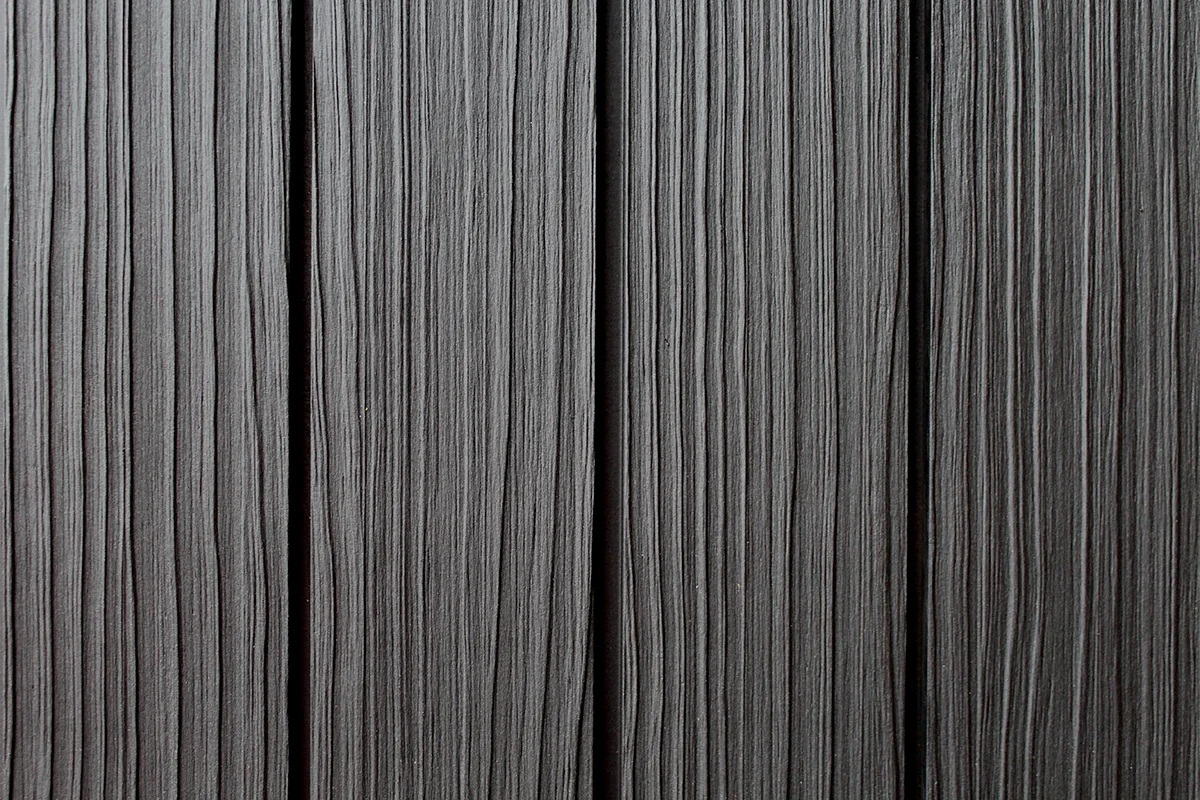

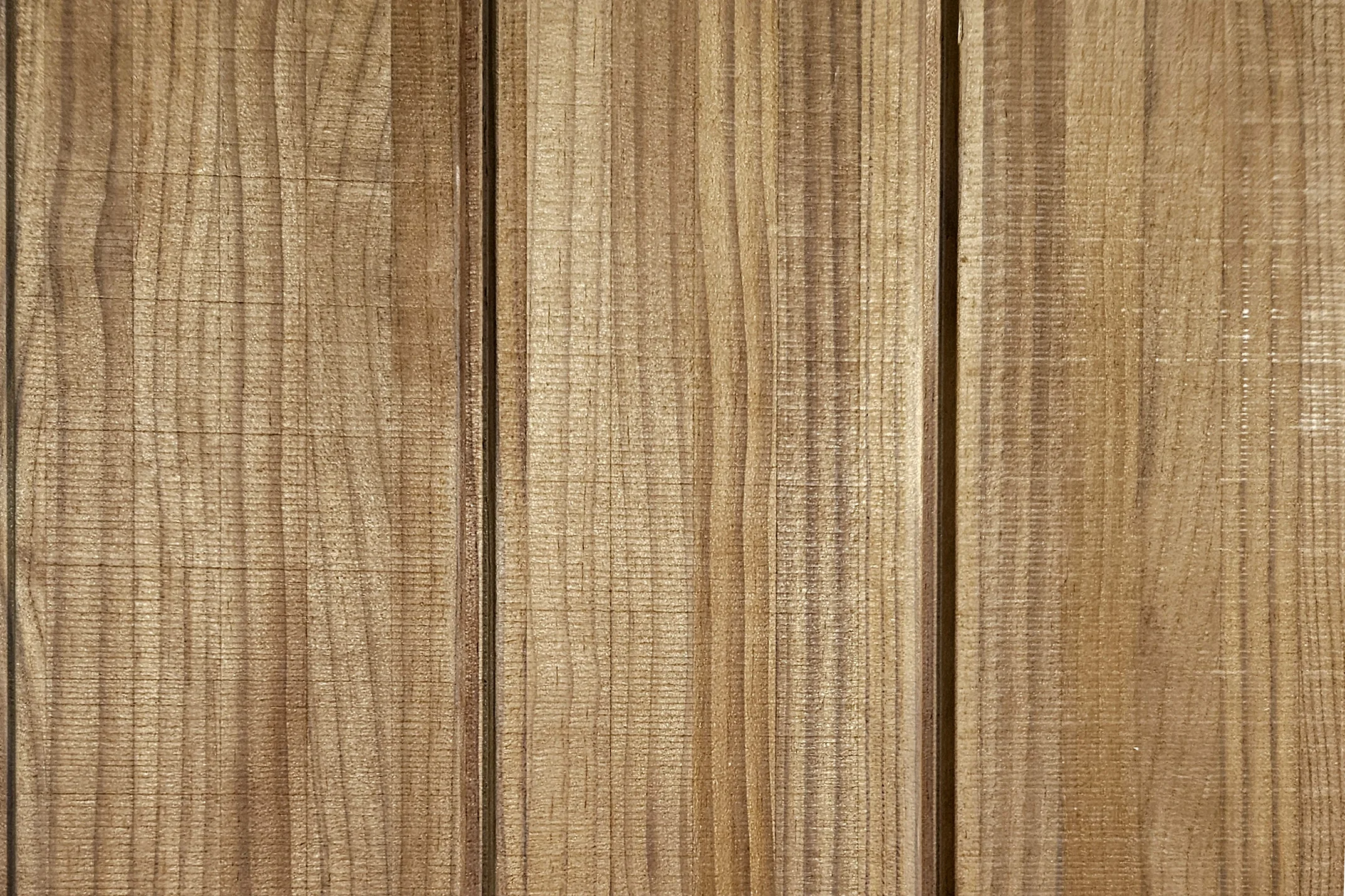

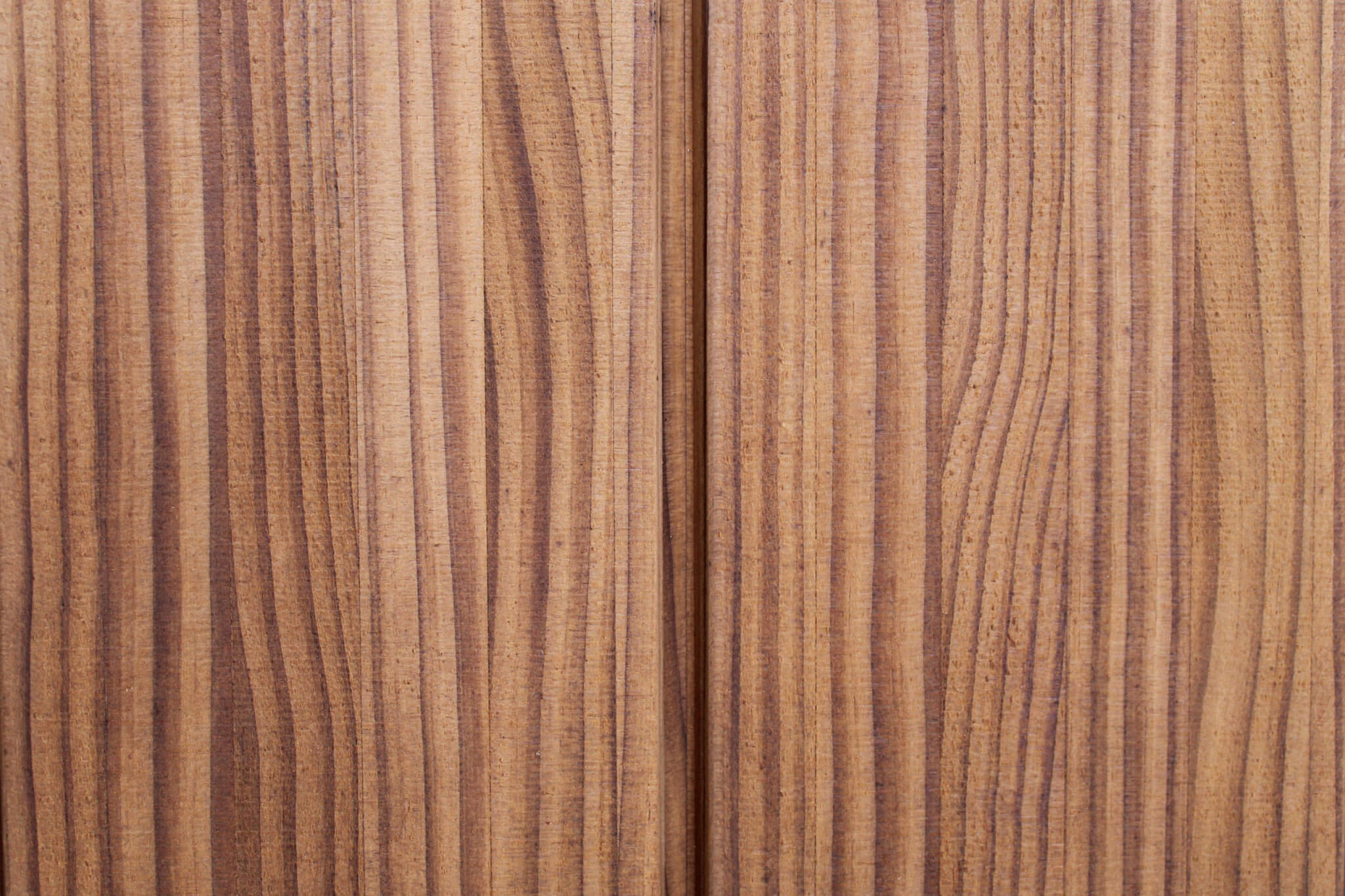

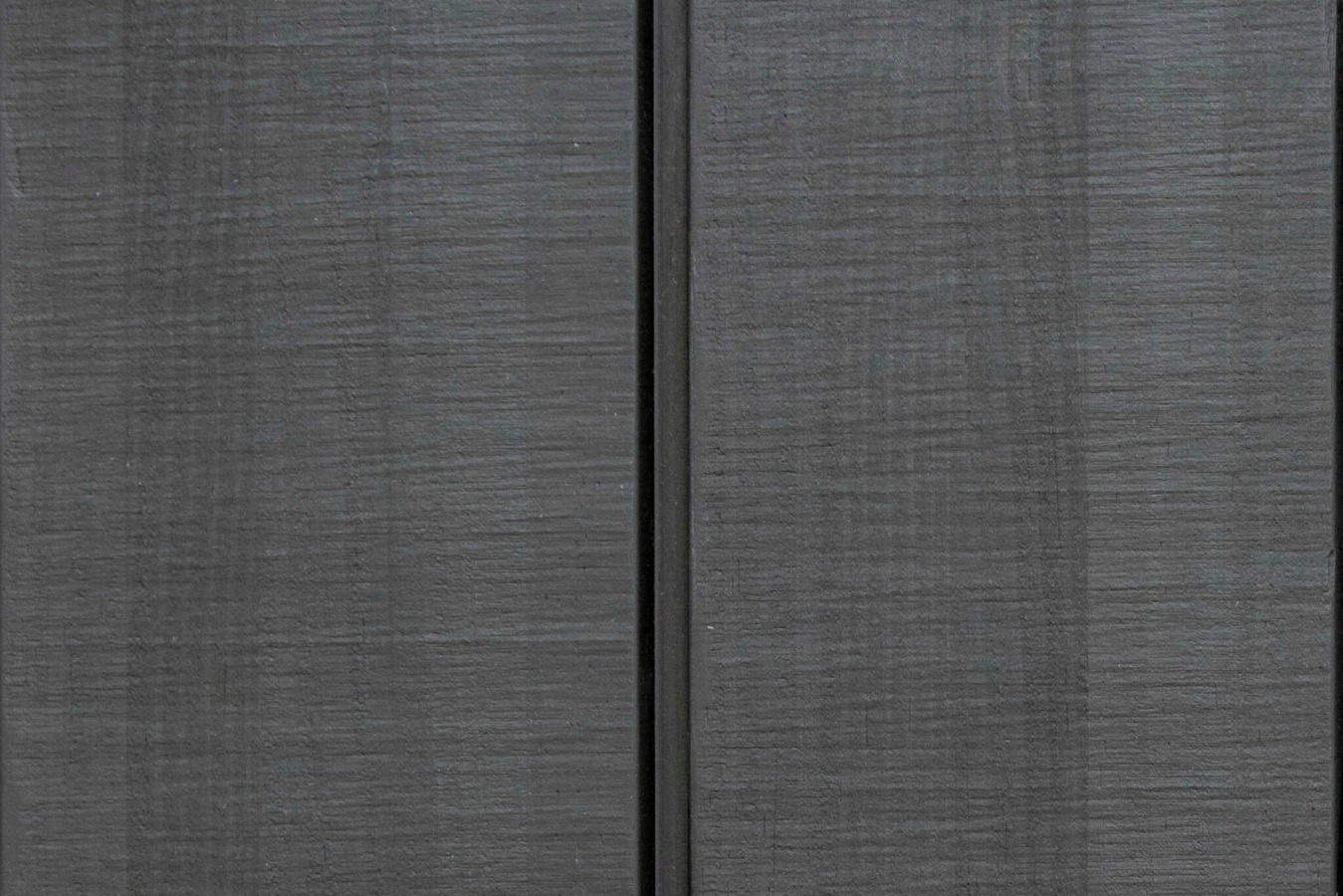

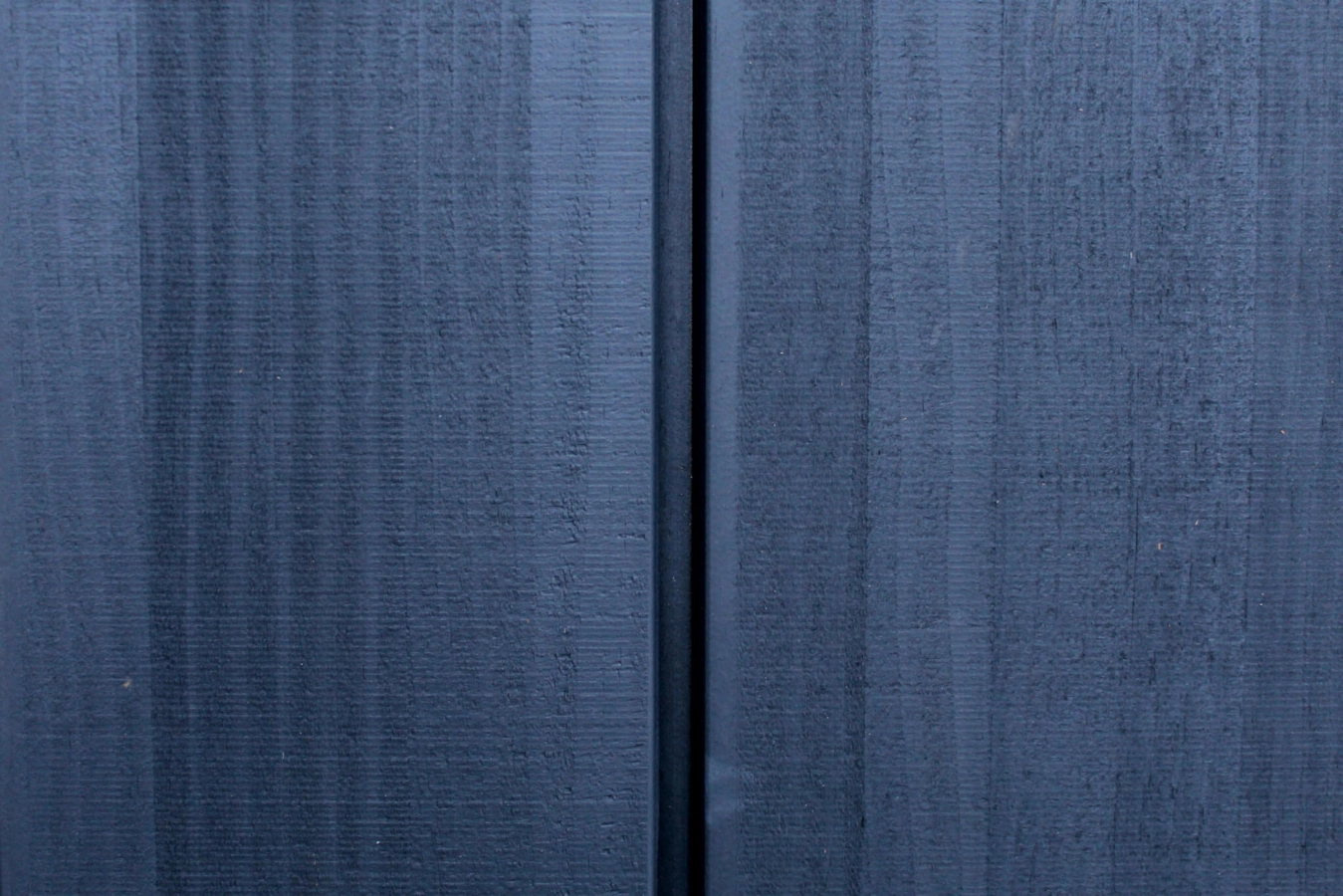

Can be produced in a Wire Brushed or Skimmed finish.

See how Abodo® Vulcan Vertical Grain compares with other species
Compare Cladding

View downloads

Download Environmental Product Declarations and species factsheet.

View downloads

Architects & Specifiers

We offer a range of services to help with specifying our products.

Find out more

Get a quote

Get in touch with our sales team to discuss your project.

Get a quote

Expert View

With a beautiful straight grain, and superior dimensional stability, this timber can withstand even the toughest environments.
Image of Daniel Gudsell Daniel Gudsell Managing Director - Abodo

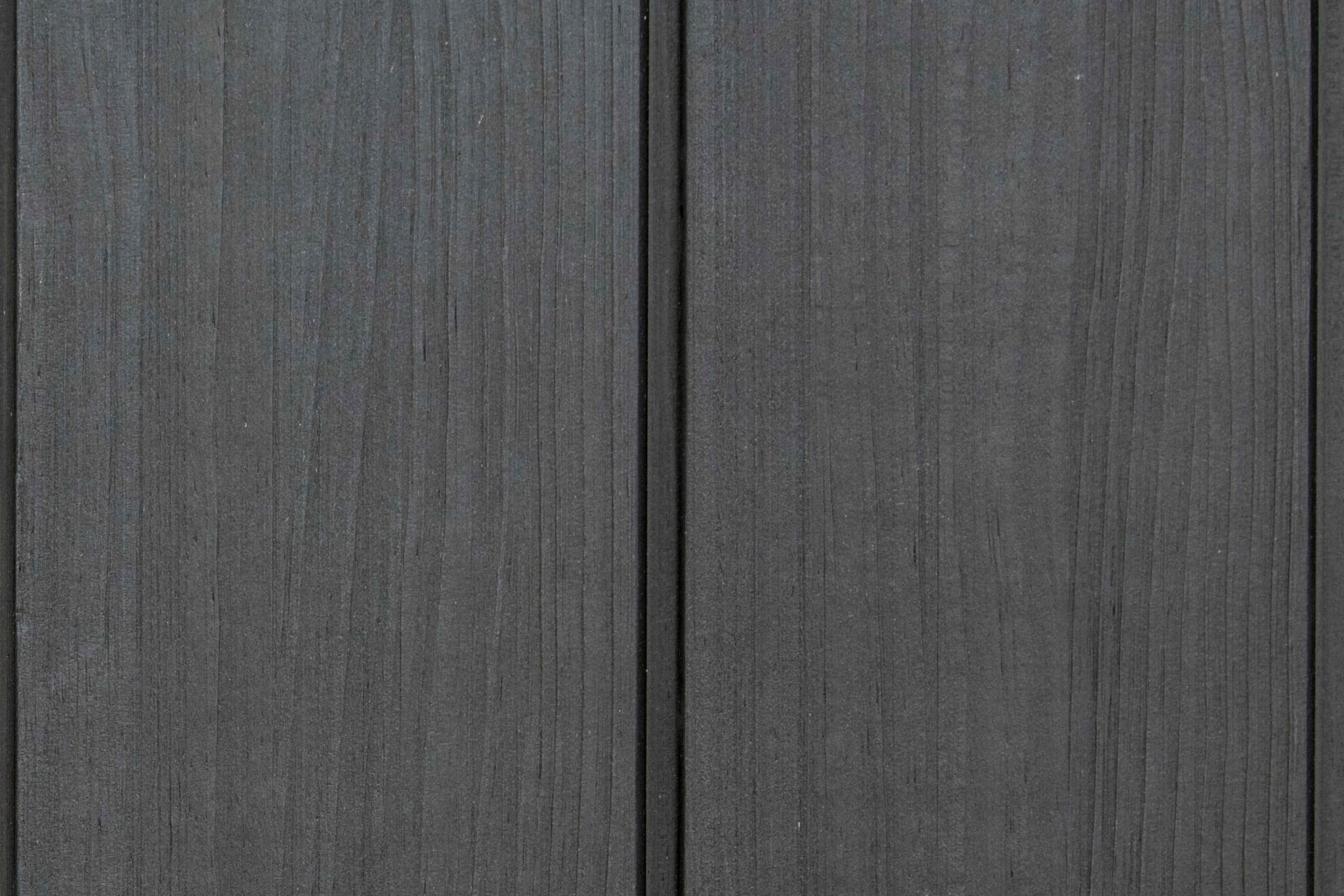

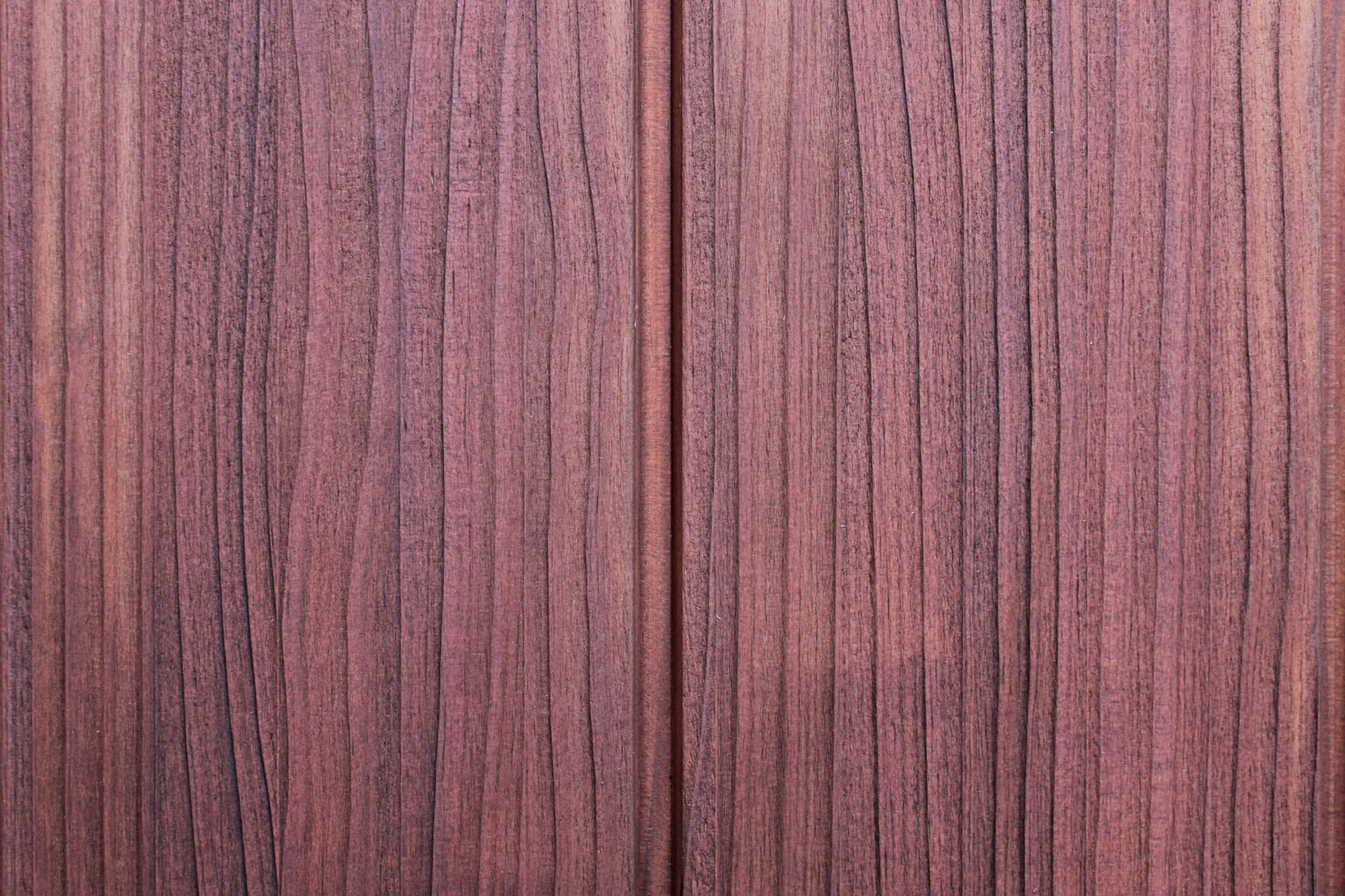

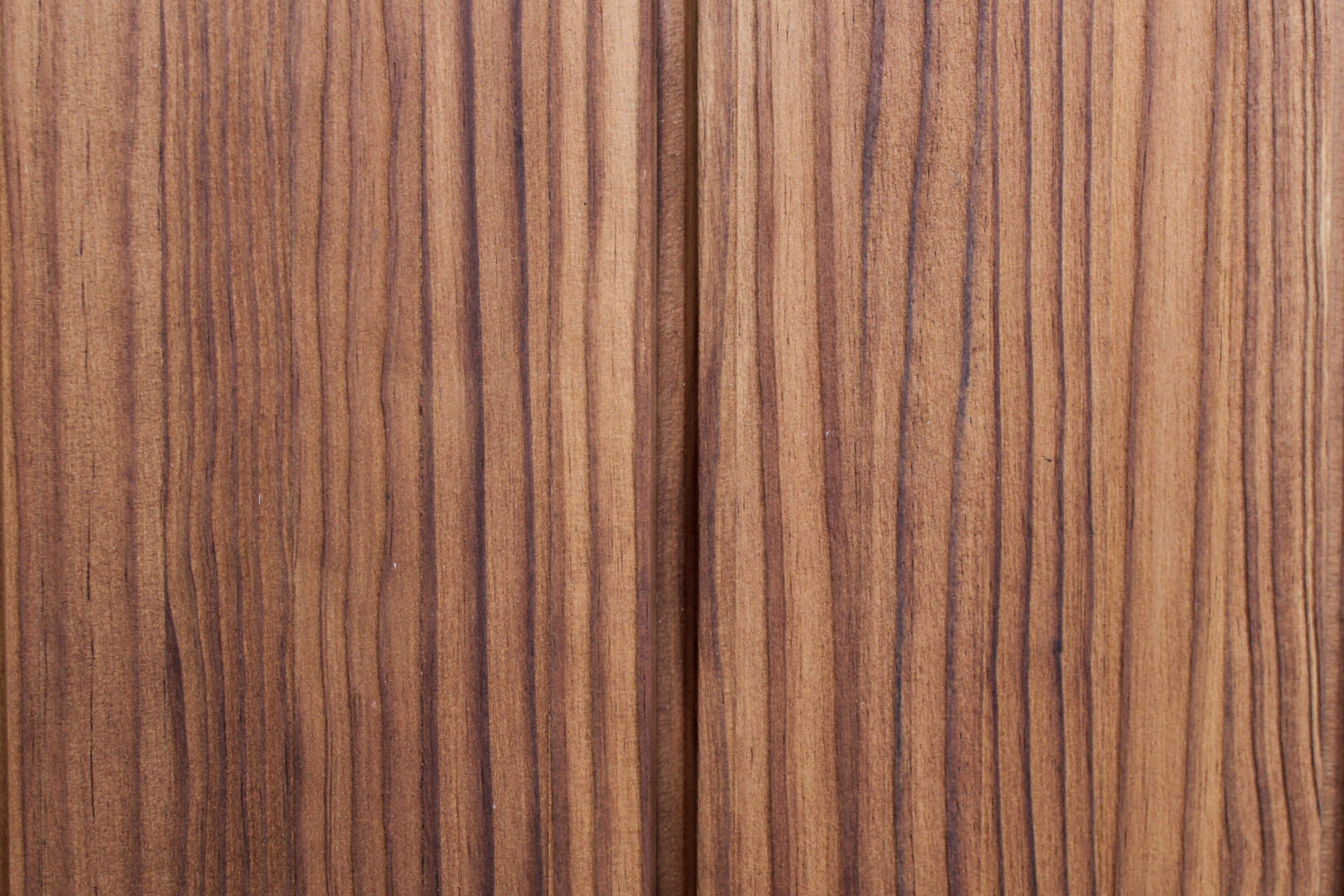

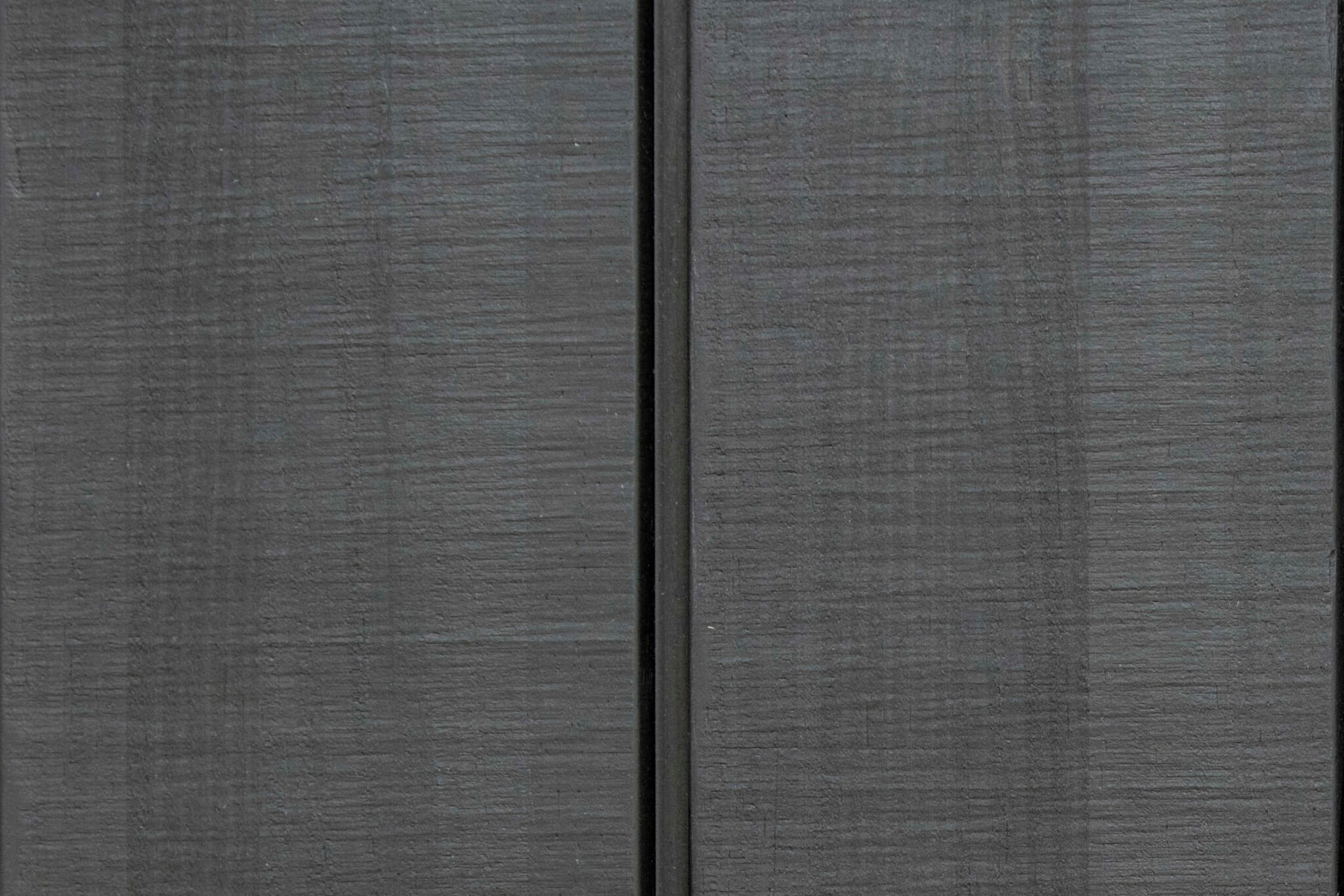

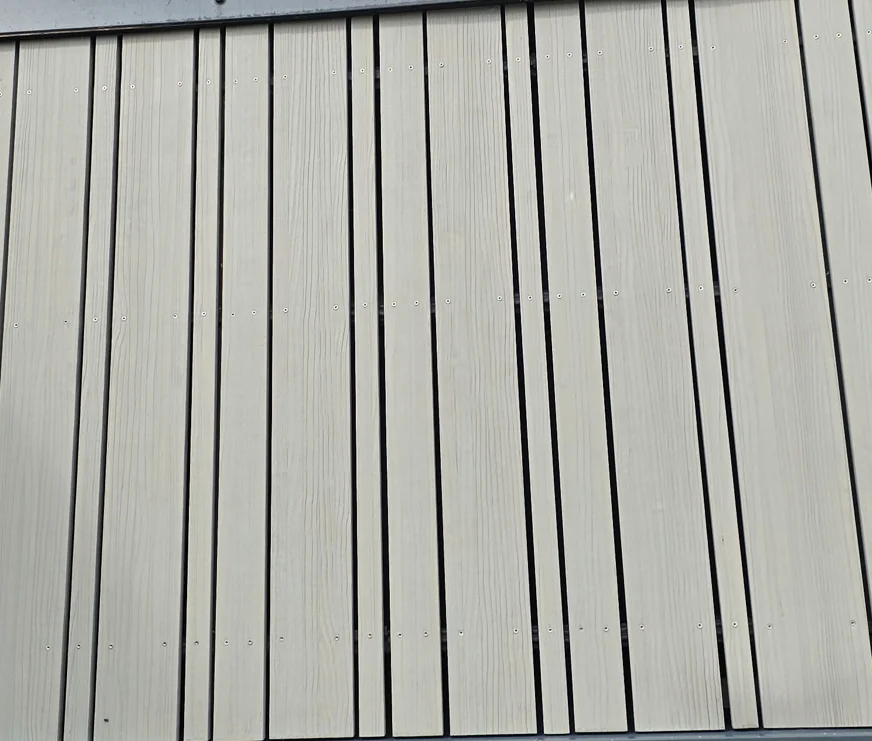

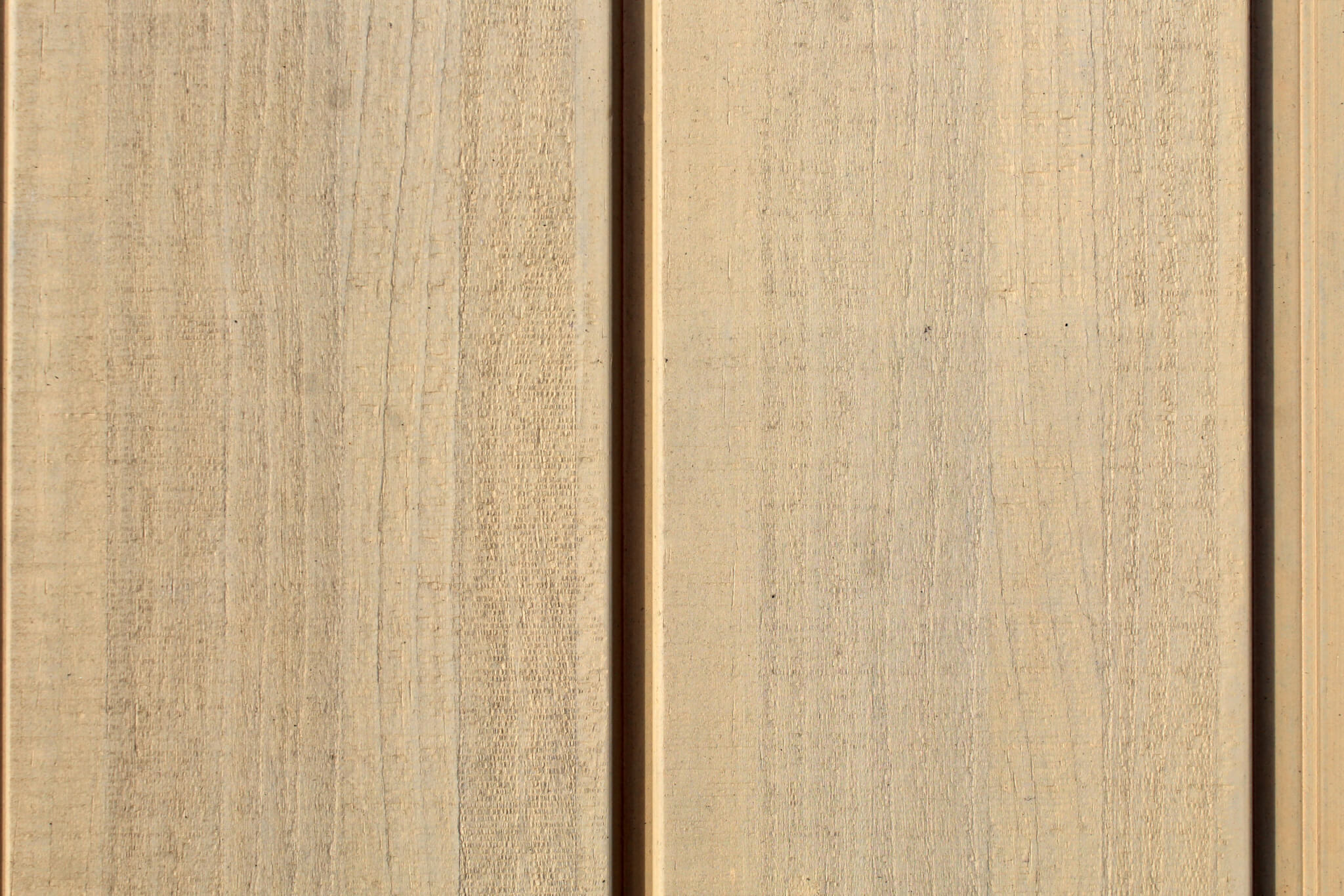

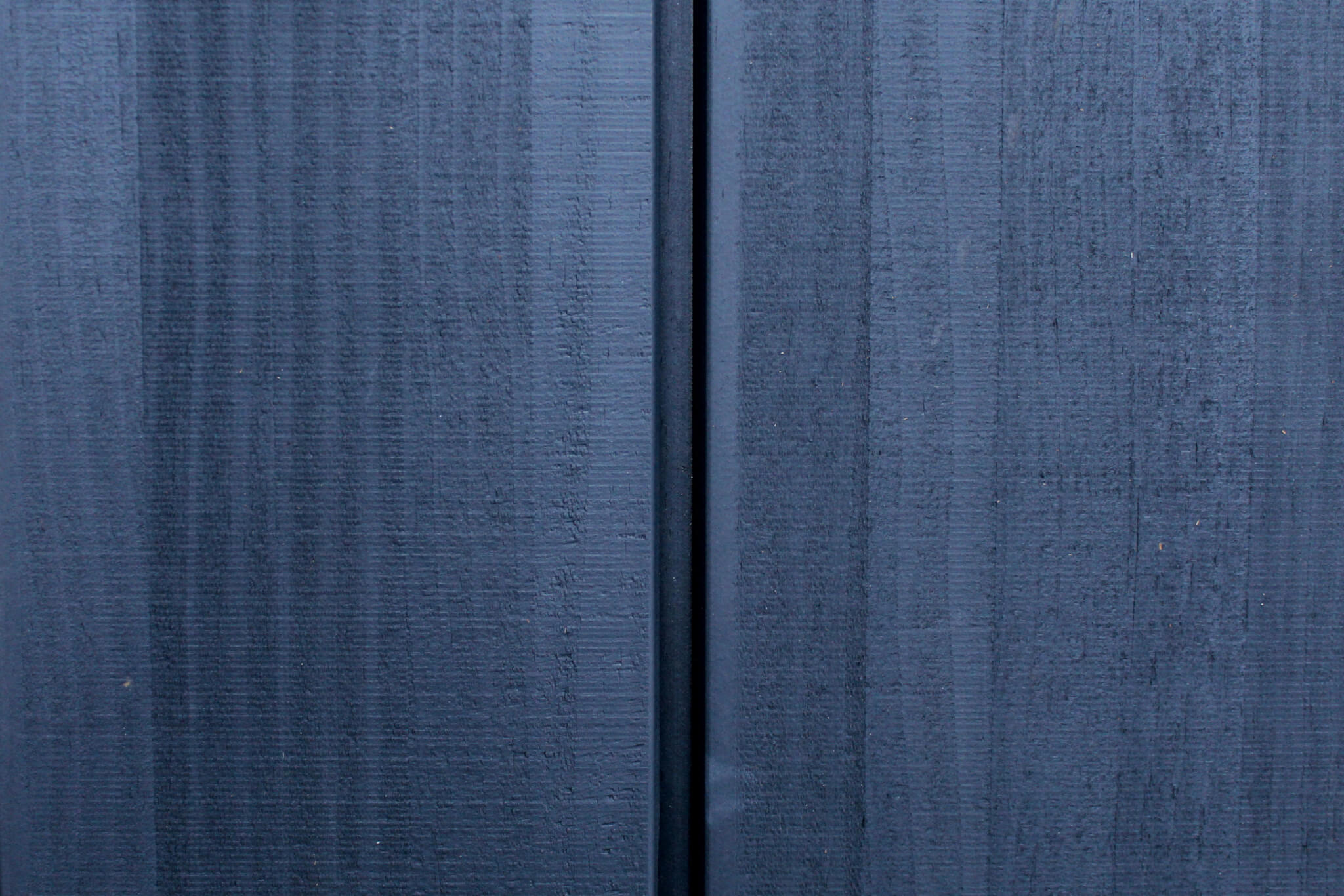

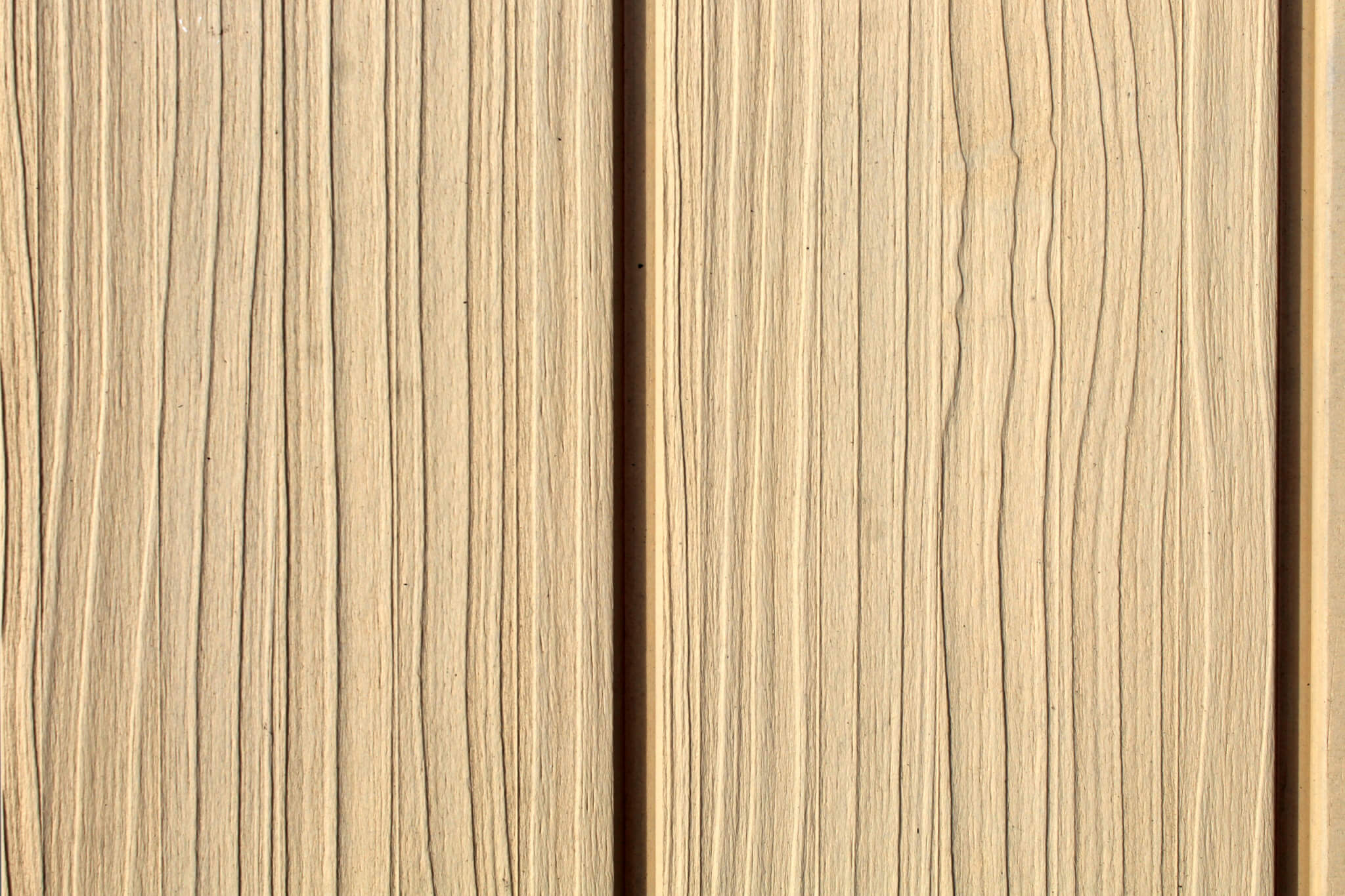

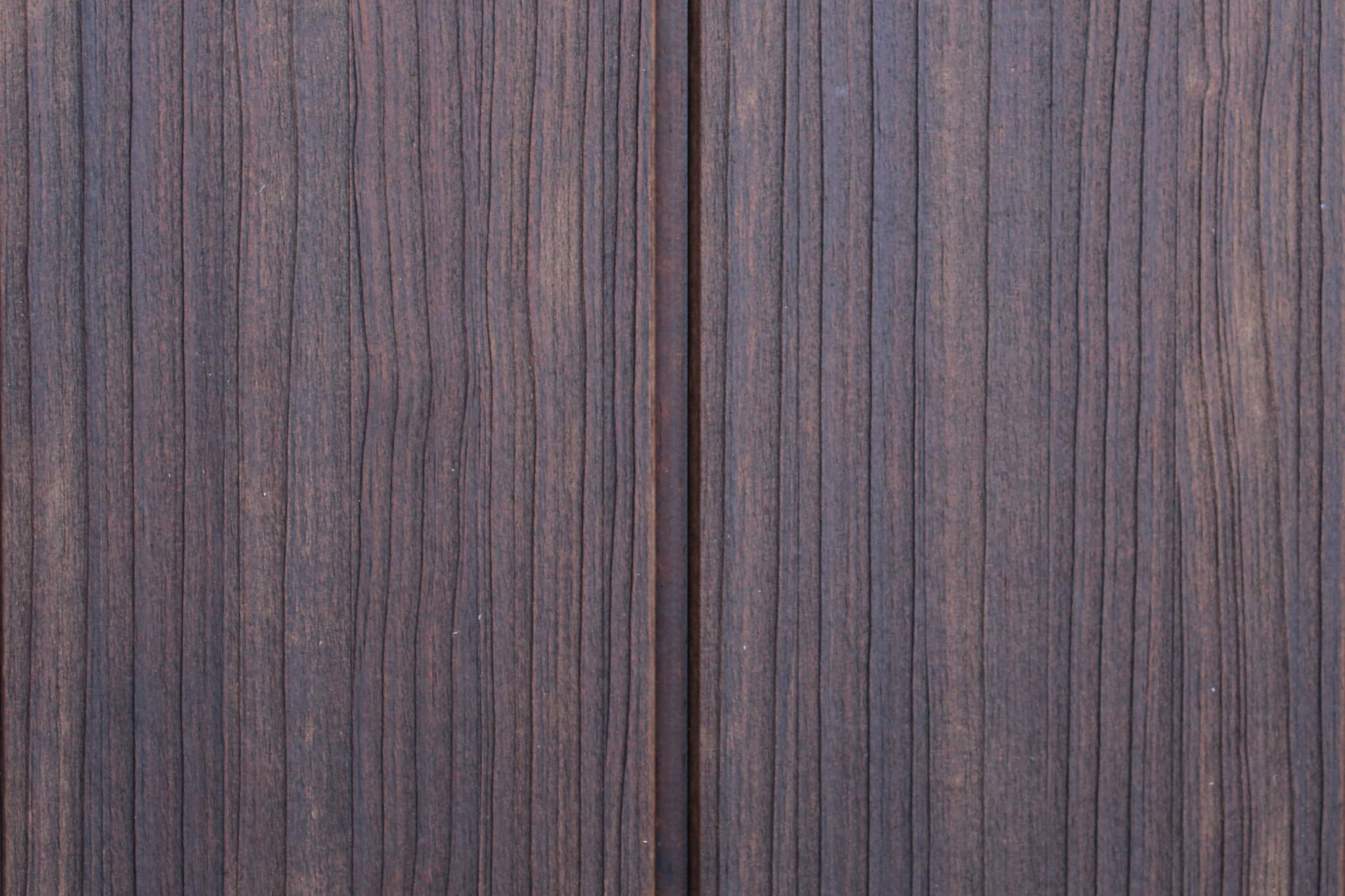

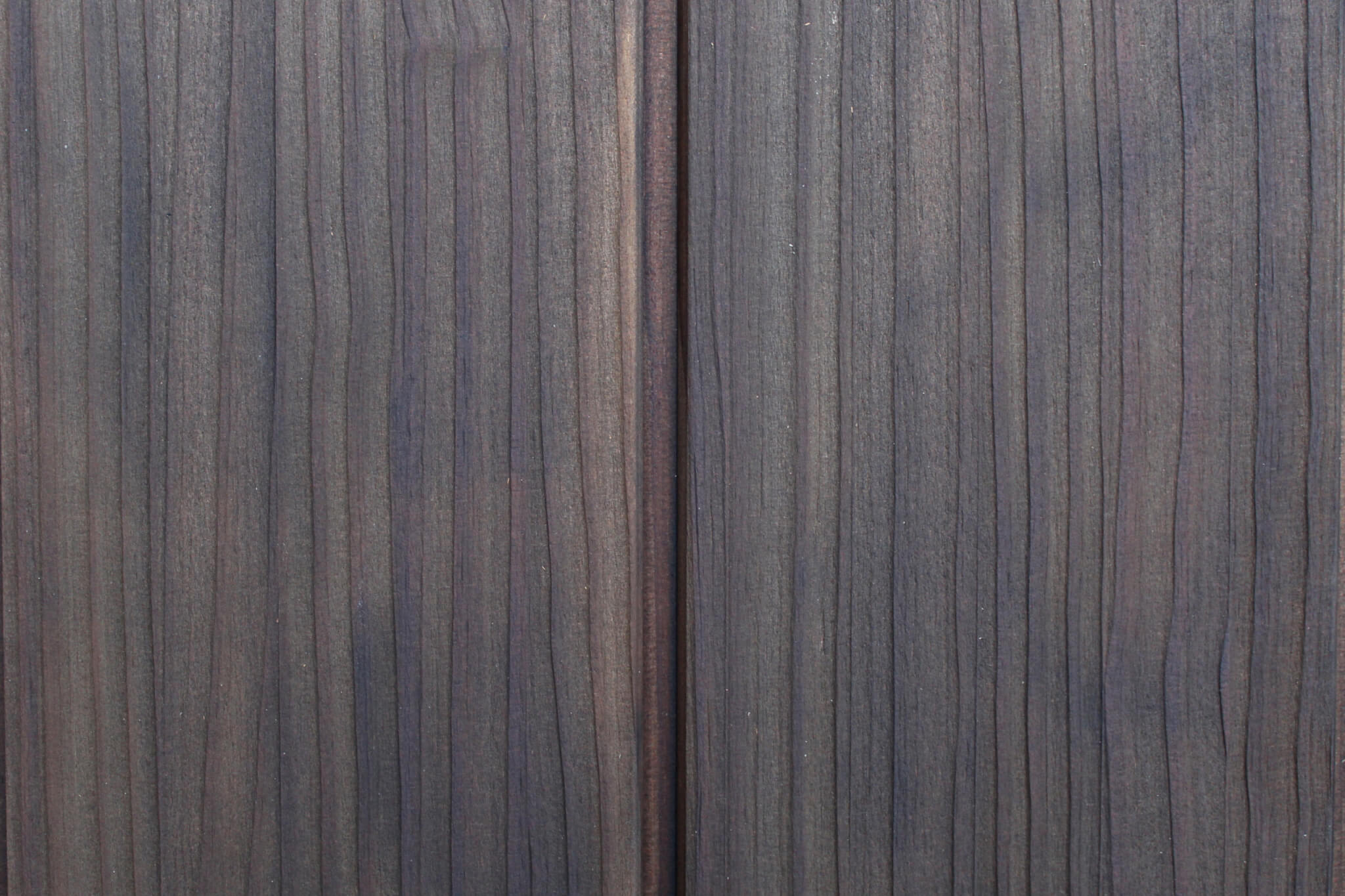

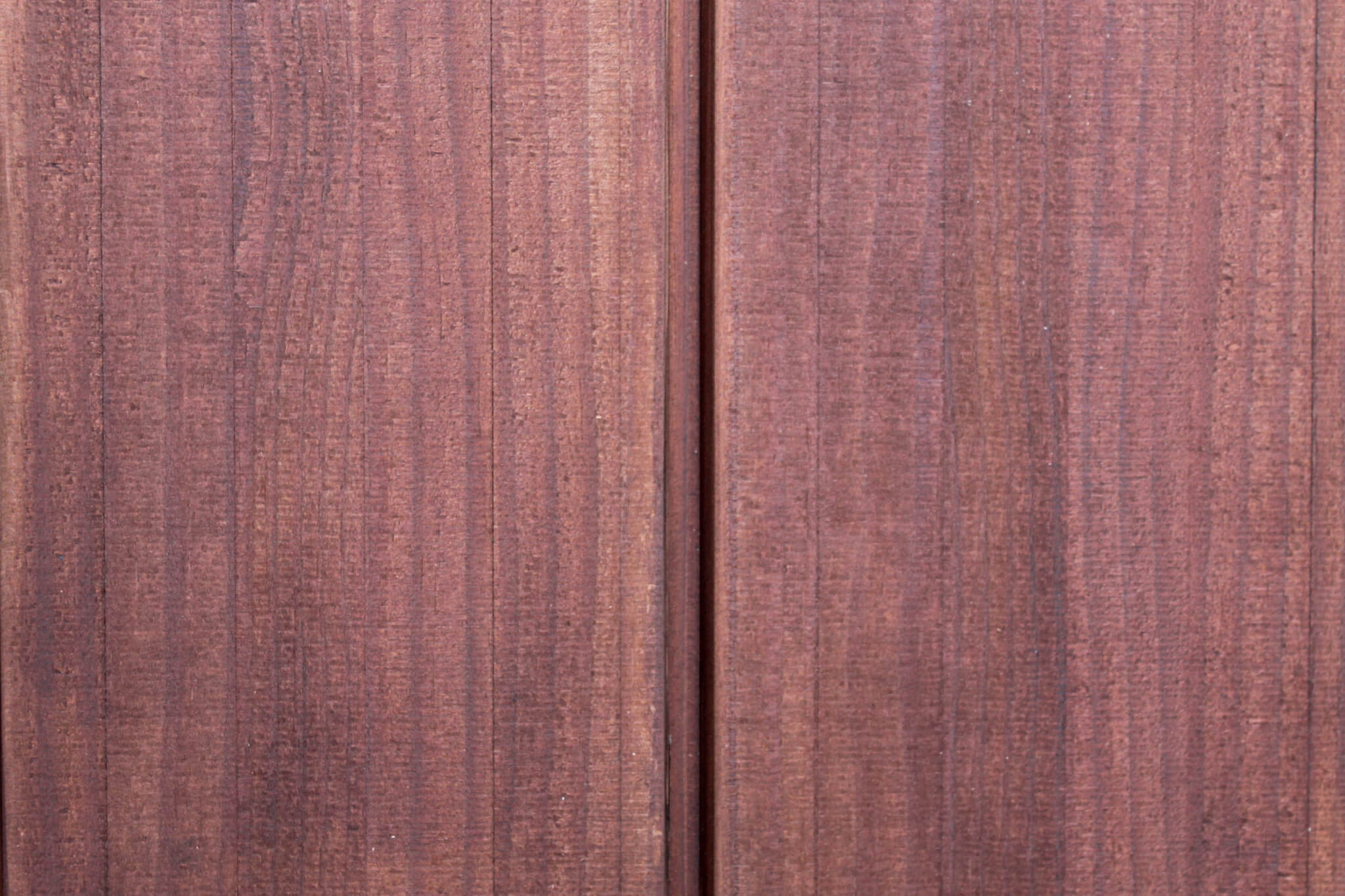

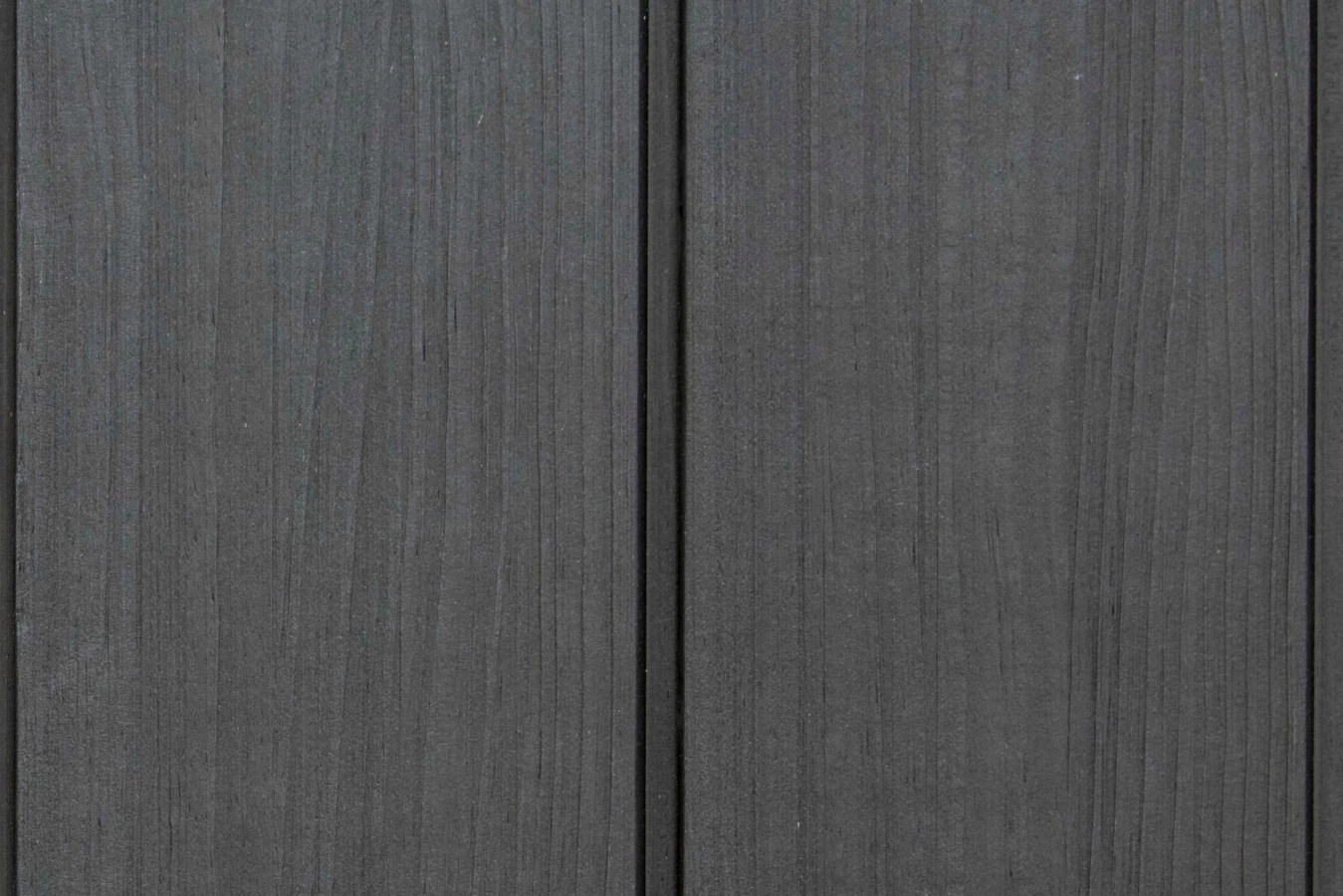

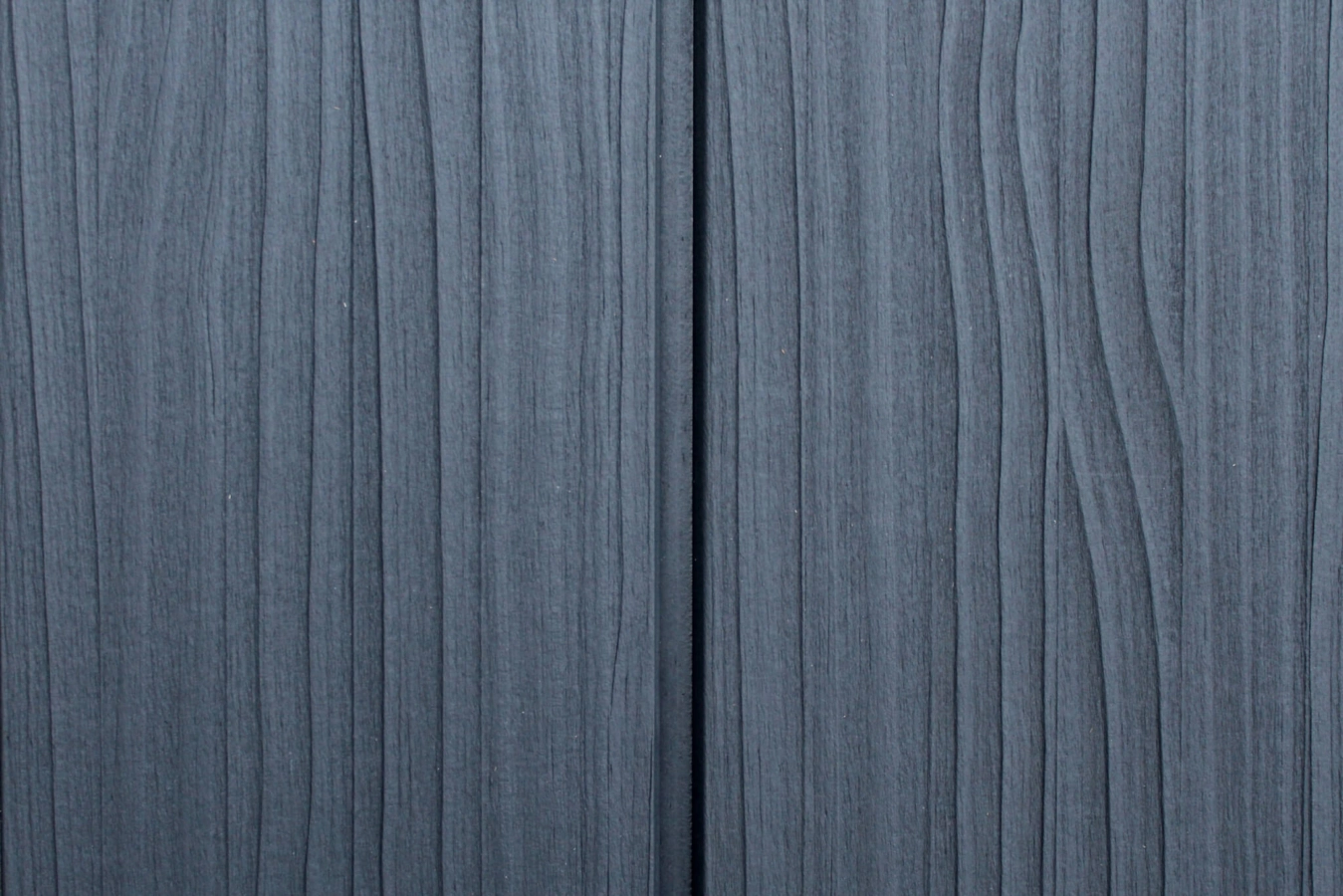

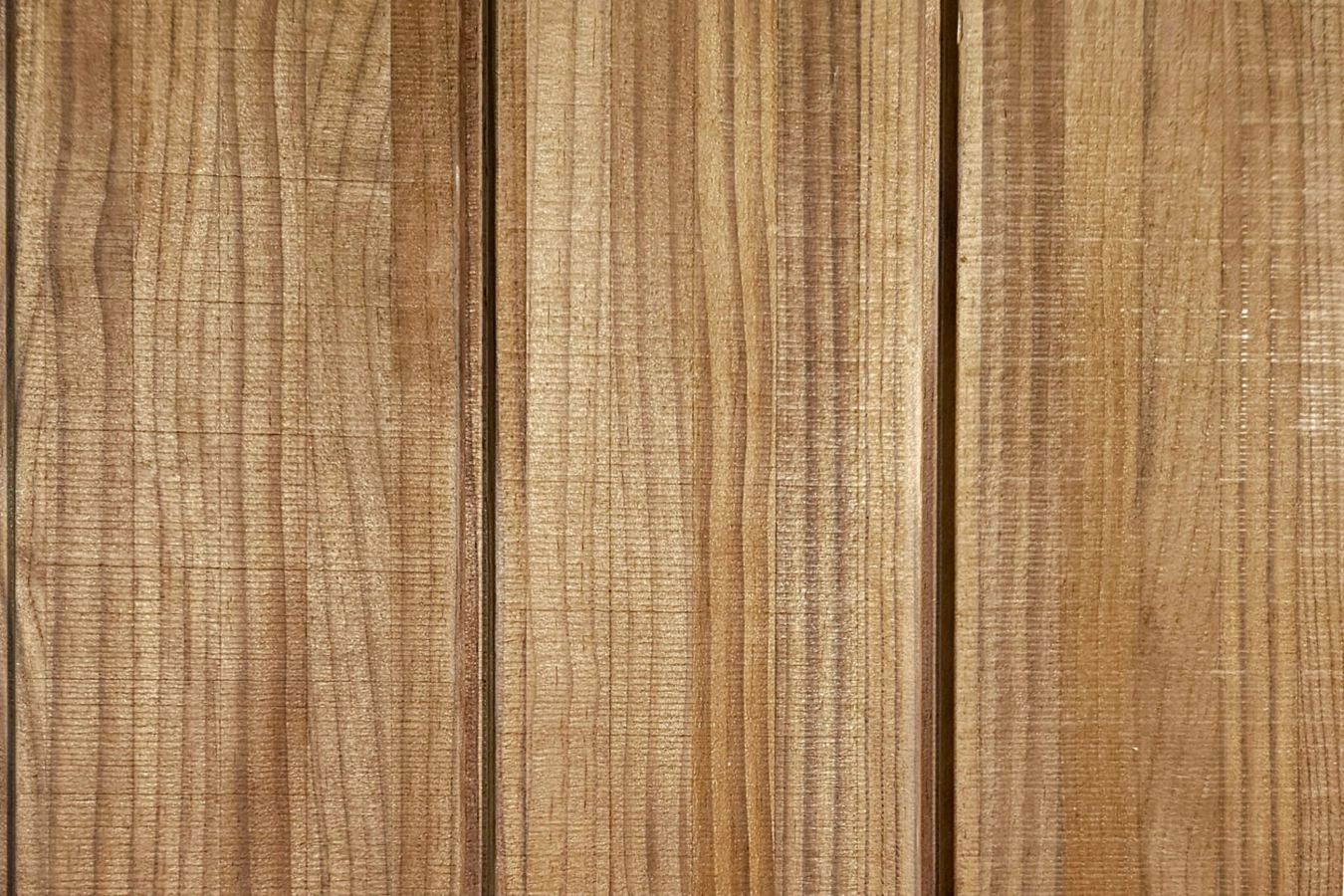

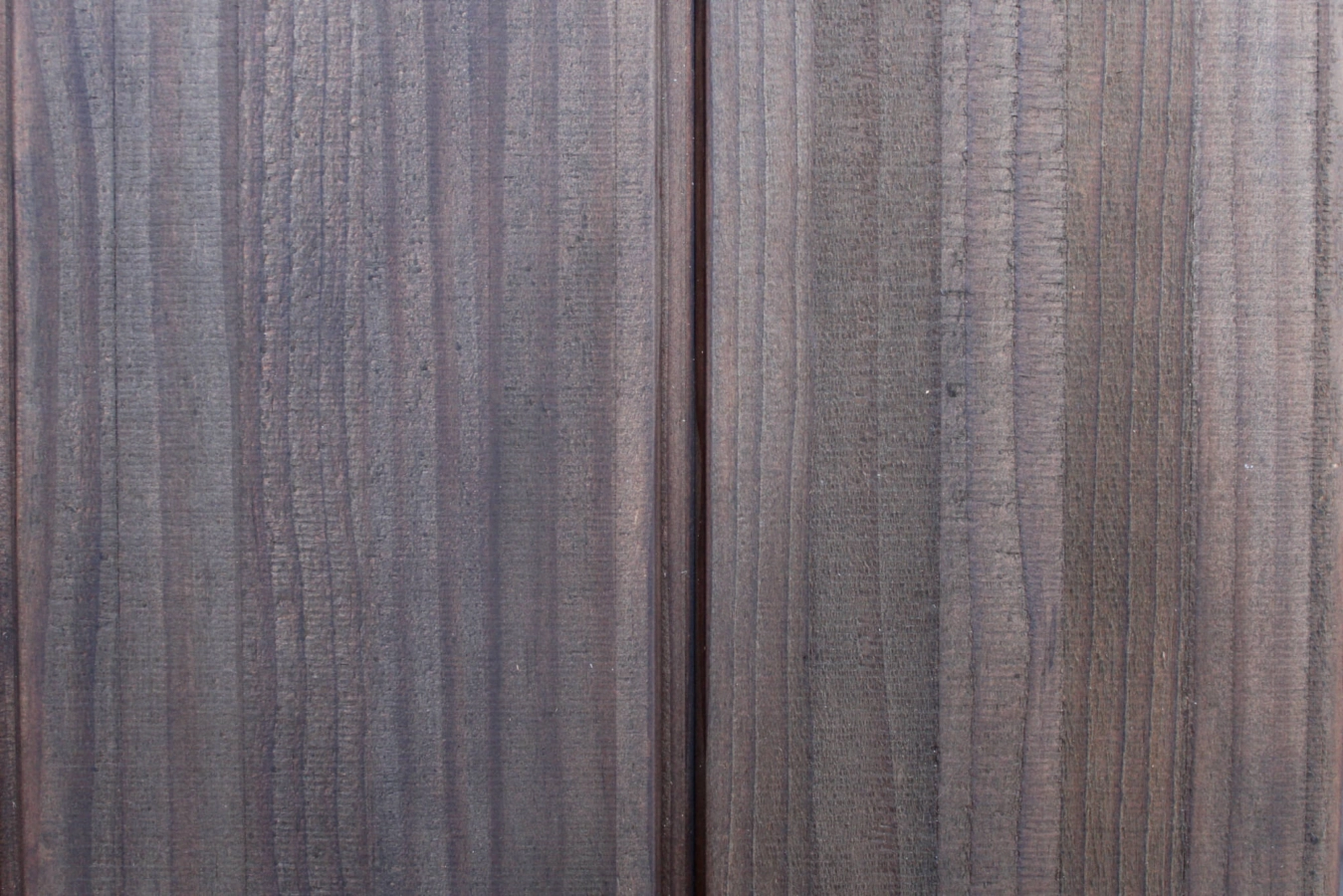

Finish Options

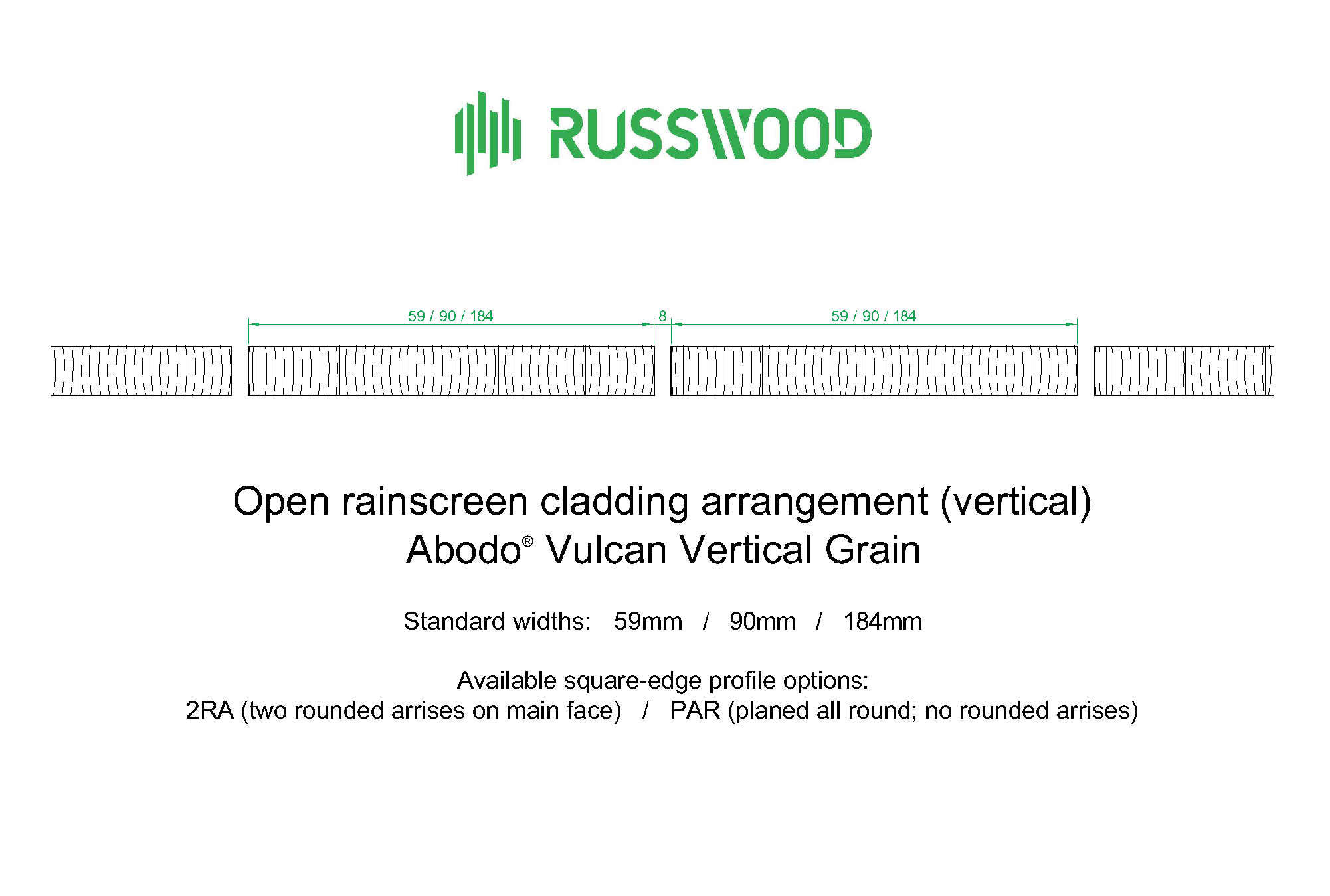

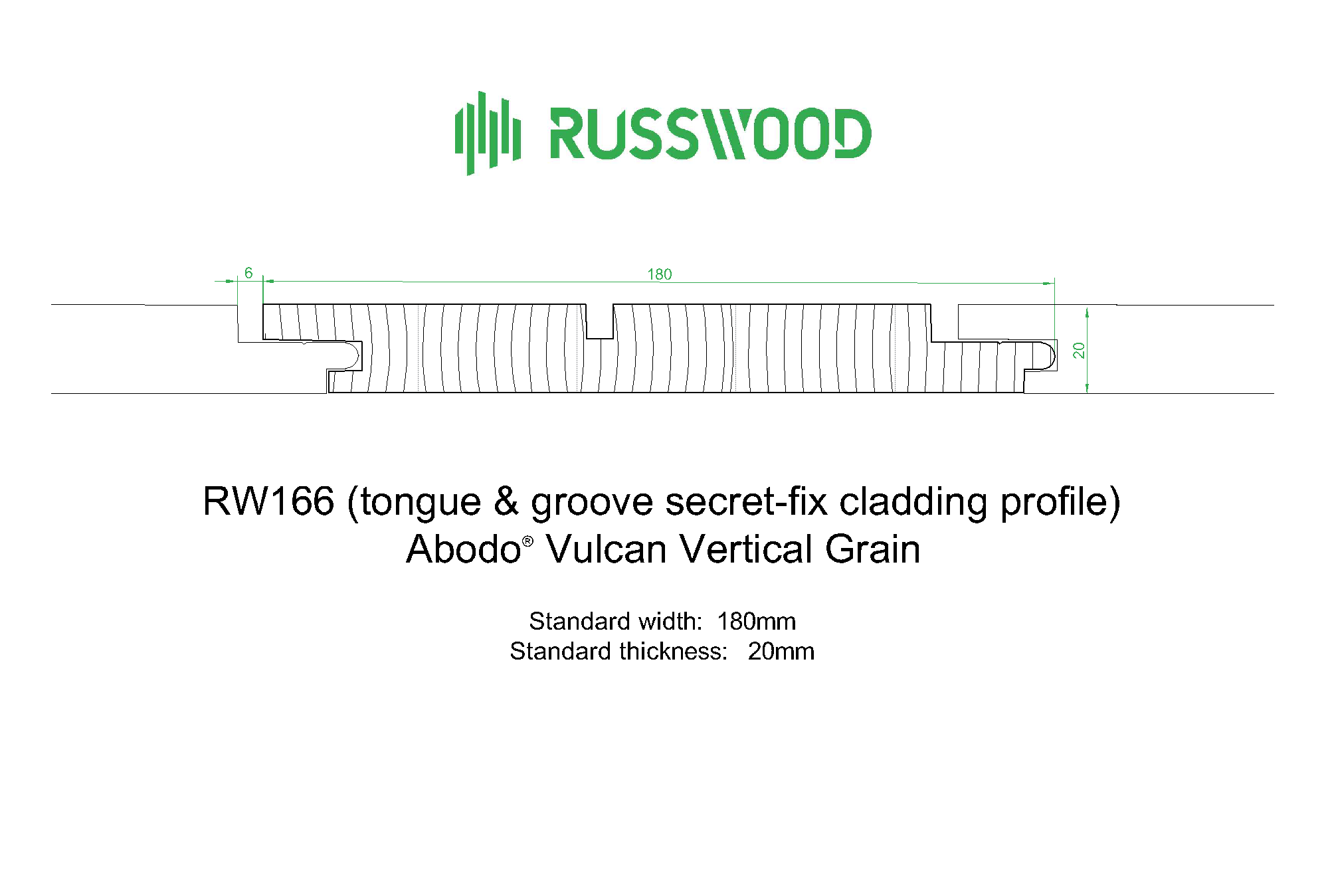

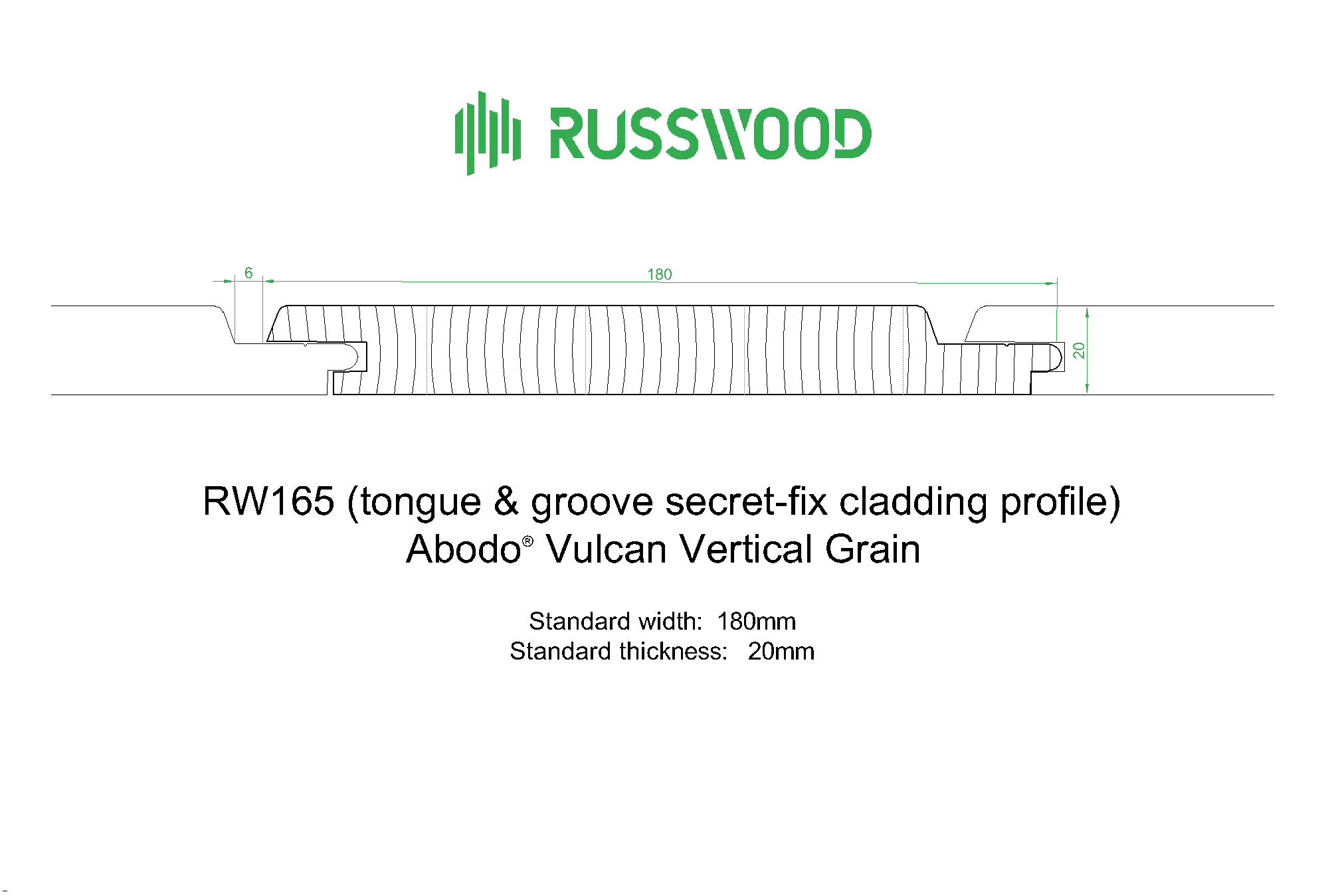

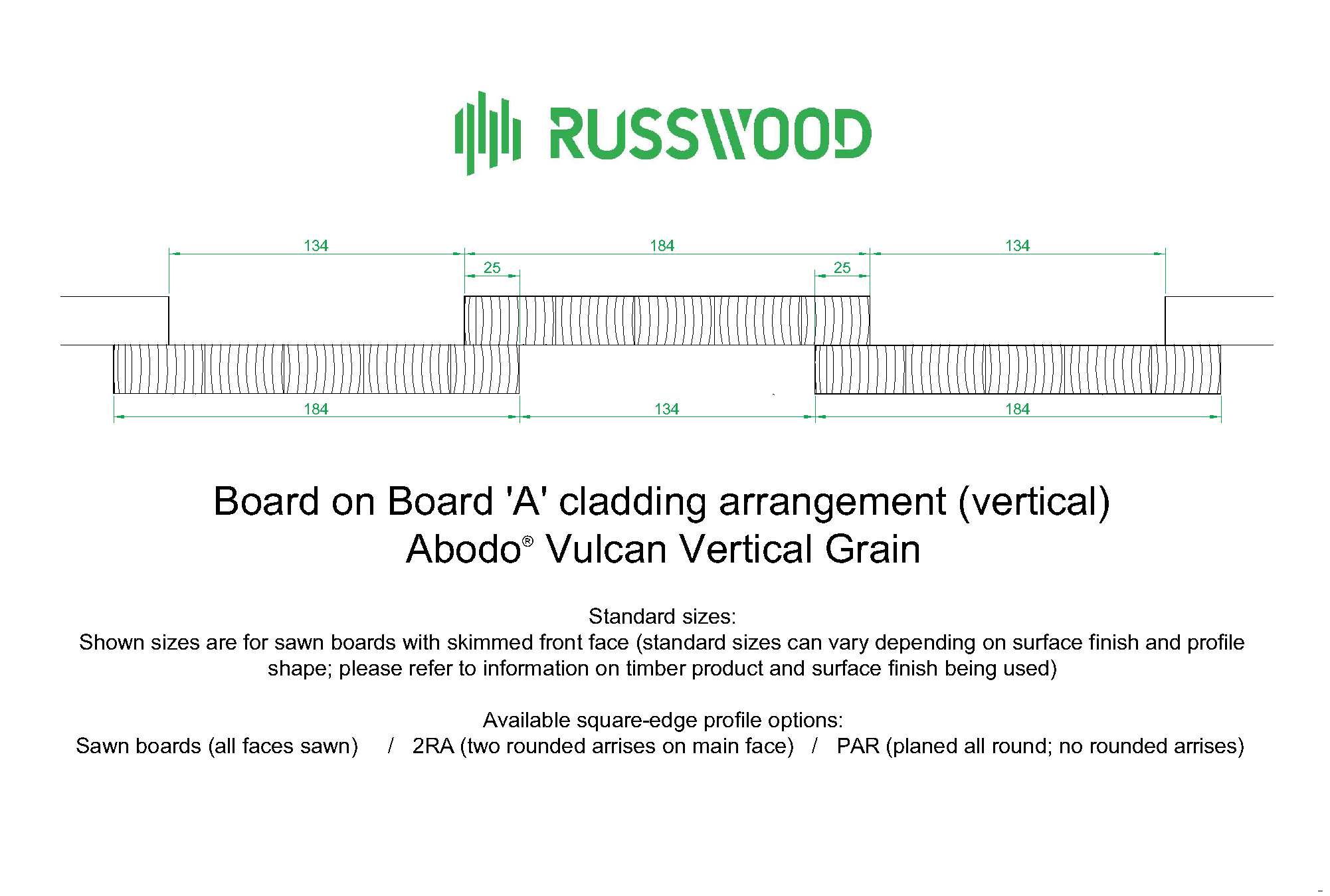

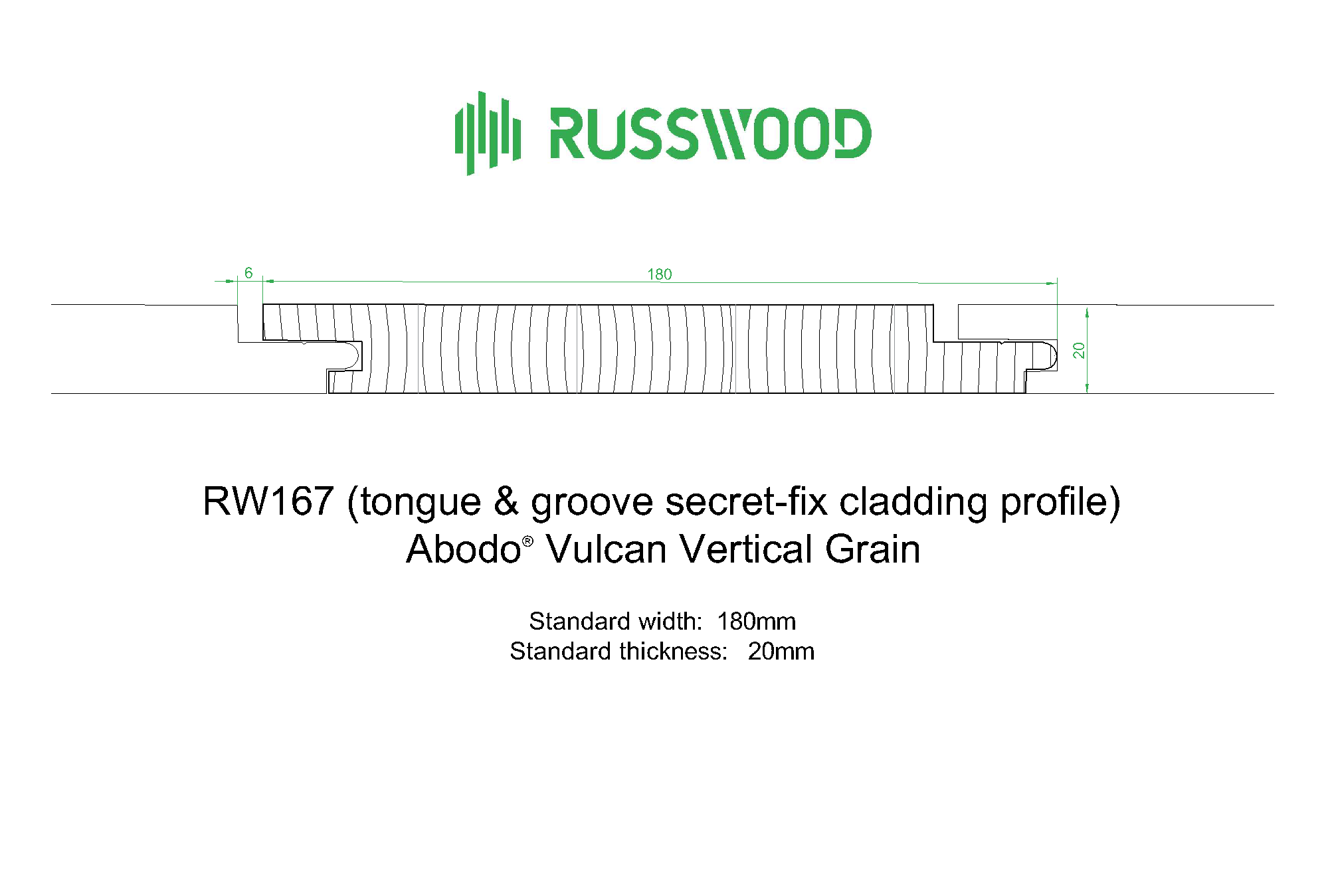

Profile options

Choose from the following Abodo face-fix and secret-fix profiles. Available in various lengths, including fixed lengths, to suit your project needs.

We offer a limited range of stock profiles, available in select finishes for projects which require a shorter lead time. Please note that additional processes like coatings will extend lead times on these products.

Recommended fixings

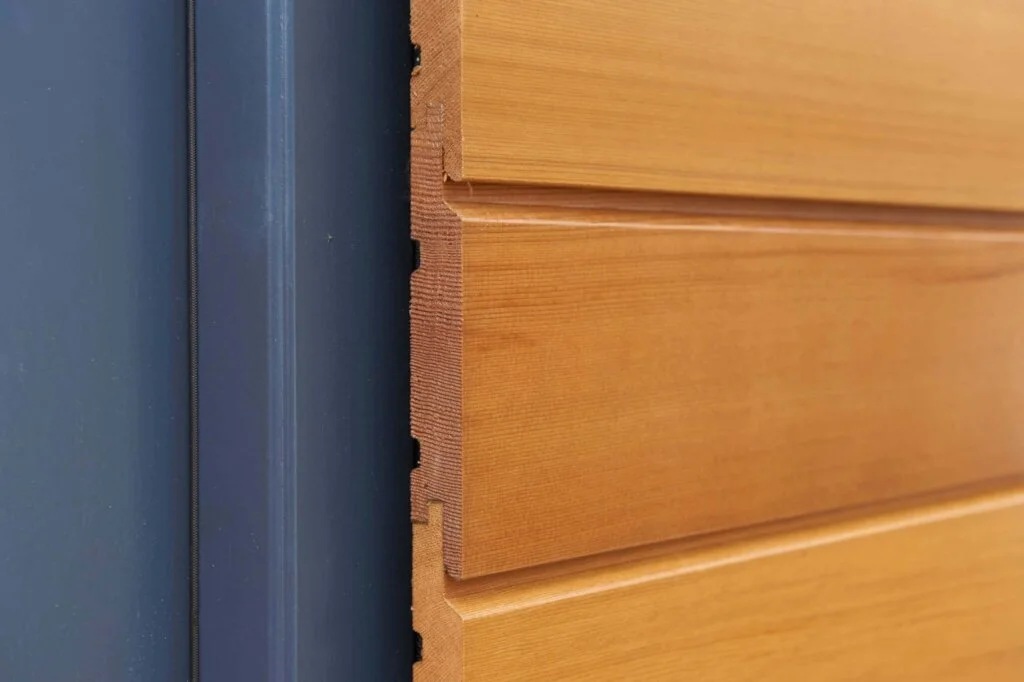

F-BohrFix® ZB Screws

Secret fix

For optimal fastening of tongue and groove cladding.

Learn more

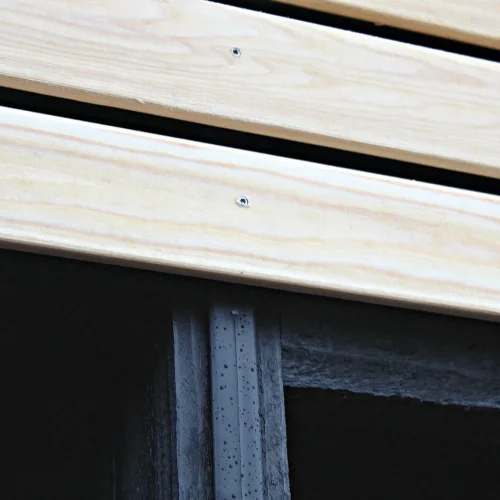

KompeFix®

Face fix

Compensation strip designed to prevent direct contact between timber elements.

Learn more

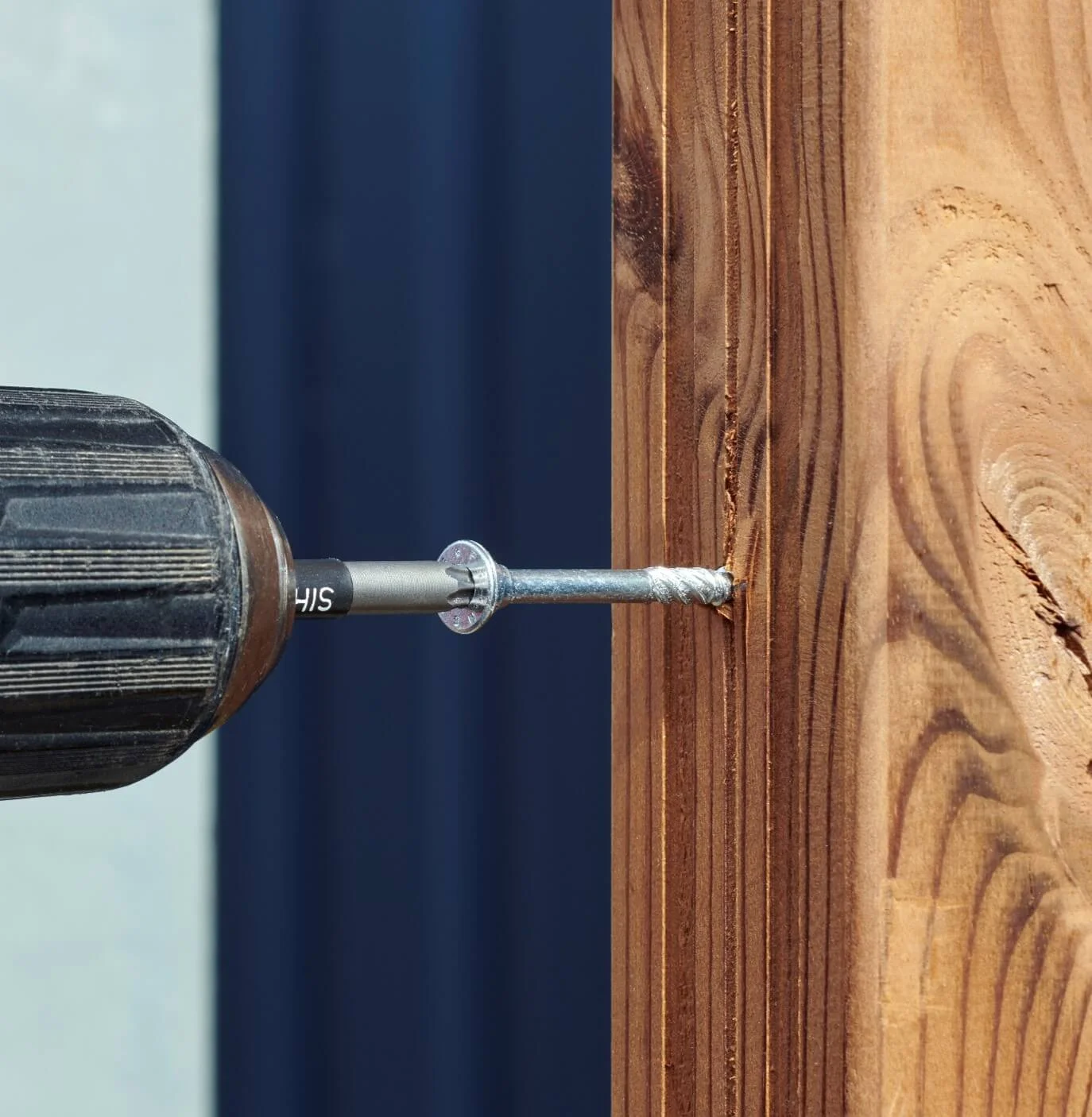

Russwood Battening System

Substructure

Non-toxic, engineer-assessed, method of fixing timber cladding. Circular economy ready.

Learn more

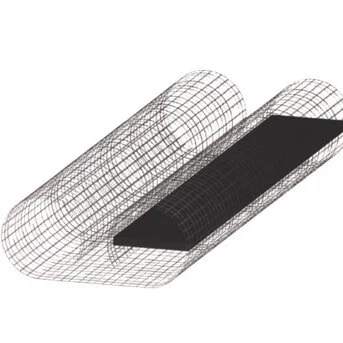

Firebreather® Cavity Barrier

Substructure

Firebreather Cavity Barrier is a patented two component product consisting of a stainless steel mesh and an intumescent strip

Learn more

Frequently asked questions

How much is Abodo Vulcan Vertical Grain cladding?

Uncoated Abodo Vulcan Vertical Grain cladding starts from £90 per m² excluding VAT. Prices are based on a minimum quantity of 50 m² and coatings add an additional cost of approximately £20-25 per m². Prices are subject to change due to the fluctuating prices of timber and should be used as a guide only. For the most up-to-date prices please contact our sales team.

Can you help with NBS specification?

Yes, Russwood’s dedicated Architect Liaison Team can assist architects with selecting the best timber cladding species, coatings and fixings for their projects, ensuring both the performance and aesthetic requirements are met. We can also assist with writing the H21 (external timber cladding) National Building Specification (NBS). Find out more about the services we offer to architects.

How do I order Abodo Vulcan Vertical Grain cladding?

To receive a quotation or place an order, get in touch with our Technical Sales Team who will be happy to assist.

Can I order a sample of Abodo Vulcan Vertical Grain cladding?

Samples can be ordered by contacting our sales team who can assist with selecting the most suitable cladding for your project and send out appropriate samples.

How does Abodo Vulcan Vertical Grain cladding compare to other species?

Our handy Cladding Comparison table allows you to compare species information and timber properties at a glance.

Where do you deliver to?

We offer UK wide delivery on all of our products. Please contact our sales team for a quote.

What lengths are available for Abodo Vulcan Vertical Grain?

We can offer Abodo Vulcan Vertical Grain in various lengths from stock, ranging from 2.4 - 5.7m, to suit your project needs. Fixed lengths are available. Please speak to a member of our cladding sales team for more information

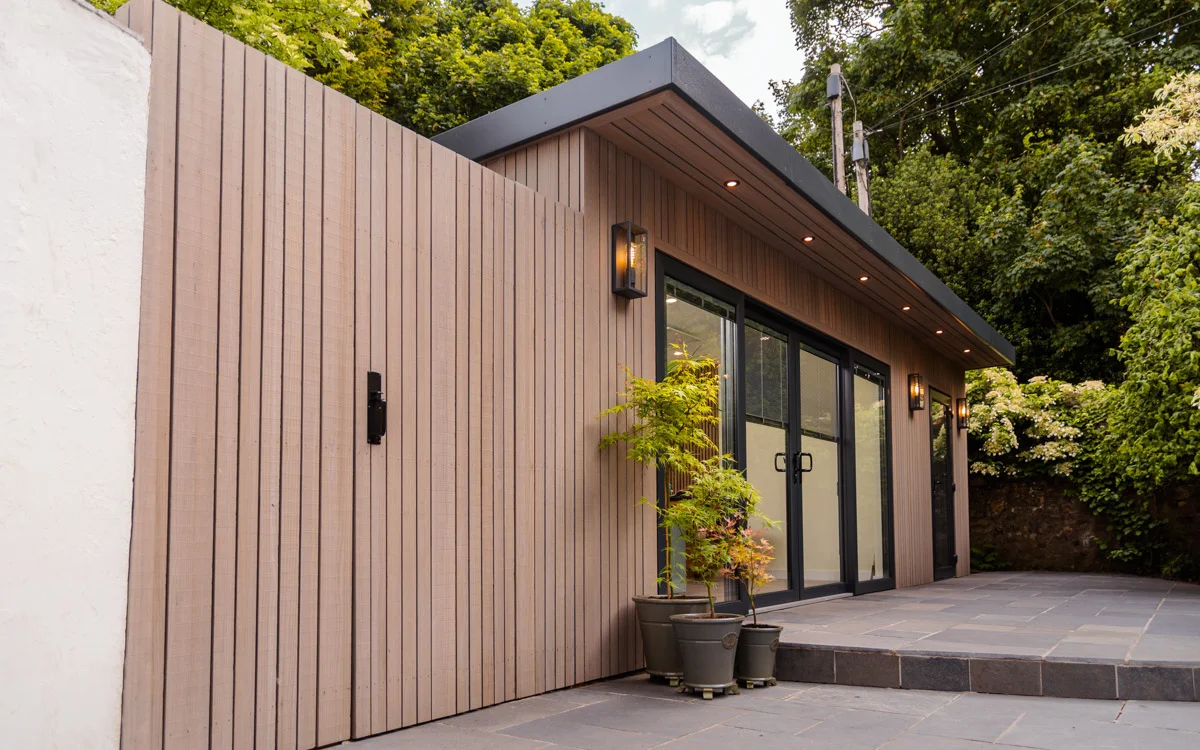

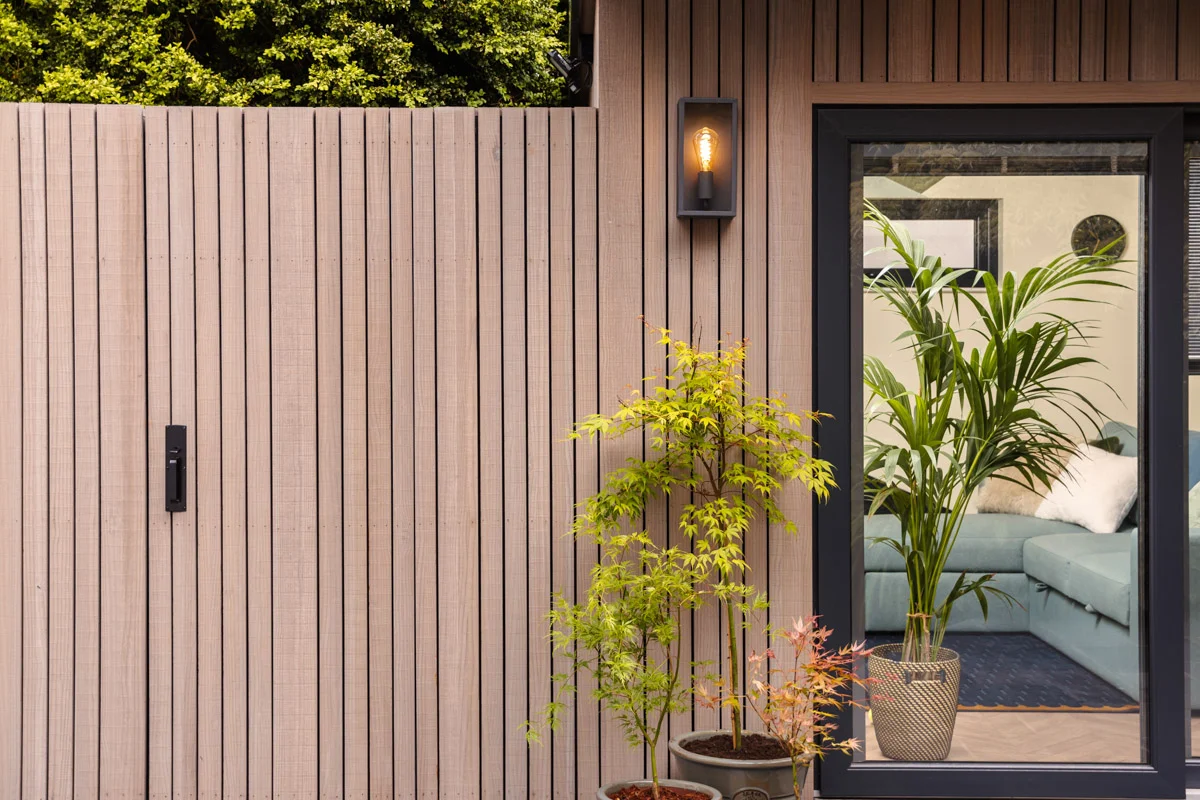

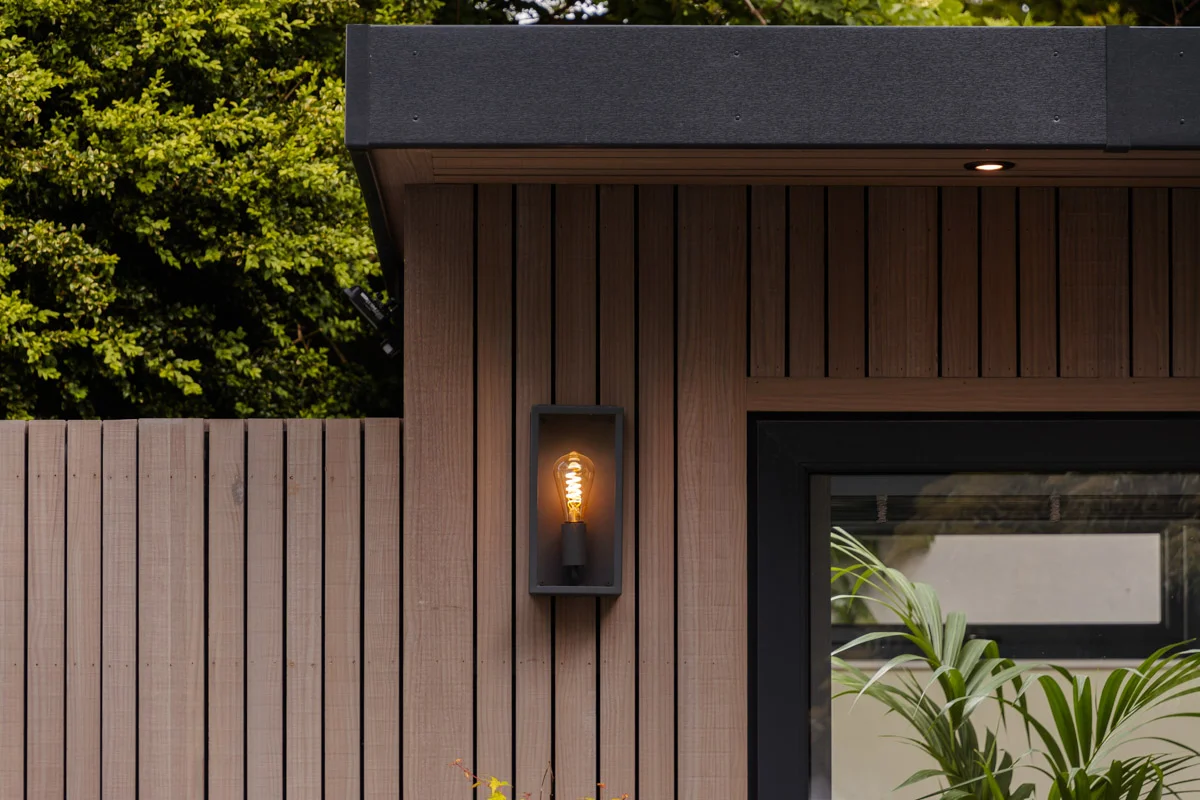

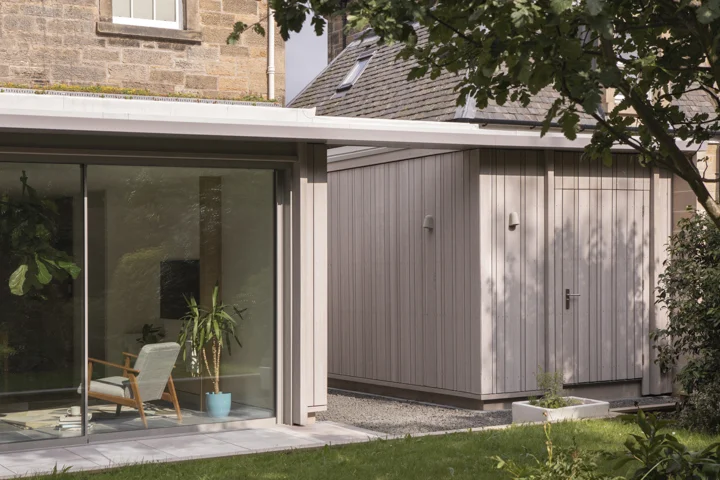

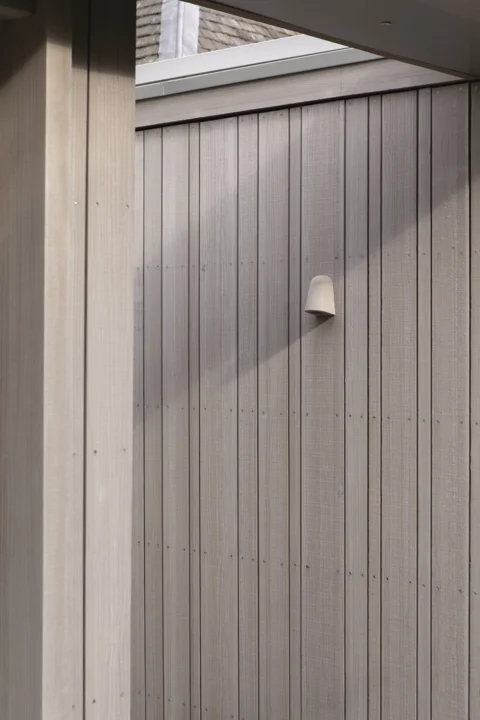

Garden Room, Edinburgh

With an exacting brief and stricter-than-usual planning regulations, Abodo Vulcan Vertical Grain was an easy choice for a garden room in Cramond.
